Specifications

• Supported discs: SACD, CD (CD-R, CD-RW, MQA-CD)
• Supported sampling frequencies
  • USB input (PCM): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit)
  • USB input (DSD): 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit)
  • Coaxial / Optical input: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)
• Analog output voltage / impedance
  • Unbalanced: 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω
  • For SACD / DSD: 2.3 V
• Frequency response
  • CD: 5 Hz to 20 kHz (+0, -1.0 dB)
  • SACD: 5 Hz to 38 kHz (+0, -3.0 dB)
  • USB: 5 Hz to 47 kHz (+0, -3.0 dB)
• Total harmonic distortion
  • CD: 0.0016 %, SACD : 0.0007 %, USB : 0.001 %
• S/N ratio (IHF-A)
  • CD: 122 dB, SACD: 125 dB, USB : 122 dB
• D/A converter: ROHM BD34301EKV (monaural mode) x 2
• Power supply: 230 V～(50 Hz) / 115 V～ (60 Hz)
• Power consumption: 37W
• Dimensions: 440(W) x 132(H) x 410(D) mm
• front side knob of 2 mm and rear side terminal of 8 mm included in depth
• Net weight: 17.0 kg

Accessories:

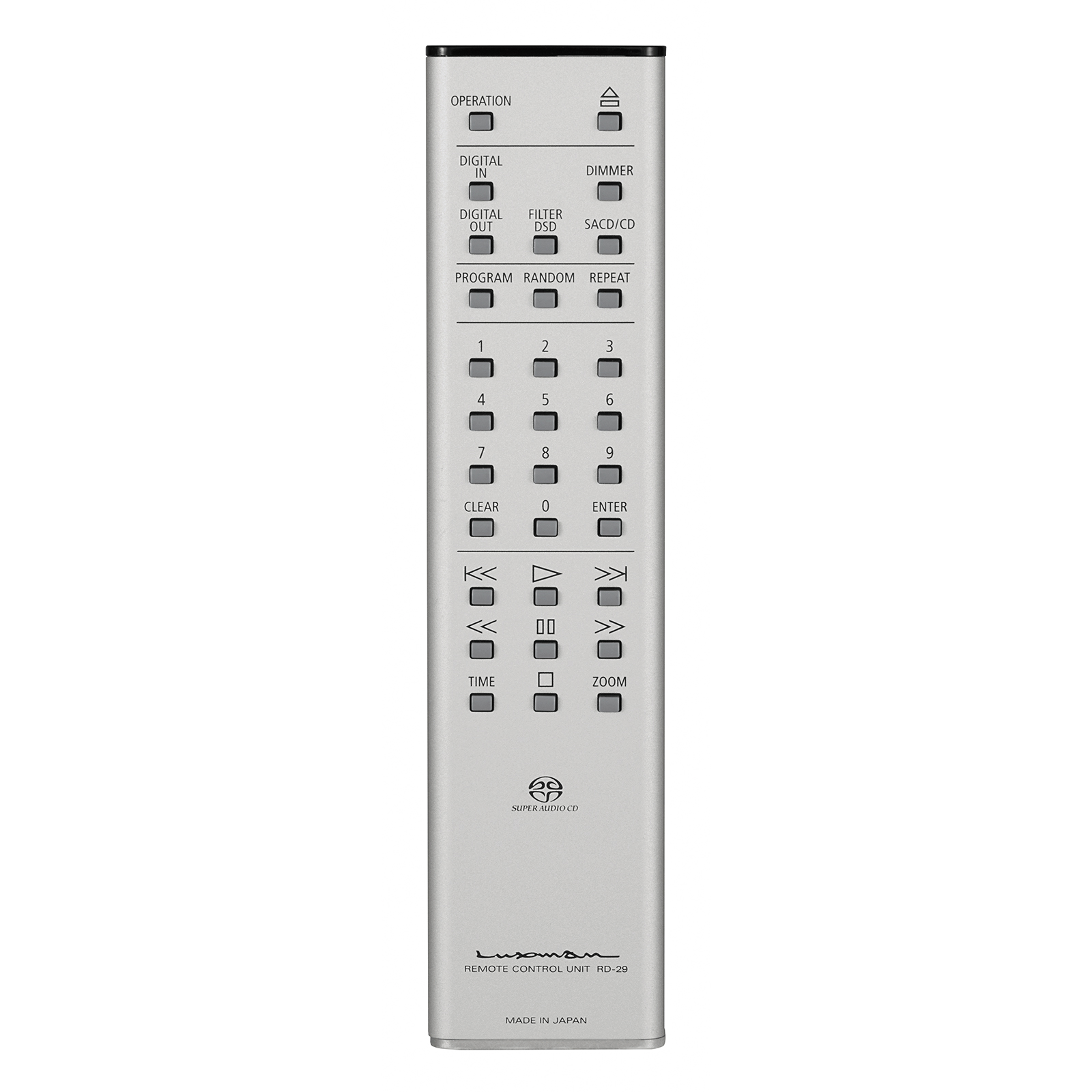

• Remote control (RD-29)
• Power cable
