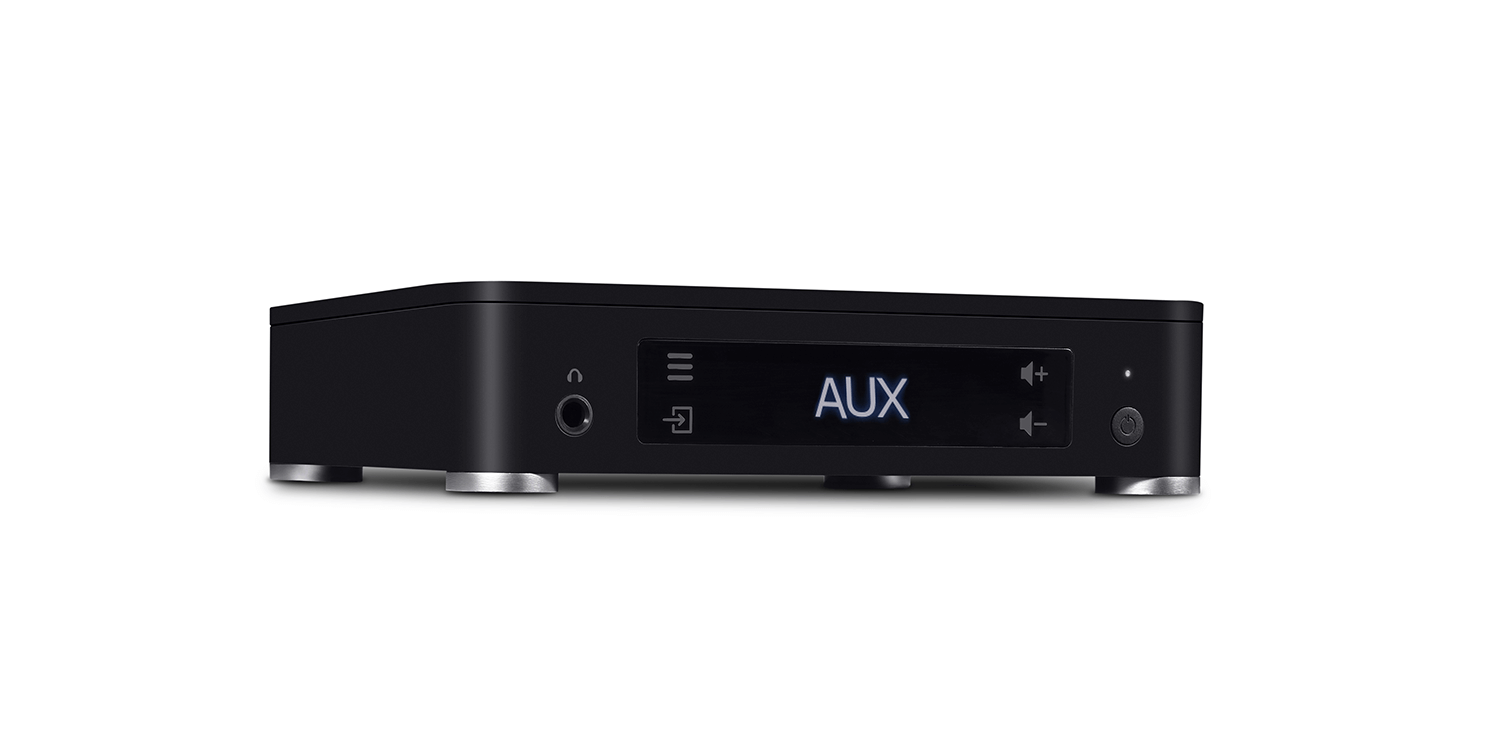

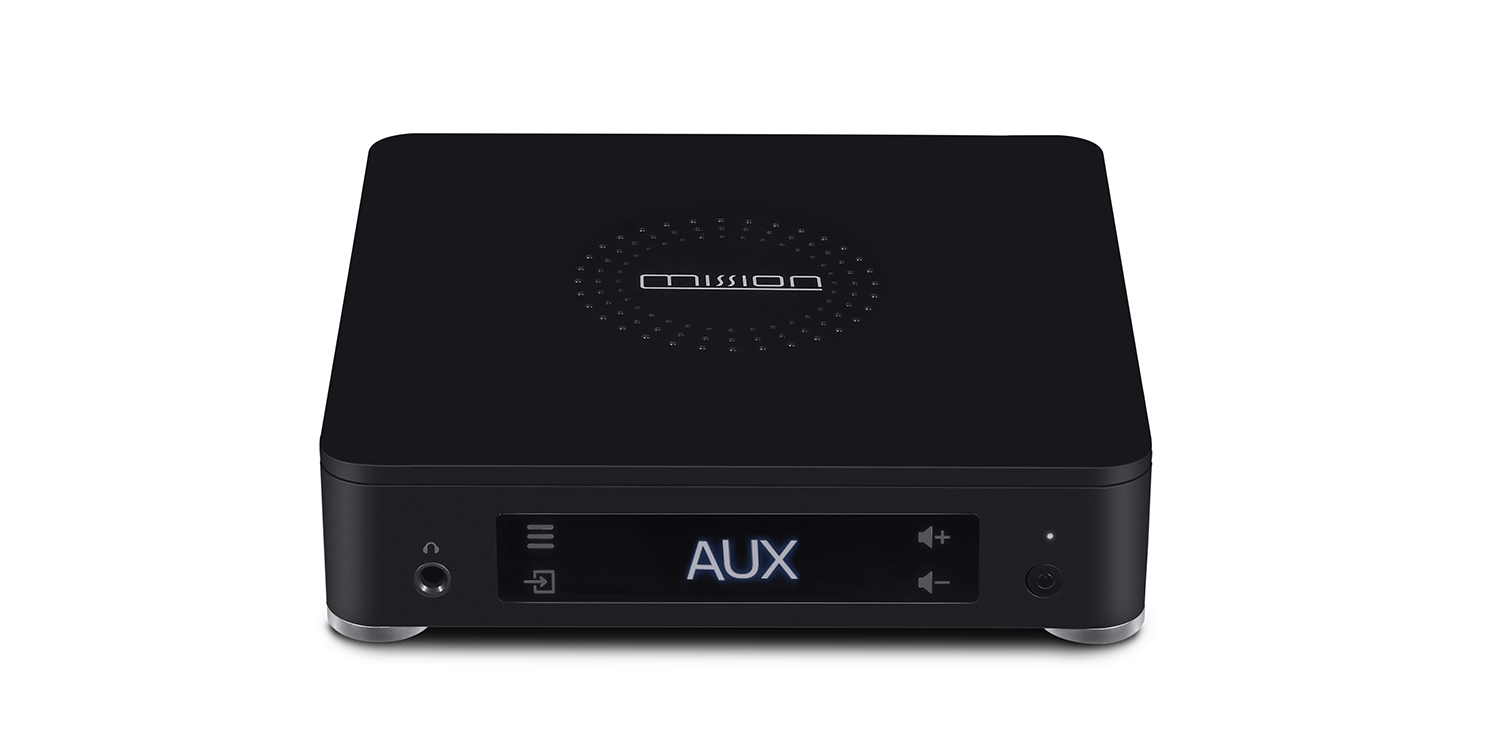

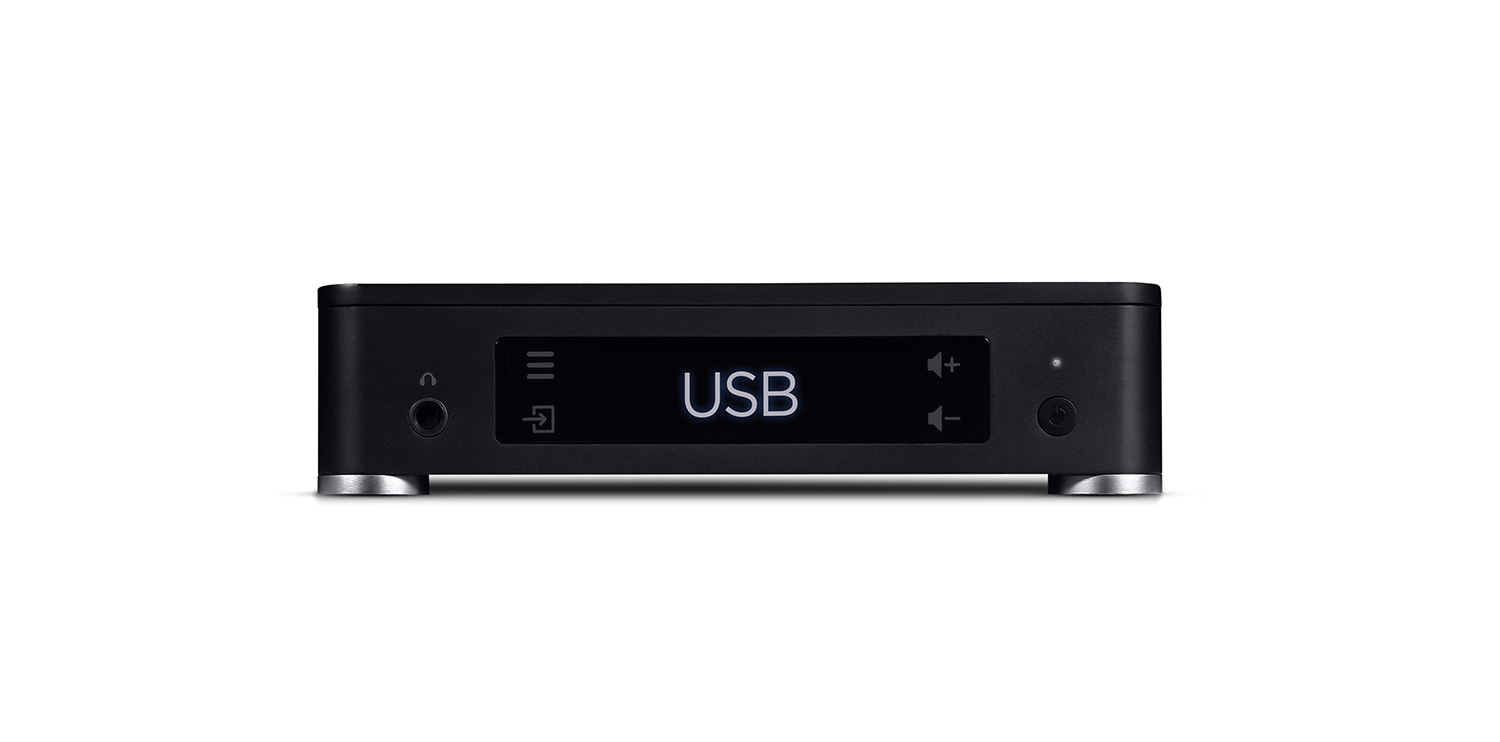

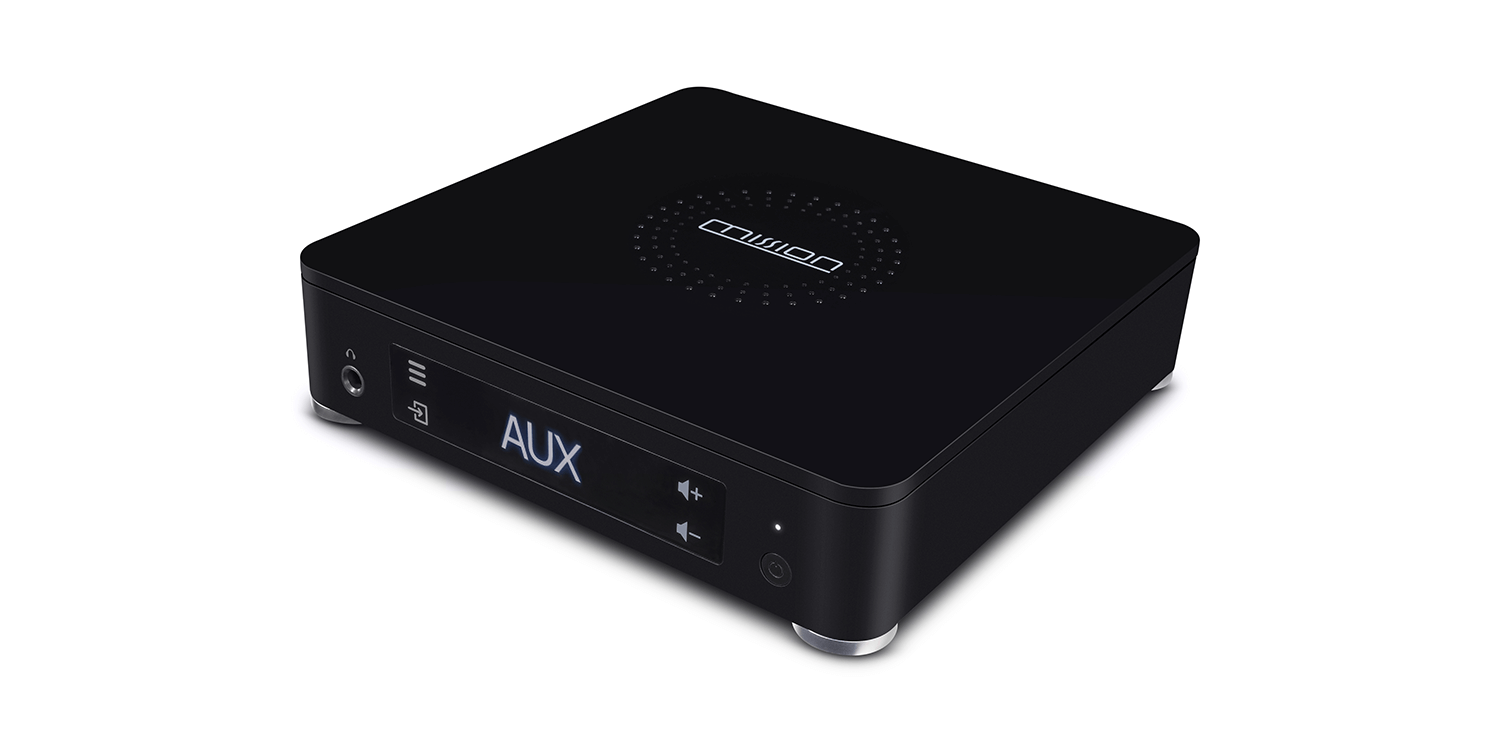

Mission LX Connect DAC

Hinta

399,00 (sis. alv)

Toimitusaika: 2 viikkoa tai enemmän

Mission LX Connect DAC on DA-muunnin, esivahvistin ja kuulokevahvistin samoissa kuorissa. Se yhdistää innovatiivisen suunnittelun ja luokkansa johtavan suorituskyvyn Mission-mantran sanomaan – äänenlaatuun.

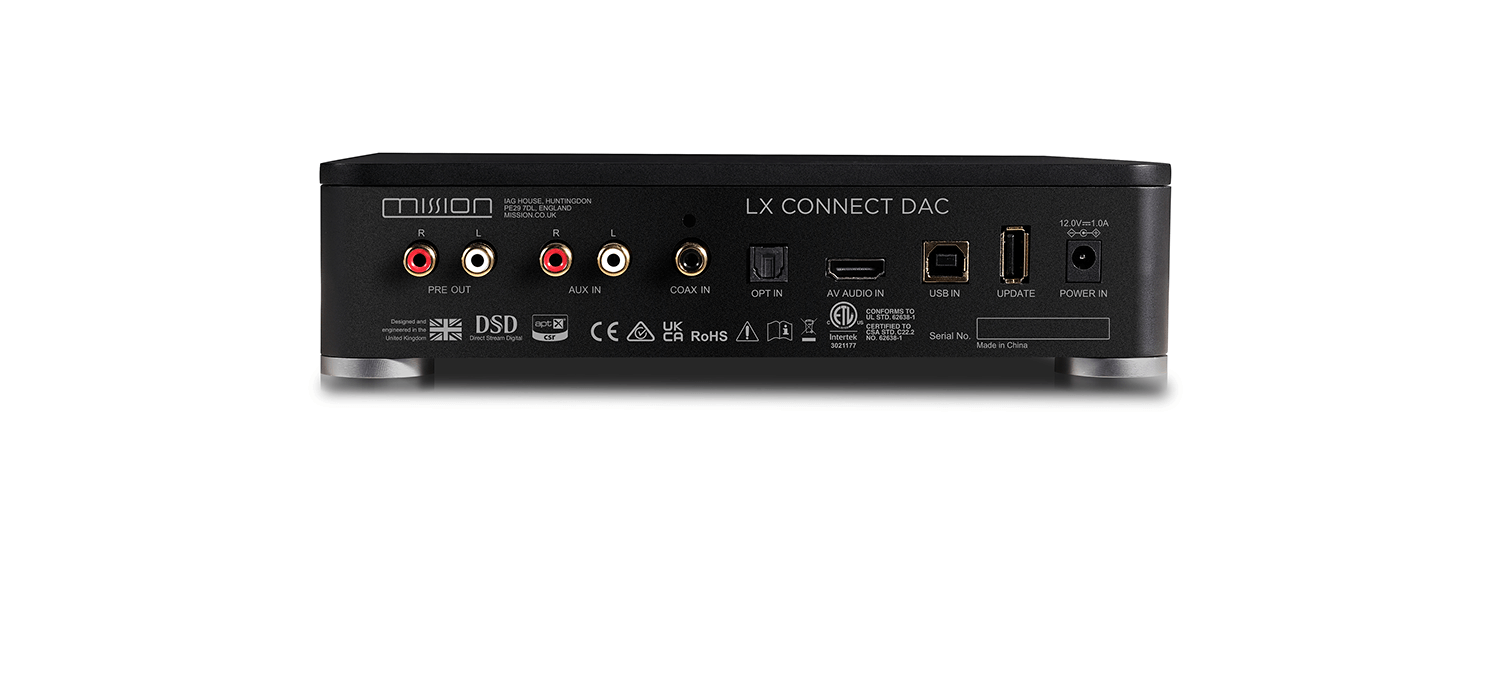

Erittäin monipuoliset liitännät – HDMI ARC, USB, optinen, koaksiaalinen ja analoginen RCA-tulo. Pre out RCA-ulostulo, voit kytkeä LX Connect DAC:n perään aktiivikaiuttimet, päätevahvistimen tai vahvistimen.

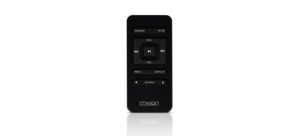

Kauko-ohjain. Ohjaus myös Roonin kautta – Mission LC Connect DAC on virallinen Roon Tested-tuote.



Mission has utilised the audio electronics expertise of sister-company Audiolab, maker of many award-winning DAC and amplifier components, to create the LX CONNECT DAC interface.

It incorporates a high-performance DAC stage based around the ES9018K2M DAC chip, from the Sabre32 Reference family. For ultra-low noise performance and high dynamic range, that ES9018K2M chip is accompanied by proprietary circuitry to make the most of ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator.

The LX CONNECT DAC supports hi-res PCM files up to 32-bit/384kHz over USB and 24-bit/192kHz via the coaxial and optical inputs; DSD (up to DSD256) is also supported over USB. An RCA-stereo output is provided with fixed and variable output options, fed by a high-quality analogue stage.

A high-quality headphone amp is also included, again derived from Audiolab – with its current-feedback circuitry, excellent gain bandwidth and high slew rate, a dynamic and detailed performance with all manner of headphones is assured.

Designed to function as a central console for all your music sources, with analogue, optical and coax digital inputs, the Mission LX CONNECT DAC also features a dedicated HDMI ARC connection to bring high fidelity, true wireless performance for TV, movies and games. It is even equipped with a Bluetooth aptX receiver for wireless streaming of hi-resolution audio from tablets and smartphones. The LX CONNECT DAC is controlled gracefully via the touch-sensitive display, or for even more convenience you can use the included remote. The versatile connectivity options and compact form factor means it can be used as the all-encompassing DAC and pre-amp interface for any amplifier, active speakers, computer audio or head-fi system.

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.

    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.

Specifications

  • Model: LX CONNECT DAC
  • General Description: Digital-to-Analogue Convertor, Headphone Amplifier and Pre-amp
  • Analogue Input: RCA (AUX)
  • Digital Input: OPT, COAX, PC USB, Bluetooth, AV Audio
  • Analogue Output: RCA Pre Out

Pre Amplifier:

  • Input Sensitivity: 300mV (AUX IN, volume = MAX)
  • Input Impedance: 13K (AUX IN)
  • Variable Output Voltage: 0 – 3.2V
  • Output Impedance: 100 ohm
  • Frequency Response: 20Hz-20kHz (+/-0.3dB)
  • Signal-to-noise Ratio (S/N):
    • >100dB (AUX IN, A-weighted)
    • >110dB (digital Inputs, A-weighted)
  • Total Harmonic Distortion:
    • < 0.001% (digital sources)
    • < 0.005% (analogue sources)
  • Sampling Rate:
    • 24bit – 192kHz (OPT, COAX)
    • 32bit – 384kHz (USB, PCM), 2.8M for DSD64, 5.6M for DSD128, 11.2M for DSD256 (USB, DSD)
    • Digital Filters: Fast Roll-off, Slow Roll-off, Minimum Phase

Dimensions:

  • Height (on feet): 55mm
  • Width: 225mm
  • Depth (with terminals): 231mm
  • System:
  • Outer Packaging: 418 x 280 x 85mm
  • Net Weight: 1.75kg
  • Power Requirements: Adapter – Input: 100-240Vac (50/60Hz) Output: 12V 1A

väri: musta
