MSB Technologyn uusi mestariteos. Huipputason DAC, etuvahvistin analogisilla sisääntuloilla ja erillinen järeä virtalähde.
The Digital Director pitää sisällään kaikki digitaaliset toiminnot, isokokoista LED-näyttöä myöden. Yli 4-kertainen prossointiteho vrt.aikaisempiin MSB-muuntimiin. Täysin uudet digitaalifiltterit varmistavat täydellisen äänikuvan, äänen tekstuurin, nyanssit ja hologrammimaisen läpinäkyvyyden ja käsinkosketeltavuuden. Täysin häiriöiltä eristetyn Cascade-Linkin kautta signaali ohjataan The Analog Converteriin.

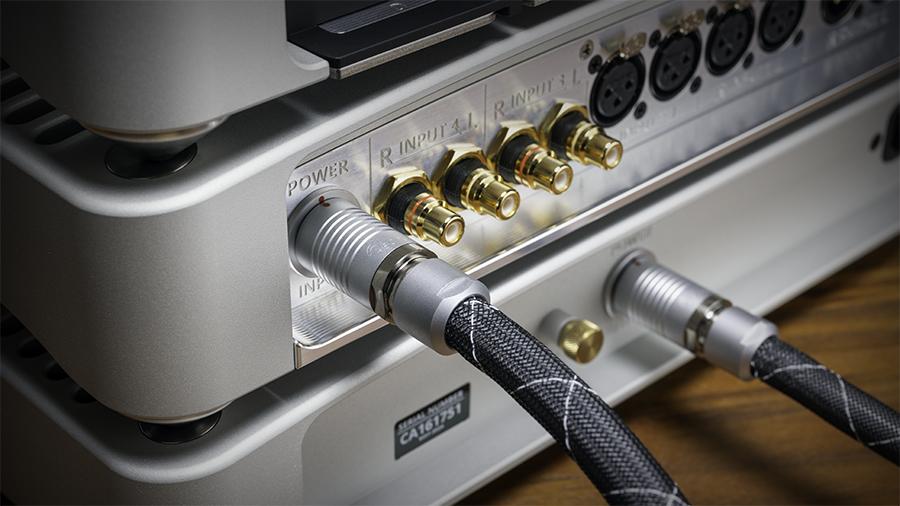

The Analog Converter pitää sisällään peräti 8 x uusia MSB Hybrid DAC II- moduleita sekä uusimman huippukellon – Femto 33 MK III. Lisäksi neljä analogista sisääntuloa; 2 x balansoitu XLR ja 2 x RCA esim.vinyylisoittimesi esivahvistimelle. Huippuluokan äänenvoimakkuustoteutus ja balansoitu 75ohm ulostulo päätevahvistimellesi.
The Powerbase on huippuluokan virtalähde syöttämään The Analog Converteria.
MSB:n modulaarirakenne mahdollistaa liitäntäpuolen varustamisen yksilöllisten tarpeidesi mukaan ostohetkellä ja päivittämisen tulevina vuosina. Saatavissa mm. The Network Renderer V2-striimausmoduli, Pro USB-, USB-, Pro ISL-, AES/EBU-, optical/coaxial- ja Dual Pro i2S-modulit.
The Network Renderer V2-striimausyksikön avulla saat kohtuuhintaan huippuluokan verkkosoittimen The Cascade DAC:n yhteyteen – ohjaus kätevästi kehittyneimmän alustan eli Roonin avulla.
The MSB Remote on käteensopiva, huippumukava, alumiinirakenteinen ohjain, joka toimii erinomaisesti lähes joka sunnasta neljän signaalilähettimen ansiosta.

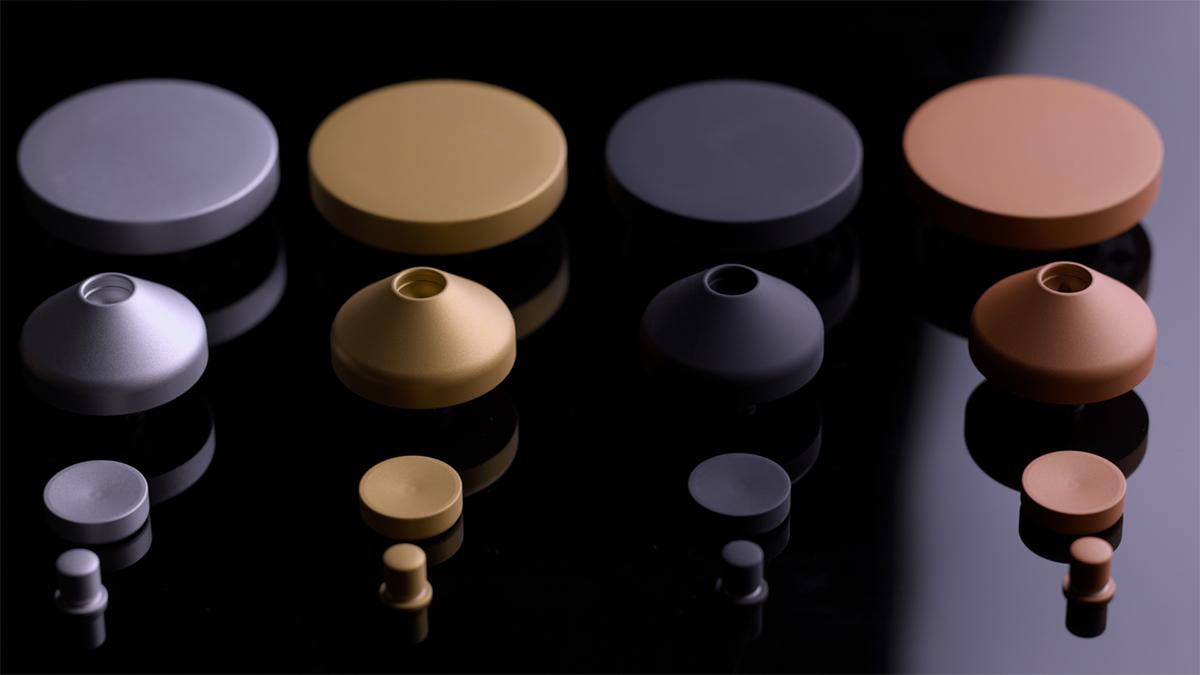

Musta ja hopea viimeistely. Kustomoitavissa erikoistilauksesta myös muilla nuppi-, nappi- ja jalkaviimeistelyillä.
Käsityönä Kaliforniassa, USA:ssa valmistettu The Cascade DAC on unelmiesi täyttymys ääneltään ja toteutukseltaan.

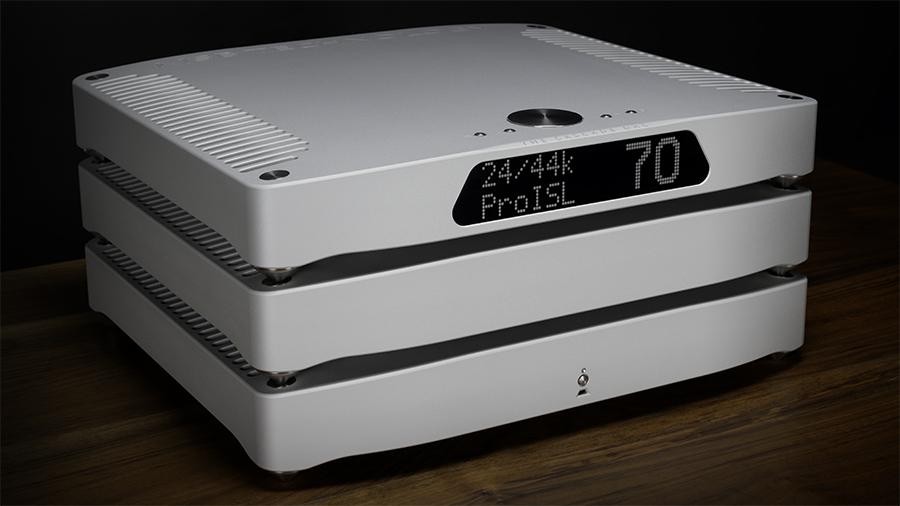

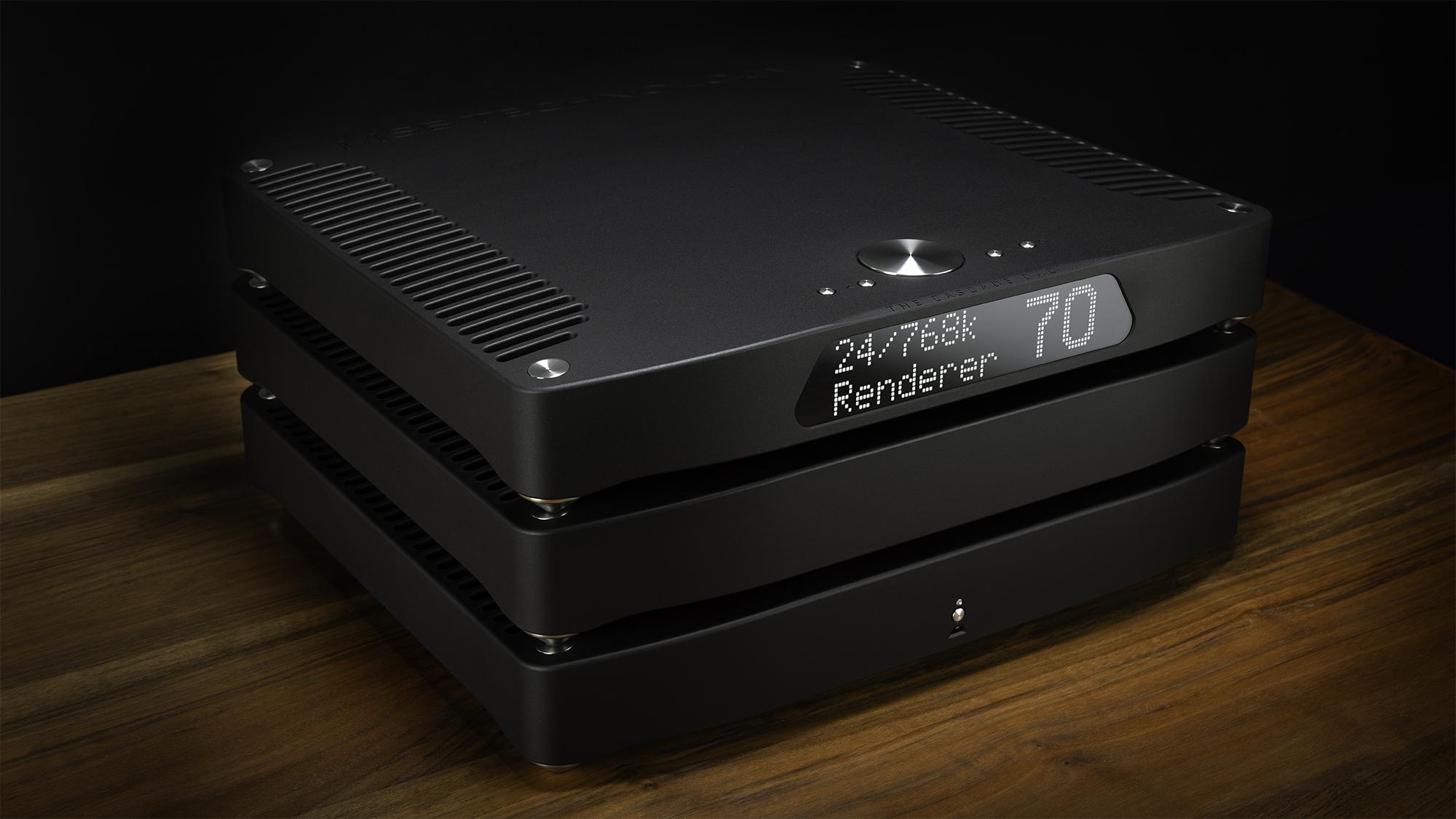

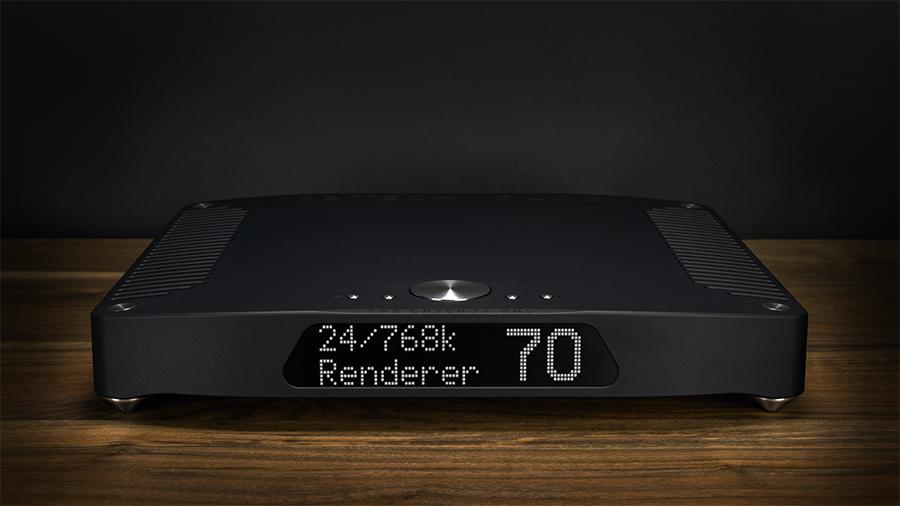

The Cascade DAC was born of an unwavering dedication to perfecting our craft, enabled by our enthusiasm for in-house design and vertically integrated manufacturing. This starts a new era—one built on twin foundations of innovation and experience. We began by reimagining the fundamentals of known DAC architectures from the ground up. Critical to the success of the Cascade DAC has been dividing the conversion process into three dedicated chassis and functions. First, all of the processing, sources, and interfaces that are necessary, but electrically noisy, have been concentrated in the Cascade Digital Director. Next, all of the critical low noise analog electronics have been housed in the Cascade Analog Converter. Finally, all of the analog power supplies have been moved to the dedicated Cascade Powerbase. This ideal component division enables sublime analog playback in nearly any system and listening environment. Let’s dive deeper into these building blocks to explore the industry leading technologies involved.

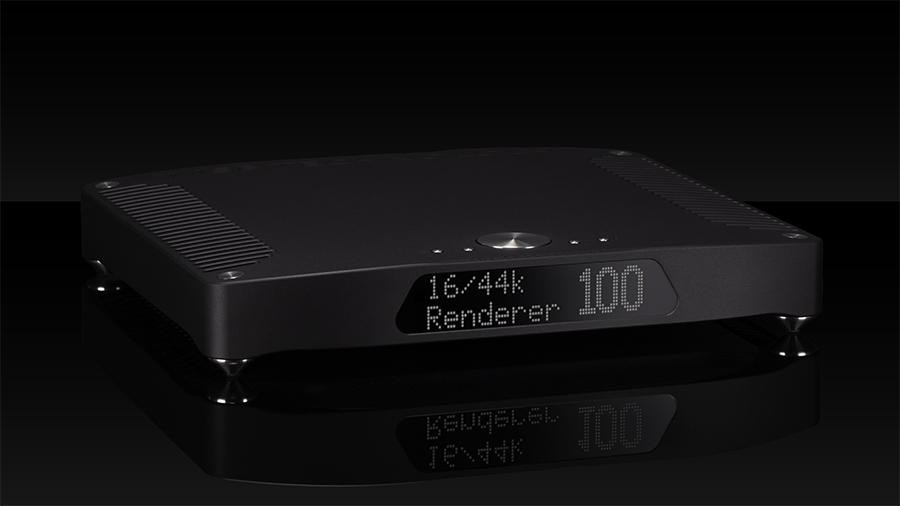

Part 1: The Digital Director

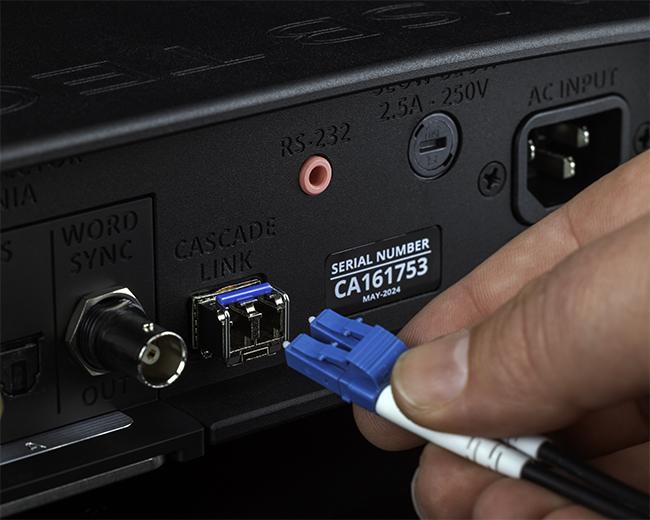

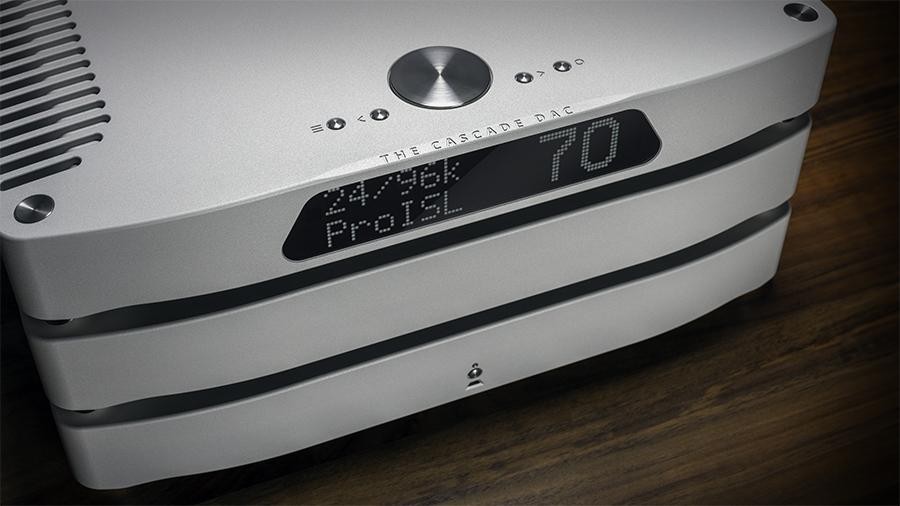

The Digital Director is the brain of the Cascade system, handling all the digital processes. It acts as an intermediary between digital players, transports, renderers, servers, computers, and the analog domain. It is able to identify, configure and process nearly any digital format with advanced new algorithms for faithful reproduction. It features a low noise linear power supply, elegant user controls, and a high visibility discrete LED display, along with user installable digital input modules. It then outputs a conversion ready signal over the fully isolated optical Cascade-Link to the Cascade Analog Converter. This allows you to easily place the Digital Director anywhere in your system with the reassurance that the analog processes are free of digital interference.

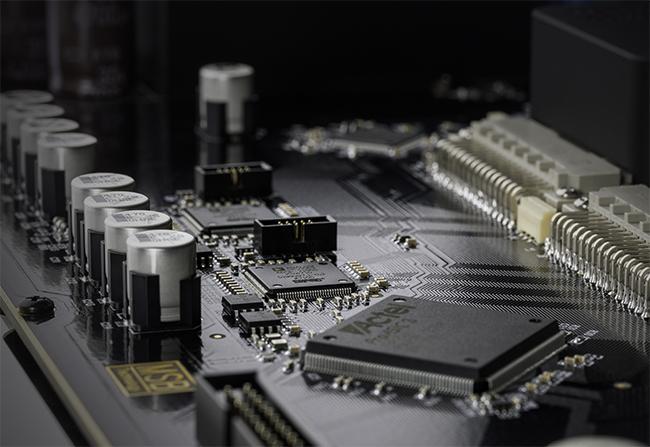

In order to push our audio technology even further, the Digital Director uses two high performance DSPs, each capable of sustaining 12 billion operations per second that work in tandem with two dedicated FPGAs. This is more than 4x the power of our previous generation of DACs. But that’s not all: advanced new digital filters, born from decades of research and development and tailored specifically for the Cascade DACs hardware, ensure that the Cascade DAC offers a superior, authentic reconstruction of the original analog signal. This increased processing headroom allows for a more expansive soundstage with even more beautiful textures from complex performances such as massed horns, vocals, close mic’d pianos, large ensembles, and full orchestras, regardless of the format. What emerges is the most natural and emotional presentation we’ve ever created.
Part 2: The Analog Converter
If the Digital Director is the brain behind the Cascade System, the Analog Converter is the beating heart. With 8 New Hybrid DAC MKII modules, a Femto 33 MKIII Clock, passive analog stages, and 75 ohm volume controls, the Analog Converter makes the music come alive. Freed from the burden of any brute force digital processing, the Analog Converter is supremely adapted for the task of meticulous analog conversion. Digital music flows over the noise free Cascade-Link directly to the hybrid DACs, while stunning analog performances are received by the integrated analog inputs. All formats are carefully converted to MSBs unique fully balanced, constant impedance analog format. This enables an optimal connection directly to your power amplifier.

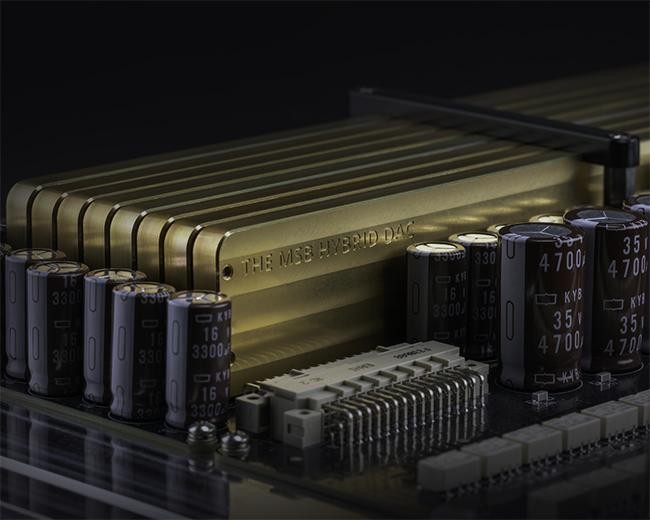

The Hybrid DAC MKII
A new generation of Hybrid DACs allow the Digital Director to extract the maximum resolution from all of your music files and from all data formats. As a fully balanced, ultra-high precision, discrete ladder DAC architecture, it reproduces all of the musicality, soundstage, and texture of the original performance. With 4X the DATA bandwidth of our previous generation, the Cascade DAC brings you reduced noise and improved resolution and linearity, ensuring that all the finest analog musical details are faithfully reproduced—bringing the artist to you.

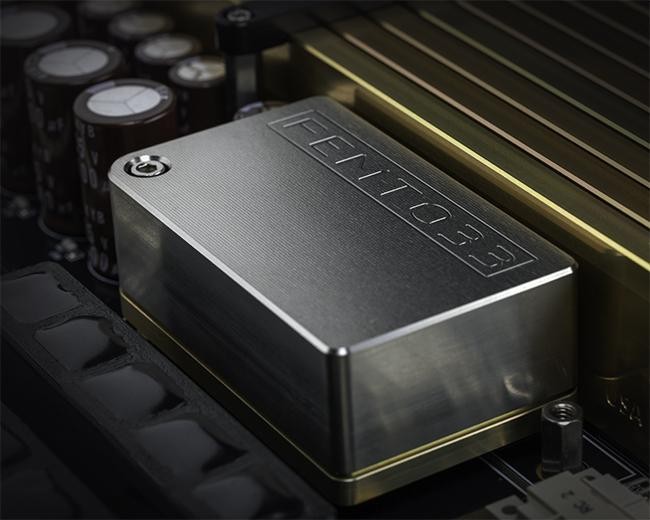

Femto Clock MKIII
Our industry-leading Femto 33’s new Mark III configuration has been optimized for maximum performance with the Cascade DAC. Featuring two hand-tuned, ultra-low phase noise, oven controlled crystals that yield the lowest jitter for both the 44.1kHz and 48kHz digital format families. Our clock module architecture is built with the customer in mind—we’ve made the clock module user-upgradable, ensuring future updates are simple and streamlined.

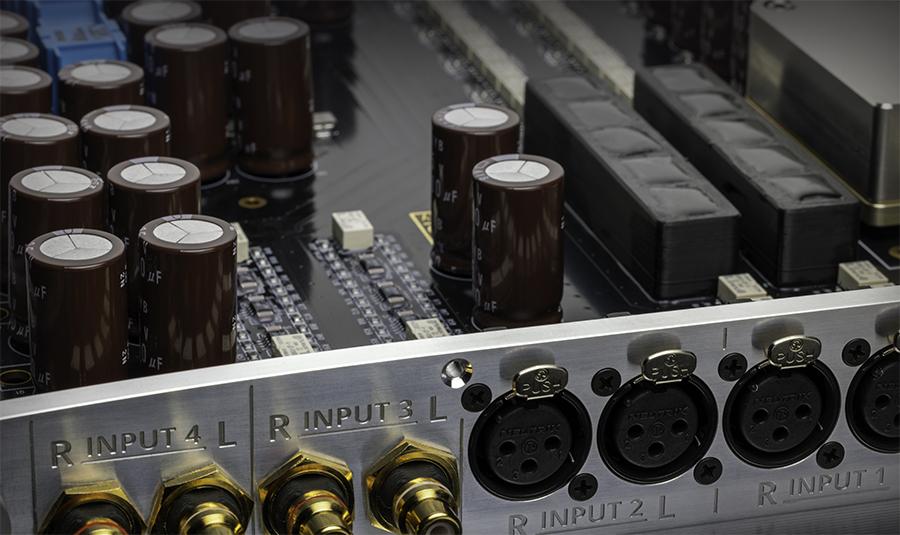

Unrivaled analog performance
The moment an analog signal is created, it becomes vulnerable to irreversible degradation. To combat this, we have designed our analog stages to minimally affect the fragile analog signals they create. Balanced signals from the Hybrid DAC modules are passed directly to a completely passive, 75 ohm, constant impedance analog stage. They are passively attenuated and then immediately exit the XLRs without ever touching an amplifier of any kind. This preserves signal purity to the utmost degree while still enabling any cable, amplifier, or preamp to be optimally driven. Selection of each volume step is done by precious metal contact, latching relays whose coils are switched to ground when not active to avoid any signal corruption. Volume attenuation is done with distributed components so that no one precision part has too much power dissipation, thereby preserving the maximum linearity of the signal. The signal path is fully balanced and differential to prevent any ground currents from polluting the delicate signals.

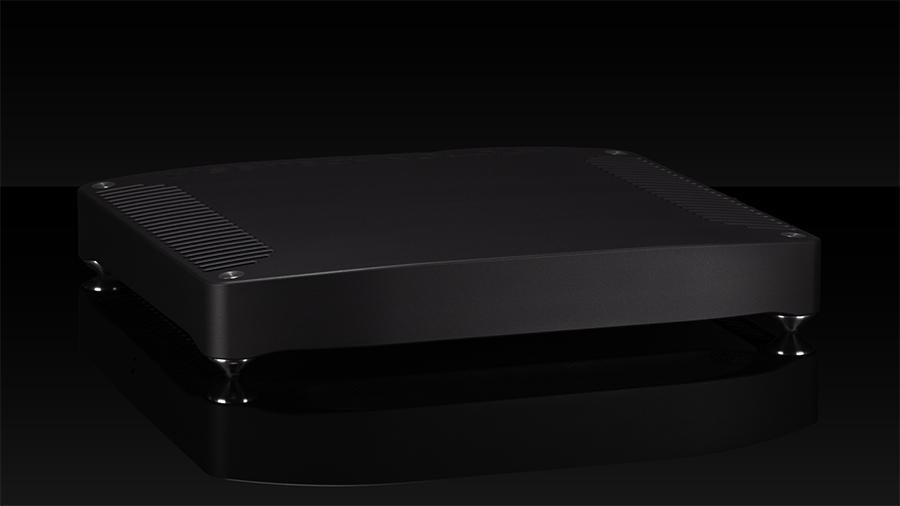

Part 3: The Powerbase
The analog performance is only as good as the power supplies that support it, that’s why we have completely overhauled our powerbase technologies for the Cascade system. The Cascade includes smart power controls, like our 12V trigger system, for a unified power experience.

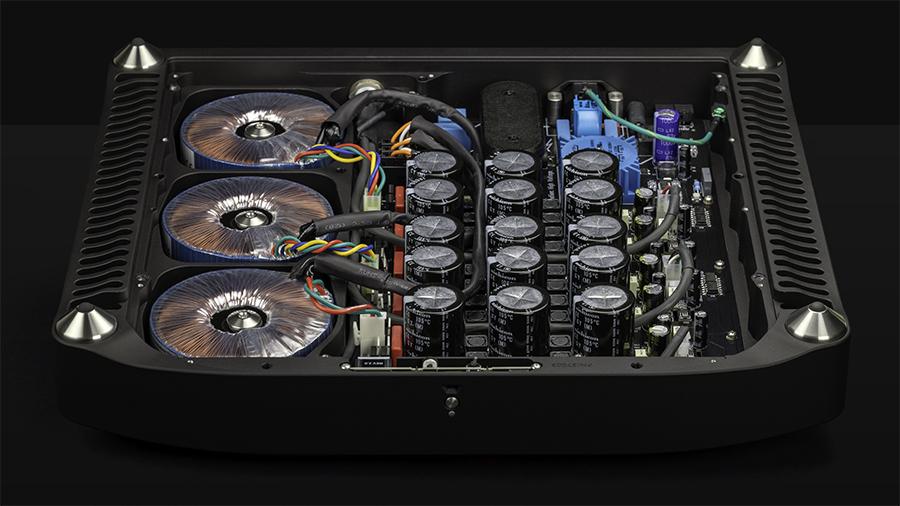

The Cascade Powerbase builds on our extensive experience with power supplies for critical analog circuitry. AC power is often polluted with interference from local computers, lighting, and appliances. This is why we have added an additional layer of protection with internal AC filtering that acts to significantly reduce this interference. To increase performance, we have three higher VA custom wound transformers that are electrically and magnetically shielded. After being converted to DC by discrete silicon carbide rectifiers, the raw power is then filtered by new optimized banks of inductors and capacitors to remove the majority of the residual noise from the raw DC. This is then regulated by our discrete, ultra-low noise linear power supplies. The five individual power rails are output for use by the Cascade Analog Converter.

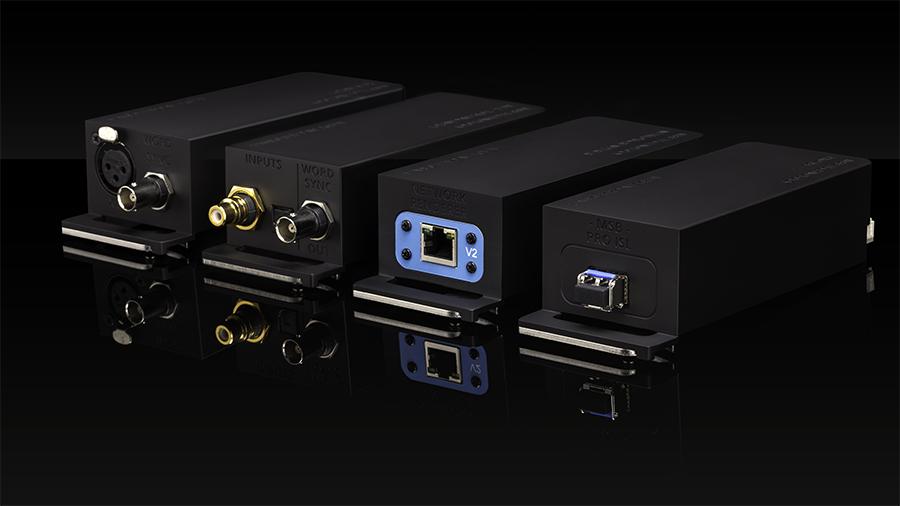

Innovative modular design

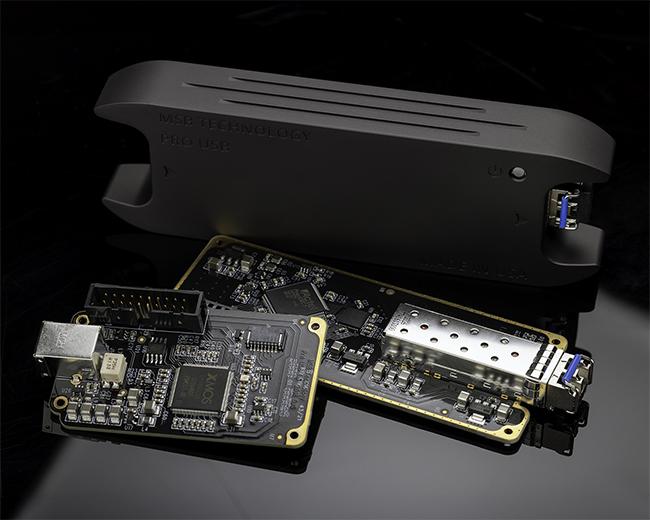

MSB thrives off the innovation required to meet consumer demands. We’re constantly improving digital input modules to stay at the forefront of the high-end audio industry, ensuring you’re always equipped with the most current digital file formats and interfaces. Focusing on our network renderer and USB inputs, your audio tech will be on the cutting edge. Put simply, your DAC is ready for the future. Paired with performance increases, our modular design ethos increases flexibility for future updates and product support, guaranteeing a long-term product investment. As you pursue even higher levels of playback, an MSB upgrade path is always available to help drive your own desire for innovation. Whether it’s a software update or a leading-edge modular component, we’re here to help.

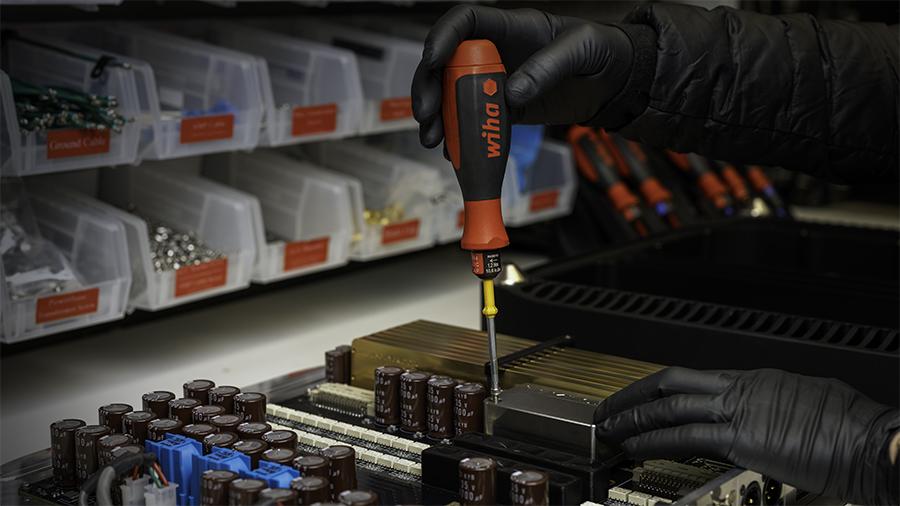

Handcrafted in California
We take great pride in the people behind our products and in our vertically-integrated manufacturing facilities based here in California. This closed-design feedback loop is an essential contributor to our breakthrough designs. Because we prioritize quality above all else, we are able to leverage the equipment being used to the greatest effect possible. Using the following link, we would love for you to explore a behind-the-scenes look at how every MSB product is handmade right here.
Superior streaming

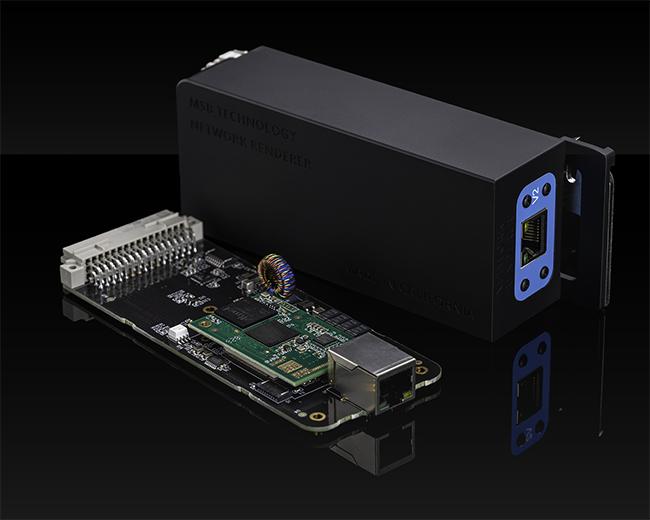

The MSB Renderer was developed using an in-house hardware design running an ultra-low noise A5 processor for optimal audio playback performance. Over the air updates will ensure that your renderer always has the latest capabilities and ultimate convenience.

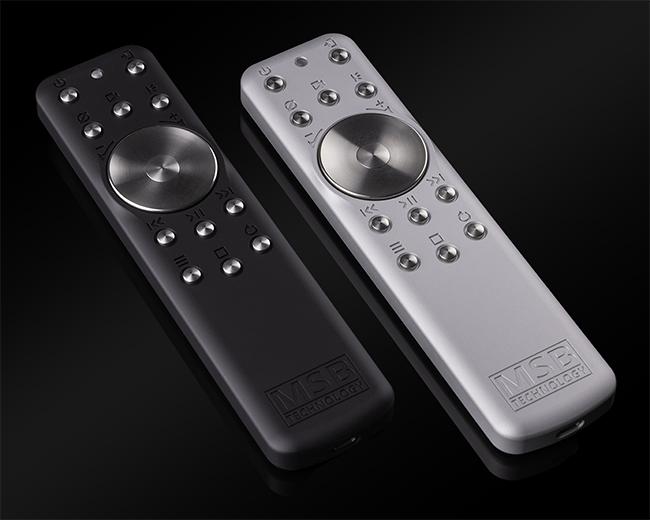

The MSB Remote

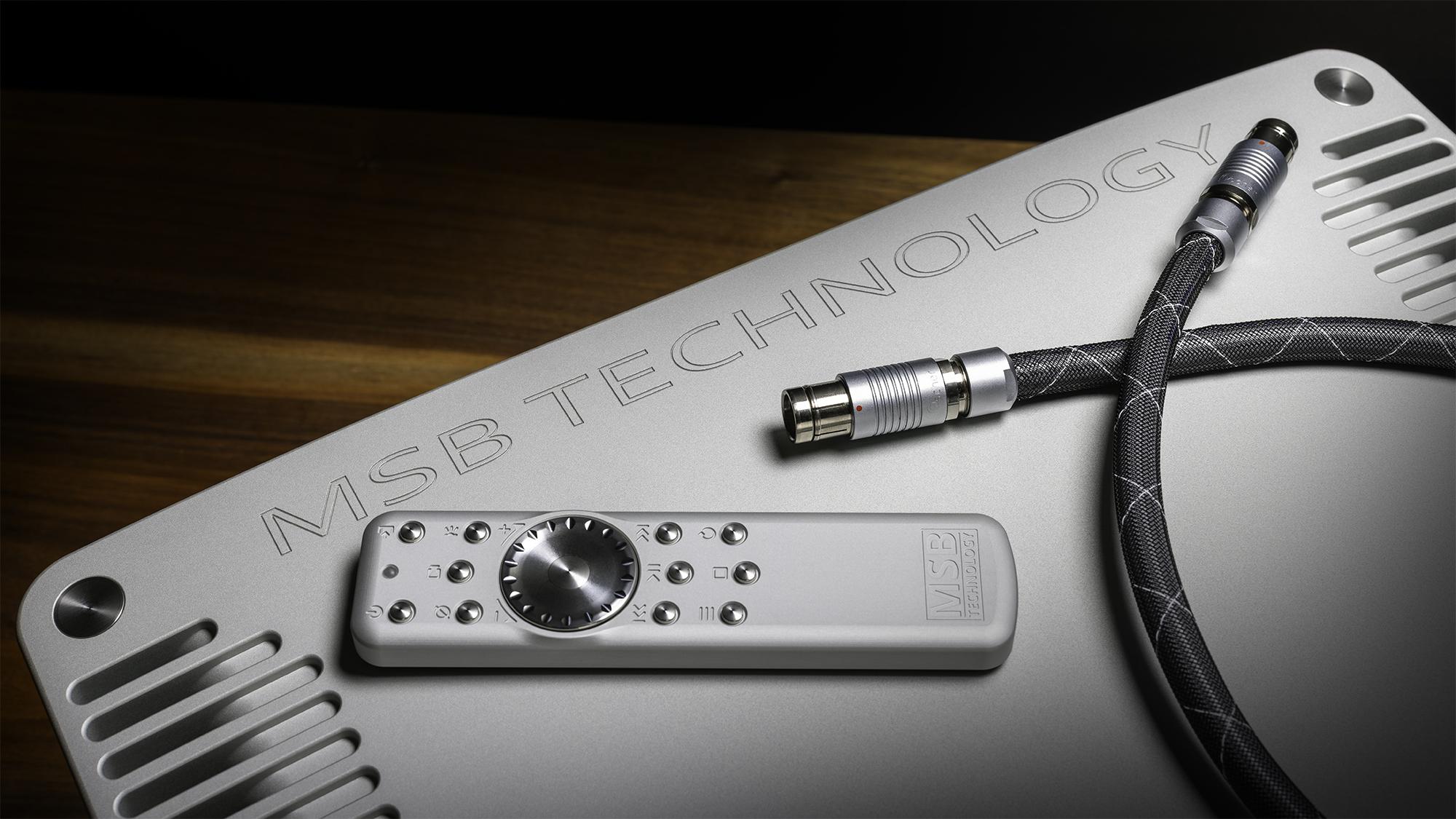

When we set out to make the MSB remote, the design was built from the ground up. An array of stainless steel buttons around an elegant volume wheel yields an optimized performance and response. Crafted in-house, in California, from an aluminum billet, the enclosure feels solid yet refined. Tailored for both the transport and the DAC’s daily use, our remote brings you closer to the music you love.
