QED XT25 kaiutinkaapelit

Hinta

99,00149,00 (sis. alv)

Toimitusaika: 2-5 arkipäivää

QED XT25 on valmistajan uusi, edullinen kaiutinkaapelipari. Varustettu banaaniliittimillä.

Patentoitu X-Tube kaapeligeometria, happivapaa kupari ja Low-Loss eristys, polyethylene ja teflon.

Saatavana pituuksin 2,0m ja 3,0m. Tilauksesta myös 5,0m 149€

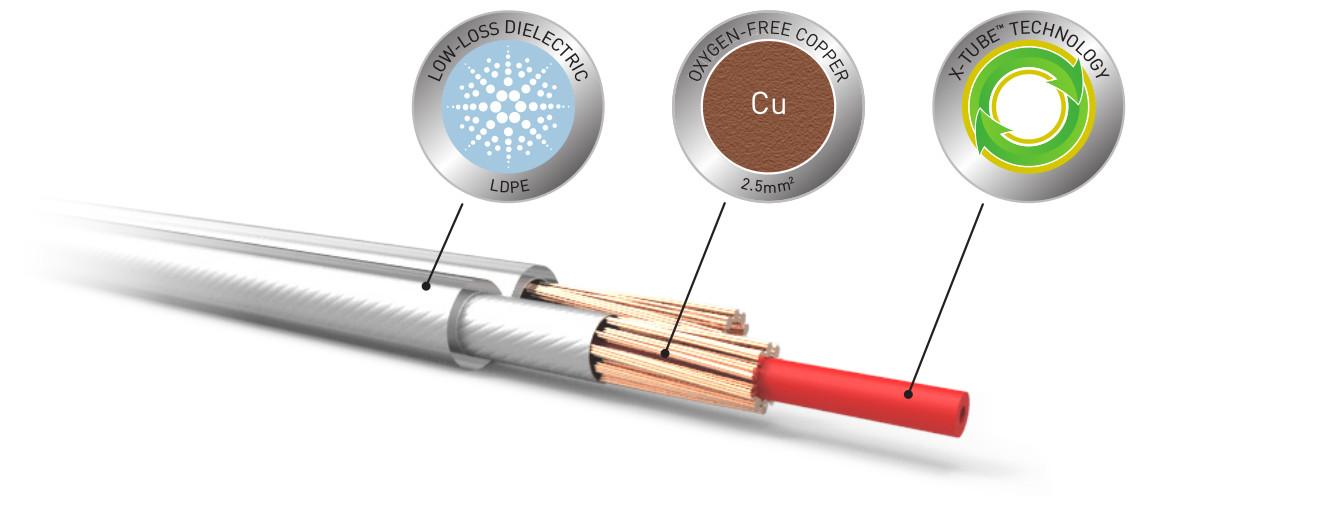

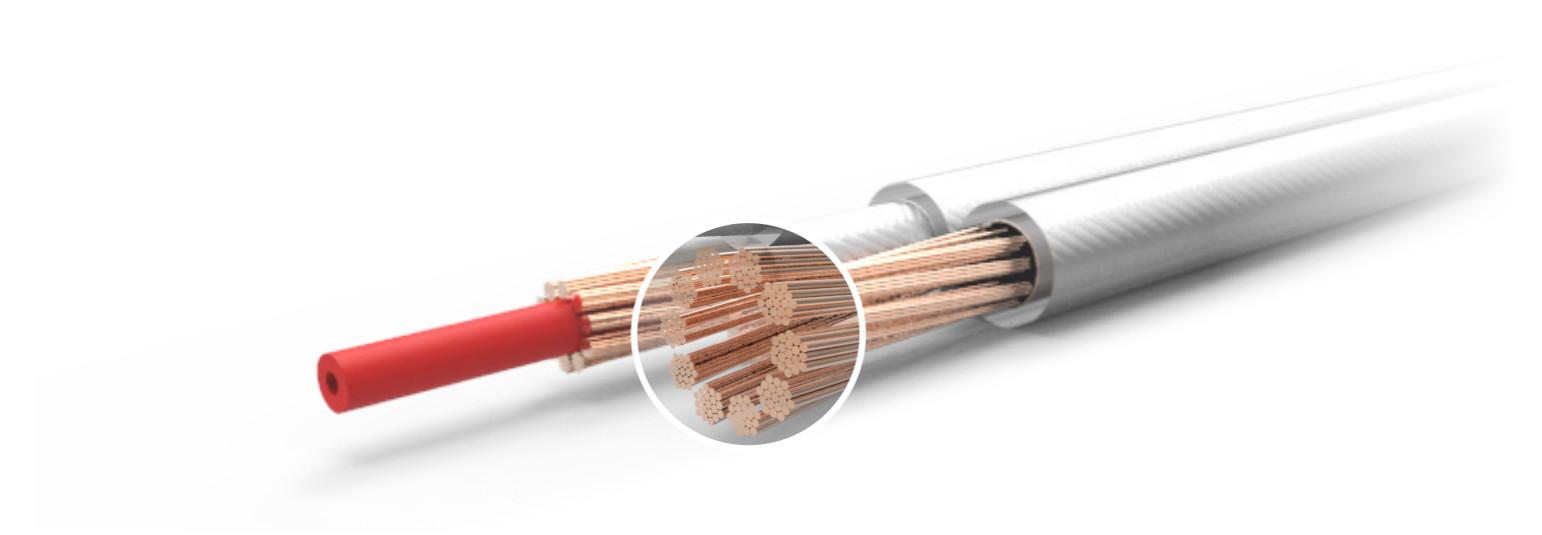

2. X-Tube™ Technology….but with a twist

In loudspeaker cables high pitched sounds are forced to travel towards the outside of the conductor and so are able to use less and less of the available cross-sectional area as the pitch increases. This is called the “Skin Effect”. It means that for high frequencies the resistance of the cable appears to be much higher than it does for lower pitched sounds. Eddy currents in one conductor can affect the current flowing in an adjacent conductor so that currents flowing in the same direction move away from each other. This “Proximity Effect” also increases resistance as frequency increases. These phenomena have a detrimental effect on the fidelity of the sound you hear. The XT25 variation of QED X-Tu Insulation LDPE jacket with 100% coverage of Aluminium Mylar tape wrap Plugs and spades QED Airloc™ Forte banana plugsbe™ Technology solves these problems by creating a hollow tubular conductor geometry out of individual conductor bunches through which each frequency can pass with equal ease when compared to traditional solid or stranded conductors.

3. Low-Loss Dielectric

Music signals in a loudspeaker cable move back and forth many times every second. The insulating material used to separate the send and return conductors from each other (the dielectric) has to be charged and discharged every time. Not all of the energy stored in the dielectric during each charge cycle is completely returned during each discharge cycle which has a detrimental effect on the fidelity of the sound you hear. That’s why at QED we use low-loss dielectric materials such as Polyethylene (PE) or Teflon™ (PTFE) in preference to cheaper PVC alternatives found in inferior unbranded cables.

4. 99.999% Oxygen-Free Copper

Speaker cables need to have a large current carrying capacity. If the electrical resistance of the cable is too large, part of the music signal will be lost, causing a detrimental effect on the fidelity of the sound you hear. To stop this from happening we make the resistance of our speaker cables as small as possible. We do this by using the largest practical cross-sectional area of copper within the size constraints of each cable. In order to squeeze the last drop of performance from the conductors we make sure that there are no impurities in the copper which would defeat the object of making them so large. That’s why we use 99.999% oxygen-free copper exclusively.

”  5 stars  ”  HI-FI CHOICE

Lisätiedot

Pituus

2,0m, 3,0m, 5,0m

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.

    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.
CROSS-SECTIONAL AREA
25 mm2
WIRE GAUGE
14 AWG
JACKET OUTSIDE DIAMETER
3.96 mm
LOOP RESISTANCE
13.4 mΩ/m
CAPACITANCE
35.0 pF/m
LOOP INDUCTANCE
0.52 μH/m
DISSIPATION FACTOR
@ 10 kHz 0.0001
CONDUCTORS
10 x 19/0.13 mm
INSULATION
LDPE jacket with 100% coverage of Aluminium Mylar tape wrap
PLUGS AND SPADES
QED Airloc™ Forte banana plugs
