iFi Nova-virtakaapelin rakenteessa on viisi johdinta, joista jokainen on valmistettu jatkuvavaletusta OFHC-kuparista. Siinä on happivapaa korkea lämmönjohtavuus ja sen johtimet järjestetty geometrisesti tasapainotettuun kokoonpanoon.

Keskelle sijoitetun maadoitusjohtimen ympärille on sijoitettu kaksi paria jännitteisiä ja kaksi paria nollajohtimia. Lisäksi toinen pari ilmadielektrisiä erottimia on järjestetty maadoitusjohtimen kummallekin puolelle pitäen kaksi jännitteisten ja nollajohtimien paria erillään. Tämä ratkaisu lisää myös kaapelin dielektristä suorituskykyä ja rakenteellista lujuutta.

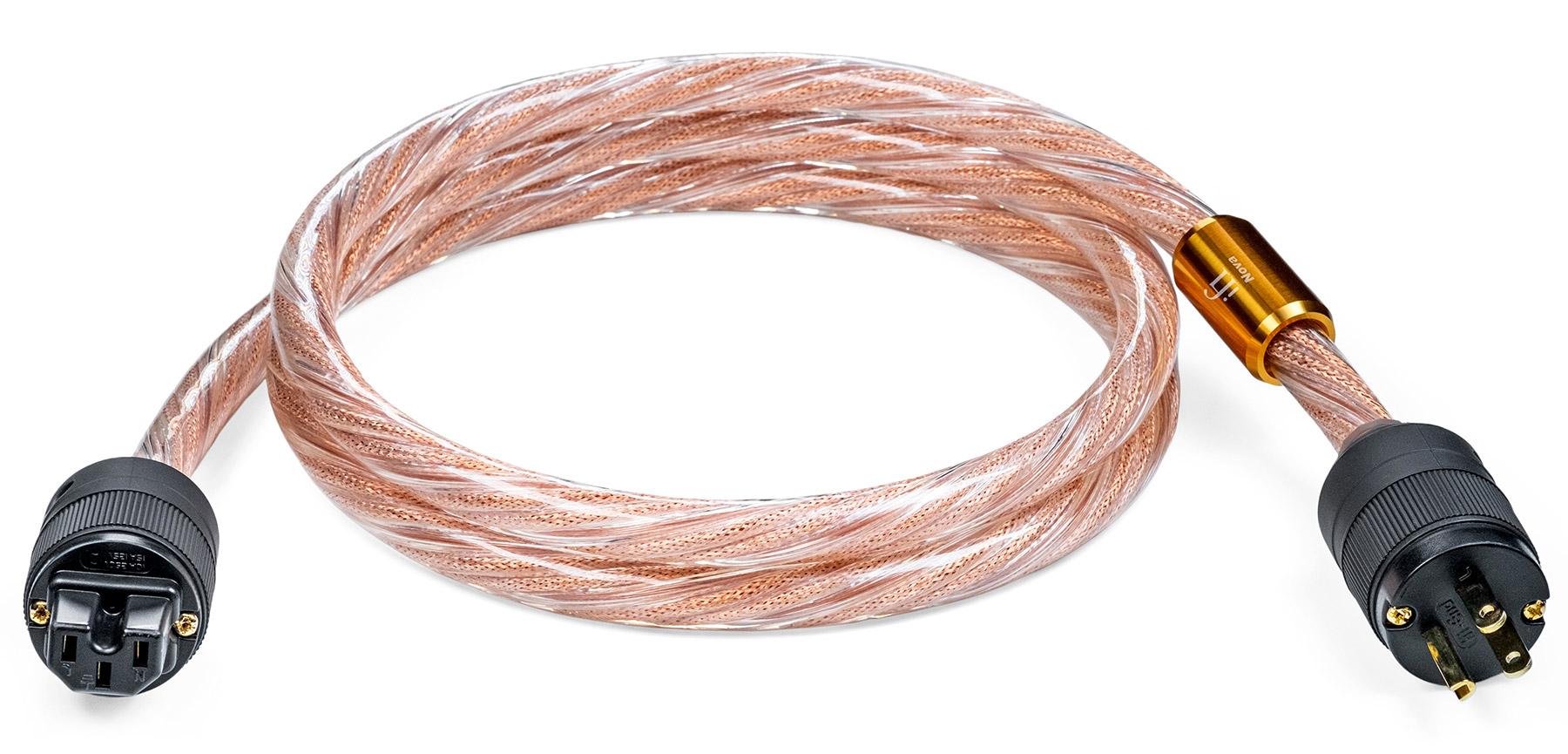

iFi Nova-kaapelin pituus on 1.8m

The Nova incorporates five conductors, each made from heavy-gauge, continuous-cast OFHC (Oxygen-Free High Thermal Conductivity) copper, arranged in a geometrically balanced configuration – highly unusual at such a price point.

Two pairs of live and neutral conductors are arranged either side of the earth conductor, which is positioned at the centre of the cable. A further pair of air-dielectric delineators – essentially polymer matrix tubes filled with air – are arranged either side of the earth conductor, keeping the two pairs of live and neutral conductors apart whilst improving the cable’s overall dielectric performance and constructive solidity.

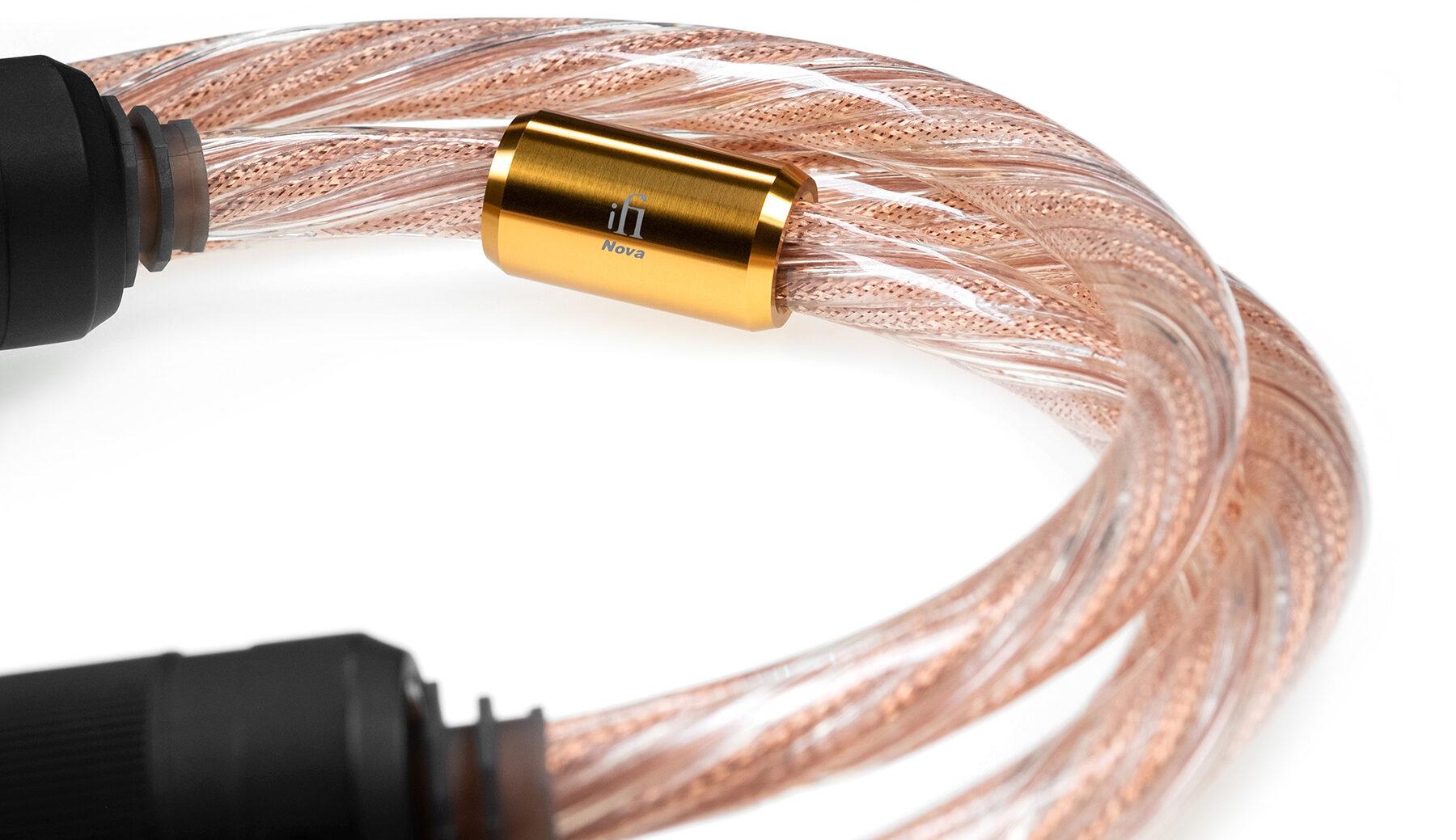

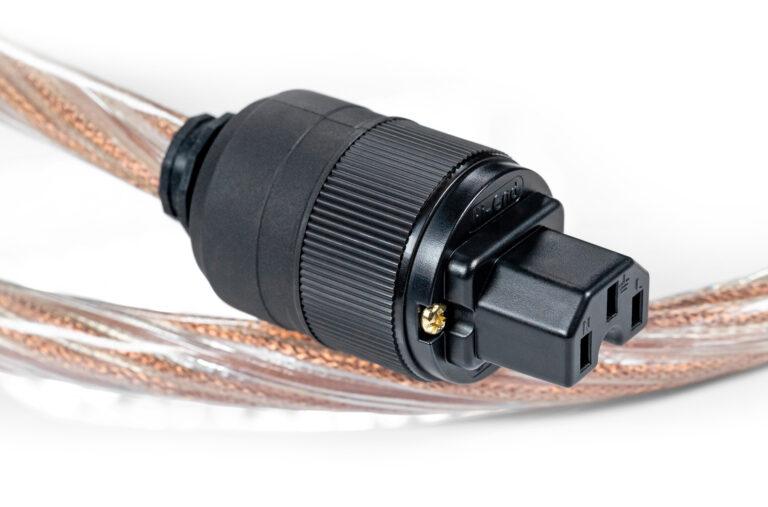

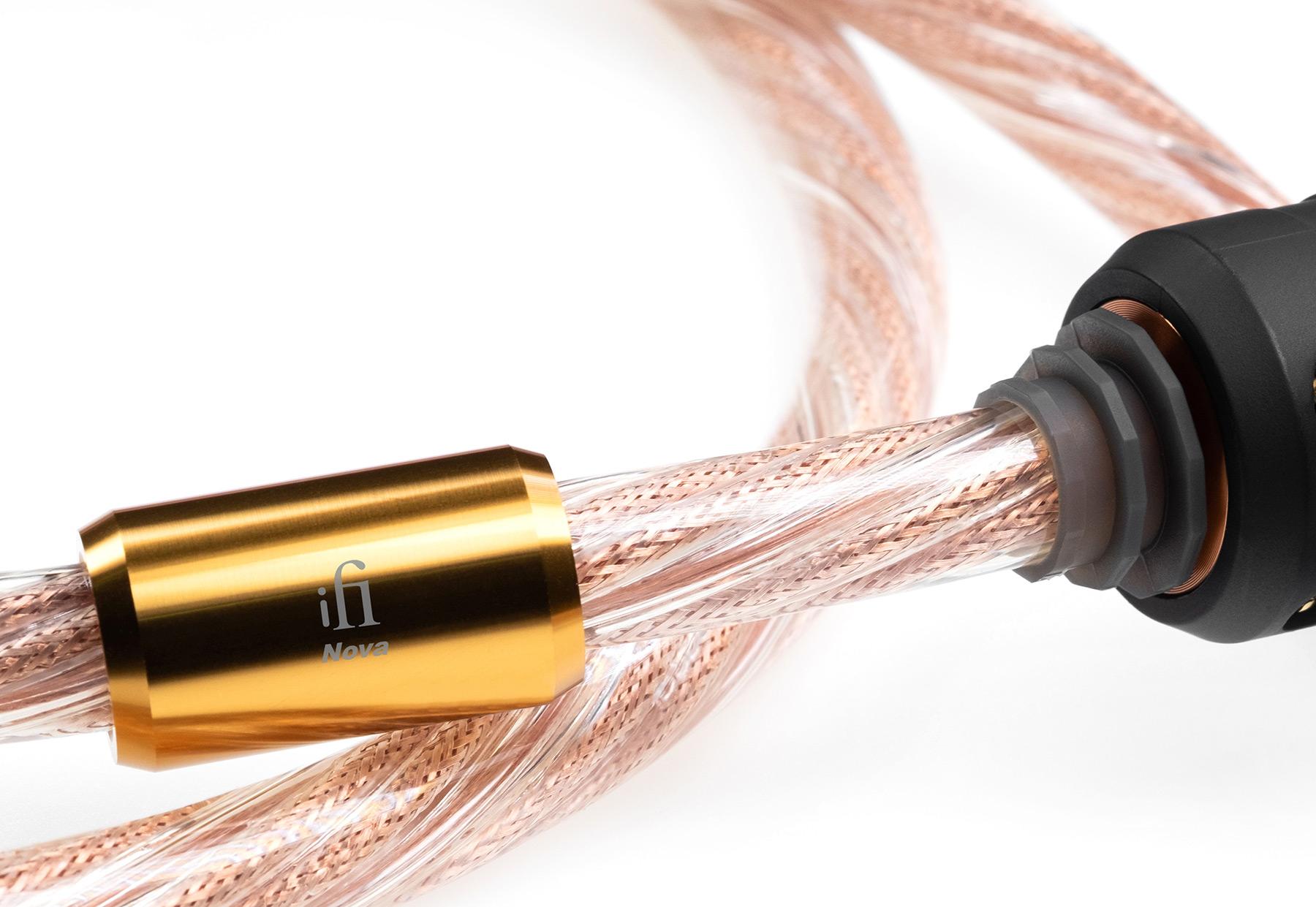

The cable is finished with a tough yet flexible polymer outer sheath and iFi’s bespoke audiophile-grade connectors, complete with 24ct gold plated oxygen-free copper conductors.

As already mentioned, the Nova incorporates five conductors, each made from heavy-gauge, continuous-cast OFHC (Oxygen-Free High Thermal Conductivity) copper, arranged in a geometrically balanced configuration.

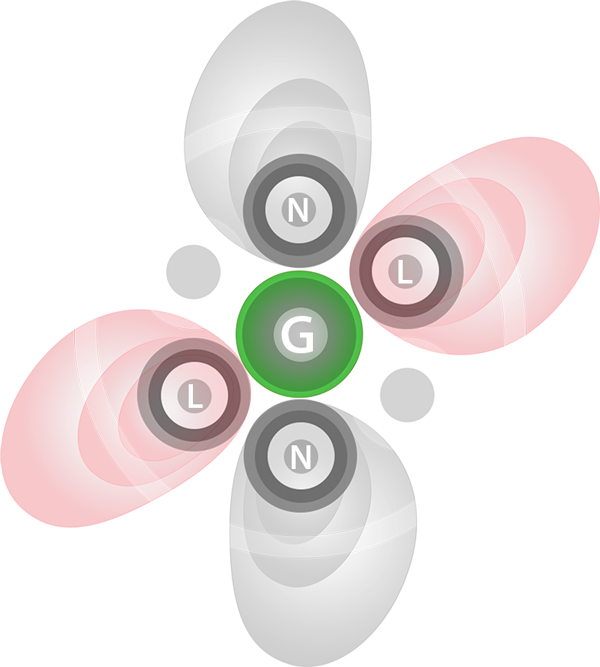

Two pairs of live and neutral conductors are arranged either side of the earth conductor, which is positioned at the centre of the cable. The ground conductor is arranged in a shotgun configuration and not twisted around like other mains cables. The live and neutral conductors are arranged in a truly balanced configuration, hence their magnetic fields cancel each other out perfectly.

As a result, there is no residual magnetic field being applied to the centre ground conductor, and no unwanted induced voltage on the Ground conductor – we call this design Ground Zero.

Our Ground Zero design ensures the grounding conductor within the cable is unaffected by residual magnetism and unwanted induced voltage.

The constant impedance design helps to maintain the purity of the mains electricity flowing into each piece of equipment in an audio system or an AV set-up.

This is a true balanced power cable.

Using true geometrically balanced pairs means that the magnetic fields caused by the live and neutral conductors cancel each other out perfectly. This is a key component in the Ground Zero design.

The cable design incorporates concurrent shielding for individual power lines and therefore creates a cable offering constant impedance, that is superbly insulated from EMI/RFI and feeds your audio or AV system with clean electricity for improved sound and performance.

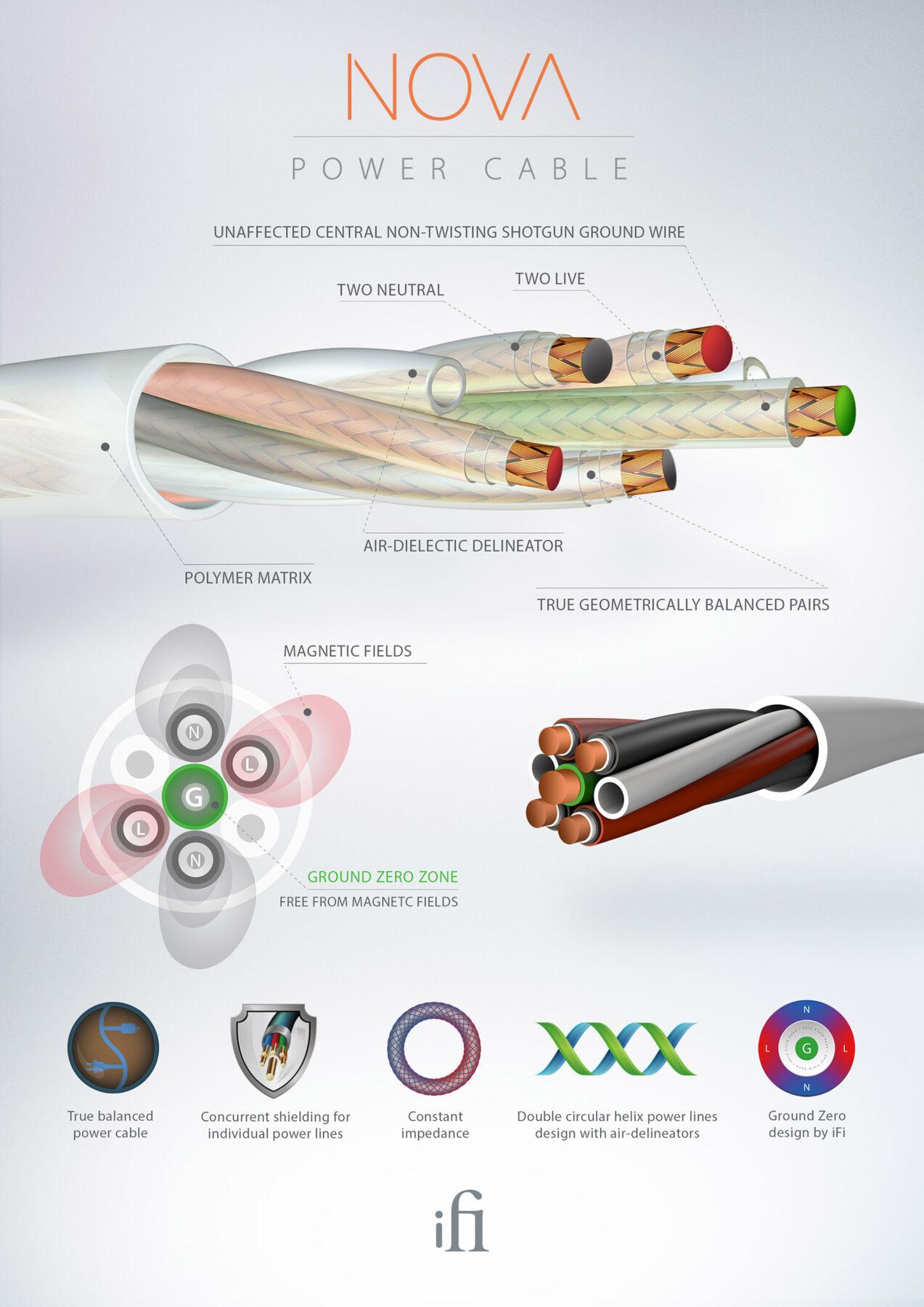

Double circular helix power line design with air-dielectric delineators.

This twisted configuration further aids RFI/EMI rejection.
