iFi SupaNova-virtakaapelin rakenteessa on viisi johdinta, joista jokainen on valmistettu jatkuvavaletusta OFHC-kuparista. Siinä on happivapaa korkea lämmönjohtavuus ja sen johtimet järjestetty geometrisesti tasapainotettuun kokoonpanoon.

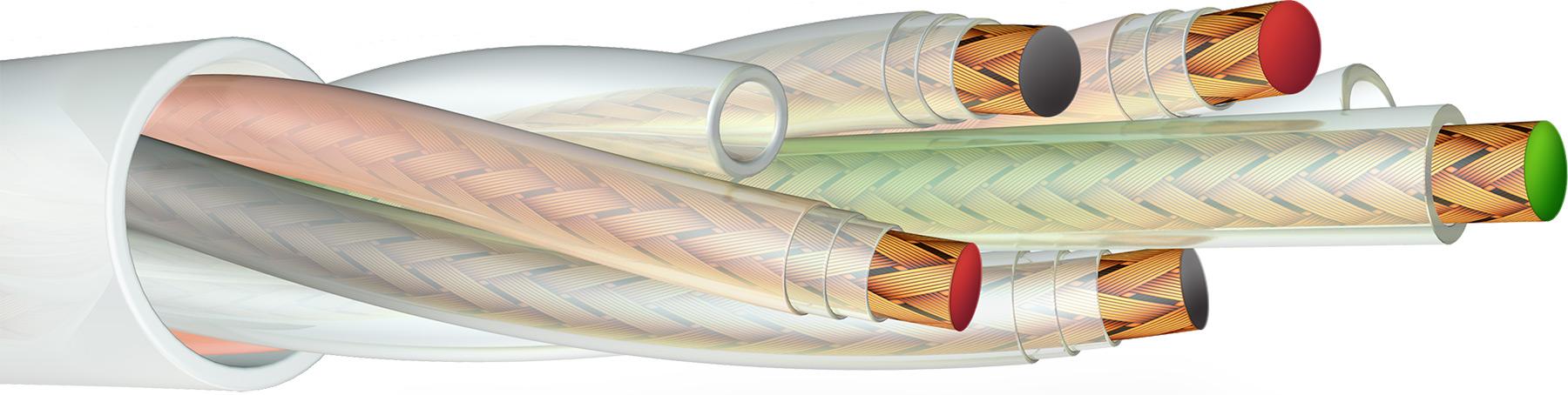

Keskelle sijoitetun maadoitusjohtimen ympärille on sijoitettu kaksi paria jännitteisiä ja kaksi paria nollajohtimia. Lisäksi toinen pari ilmadielektrisiä erottimia on järjestetty maadoitusjohtimen kummallekin puolelle pitäen kaksi jännitteisten ja nollajohtimien paria erillään. Tämä ratkaisu lisää myös kaapelin dielektristä suorituskykyä ja rakenteellista lujuutta.
SupaNova-kaapelin pituus on 1.8m
Most power-conditioning products engage passive noise reduction through a selection of filters and regulators. While this can be effective, it has inherent disadvantages. Passive noise reduction systems are effective at the top end of the frequency spectrum but often less so at lower frequencies. In addition, passive systems need large capacitors to be truly effective, which make the best such products bulky and expensive.
iFi’s active system uses inverse noise current to cancel out the noise in the mains signal. Noise in the mains supply occurs at different frequencies, depending on the cause. Active Noise Cancellation II technology enables a power-conditioning device that is highly effective at reducing noise consistently across the entire frequency spectrum yet sufficiently compact and lightweight to position within the mains cable itself.
Our Wireless Purification System (WPS) is a complex circuit that reduces power line noise without audible or measured side-effects.
This is important because other solutions while attempting to curb noise, also hamper dynamics.
The Over-voltage Surge Protection (OSP) is an auto detection and cut-off circuit.
Should it detect an excessive power surge or short in the mains electricity it will automatically cut off. If this issue persists, it will not reboot and will protect your equipment from harm.
It is effective to max. 30,000A @ 1,000V/10uS.

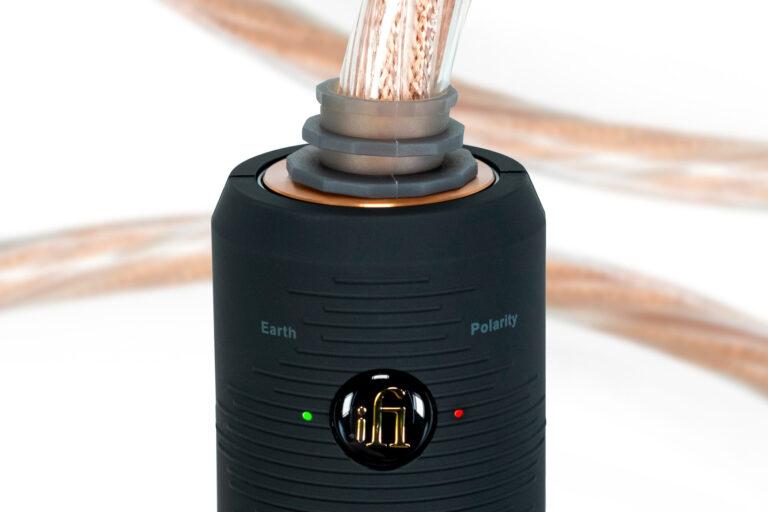

Our Intelligent Ground is a smart diagnostic tool. It will only actively provide an earth/ground connection if your system needs one. It will NOT create a ground loop if the system is already earthed/grounded.
Our Ground Zero design ensures the grounding conductor within the cable is unaffected by residual magnetism and unwanted induced voltage.
The constant impedance design helps to maintain the purity of the mains electricity flowing into each piece of equipment in an audio system or an AV set-up.
This is a true balanced power cable.
Using true geometrically balanced pairs means that the magnetic fields caused by the live and neutral conductors cancel each other out perfectly. This is a key component in the Ground Zero design.
The cable design incorporates concurrent shielding for individual power lines and therefore creates a cable offering constant impedance, that is superbly insulated from EMI/RFI and feeds your audio or AV system with clean electricity for improved sound and performance.
Double circular helix power line design with air-dielectric delineators.
This twisted configuration further aids RFI/EMI rejection.
