Sonus faberin täysin uusittu Aida 2017 on miehenkokoinen, mutta linjoiltaan kaunis ja linjakas kaiutin. Ainutlaatuisia rakenneratkaisuja ja täysin Sonus faberille räätälöityjä komponentteja.
Ääneltään erinomaisen sävykäs ja hienovireinen, jossa musiikin nyanssit ja soittimien timbret välittyvät kuuntellijalle vapautuneesti ja luonnollisesti. Nautinto myös silmälle, Vicenzalaisten osaamisen huippu.

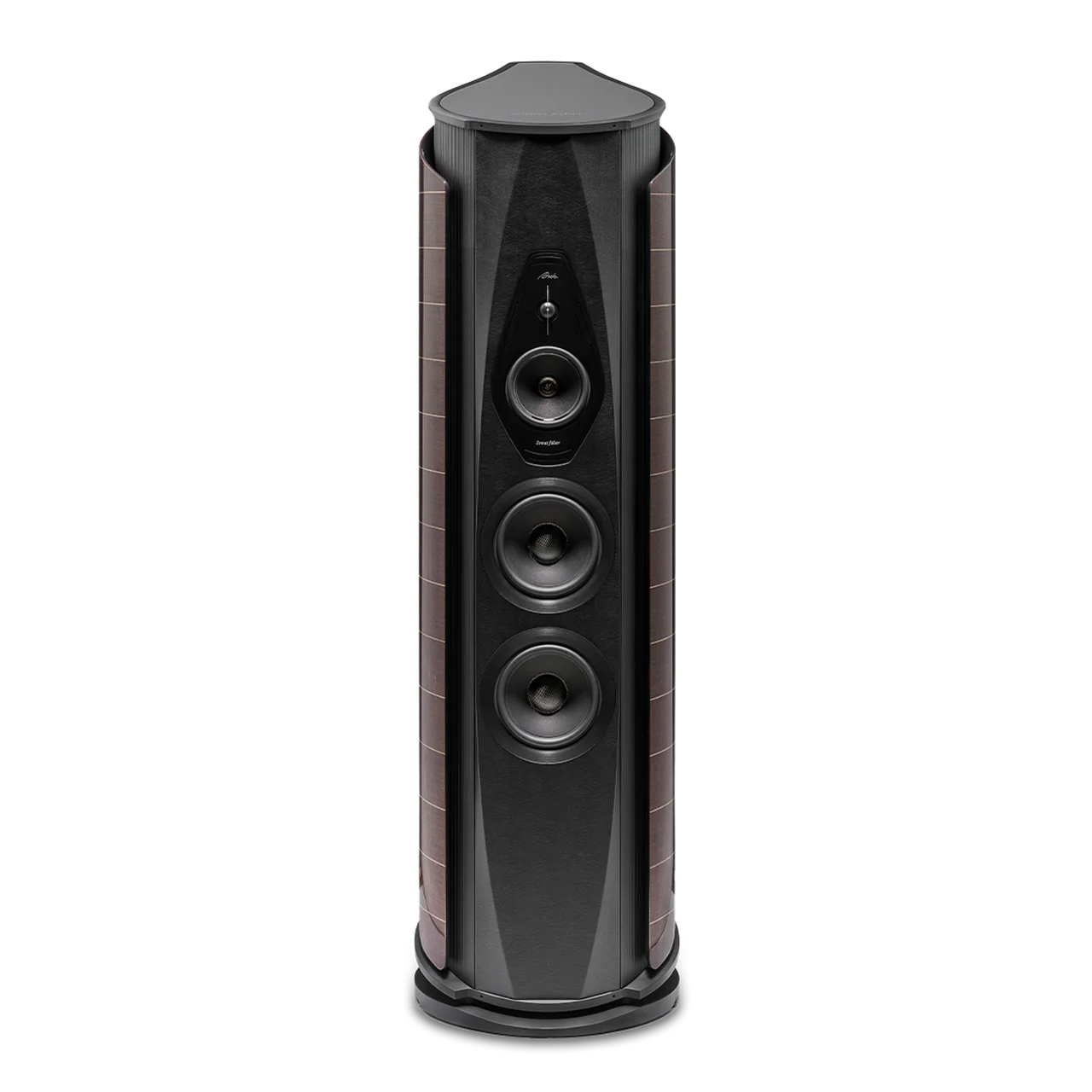

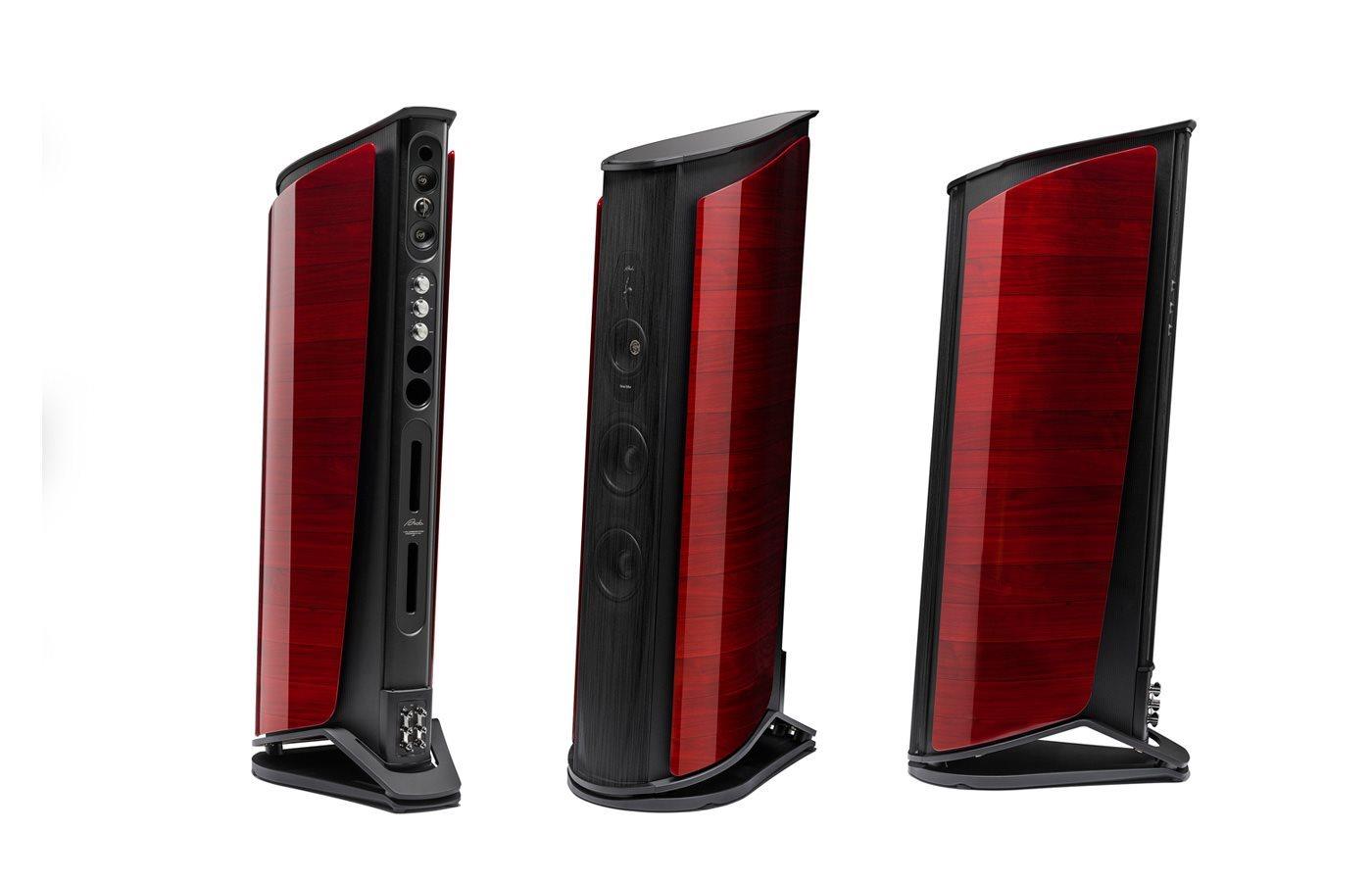

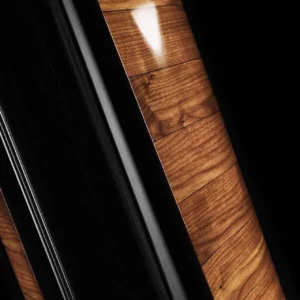

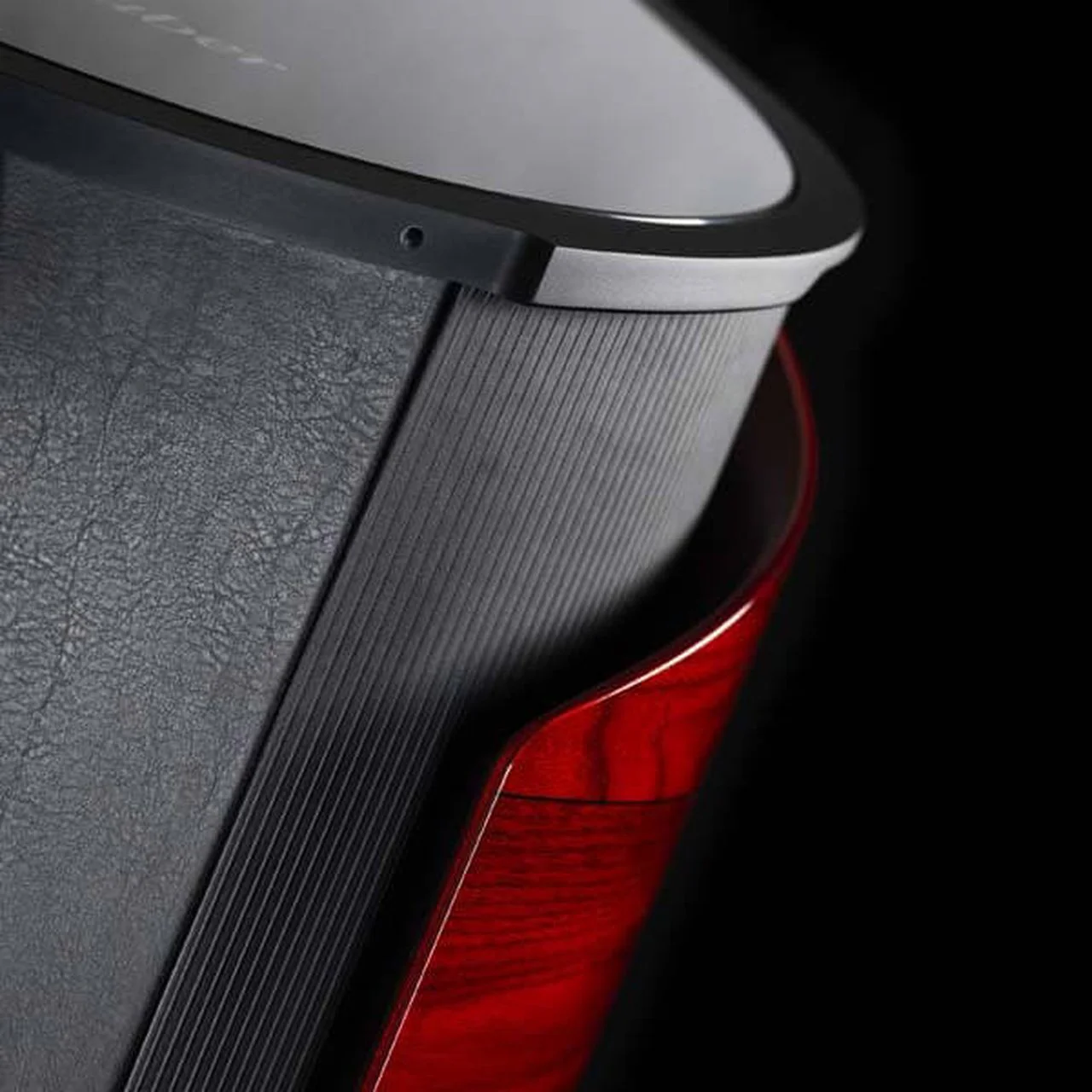

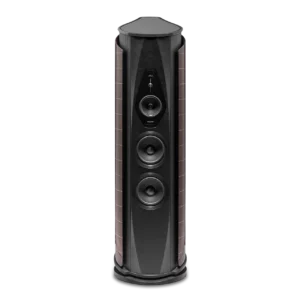

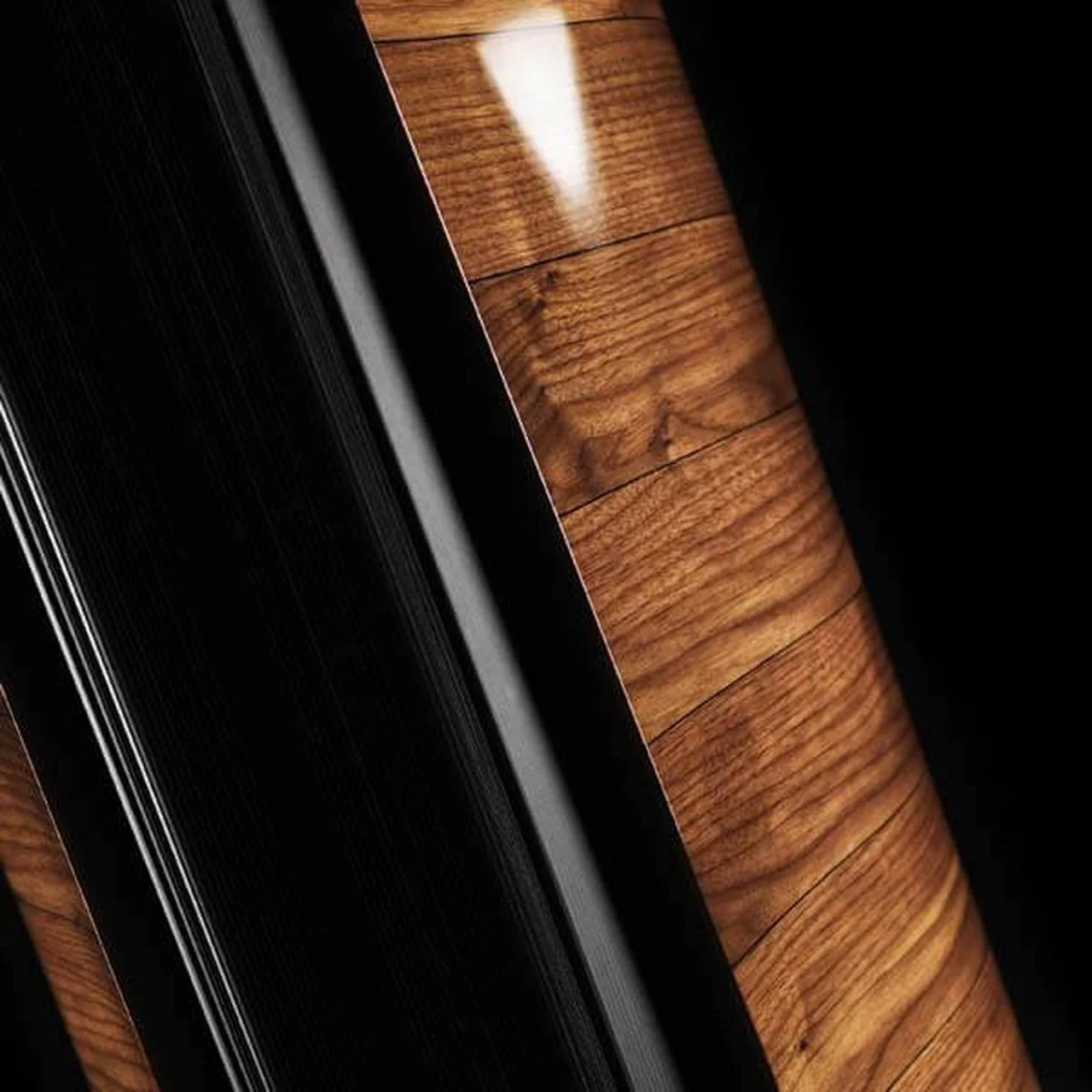

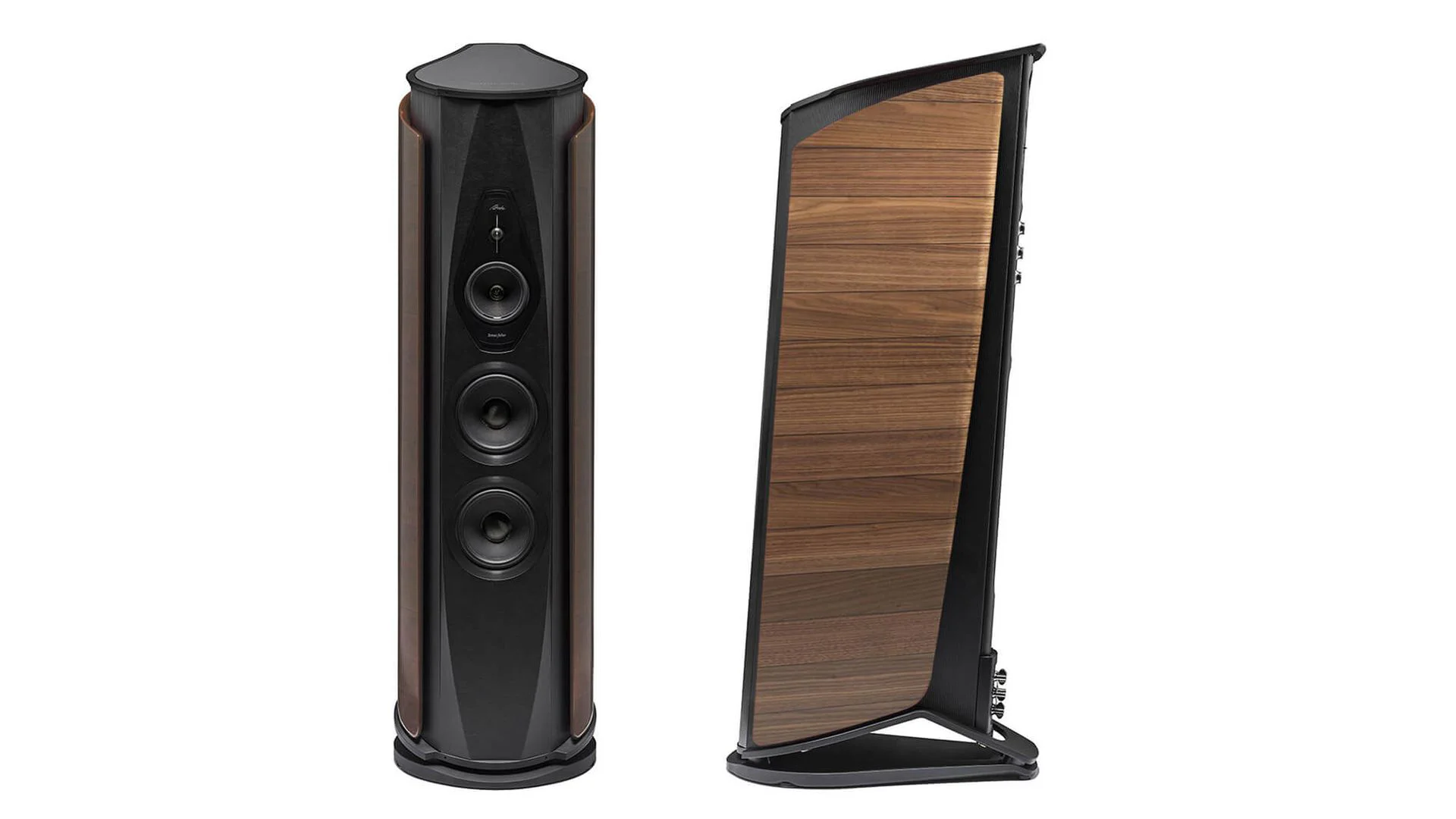

Sonus faberin kaiken osaamisen taidonnäyte. Kolme toinen toistaan upeampaa viimeistelyä; red, walnut ja wenge.
State-of-the-art
Technology.
Don’t let the familiar face fool you: Aida maintains the typical lute shape and the typical design elements that made it so recognizable, has been completely overhauled, embracing the most advanced electroacoustic developments of the latest years. This “3 and 2/3 way” loudspeaker system features the patented “Stealth Ultraflex”, for a better bass extension, the “Anima Legata” system and the “Tuned Mass Dampers”, for maximum elimination of inner spurious vibration, the patented “Zero Vibration Transmission”, for saving the listening environment from the spread of vibration and for a better performance of the infrawoofer, and the “Sound Field Shaping” technology, for a new dimensionality of sound and perceived size of the sound-stage. The most radical among the new changes is the selection of all-new driver systems, all of them rigorously “made in Italy” and featuring a Neodymium motor system.
Aida,
limitless immersion.
All the technological and stylistic experience of Sonus faber is condensed in Aida, la pinnacle of Sonus faber catalogue in which are expressed at their best elegance, refinement, but also, power and precision. Our flagship maintains the name of the grandiose opera by Giuseppe Verdi; as the masterpiece of the Italian opera, Aida will be able to immerse the listener
in a new dimension where the emotion of music has never been so realistic. Aida can reveal how Sonus faber improved, always keeping its original intuition, the synthesis of tradition with technological innovation.

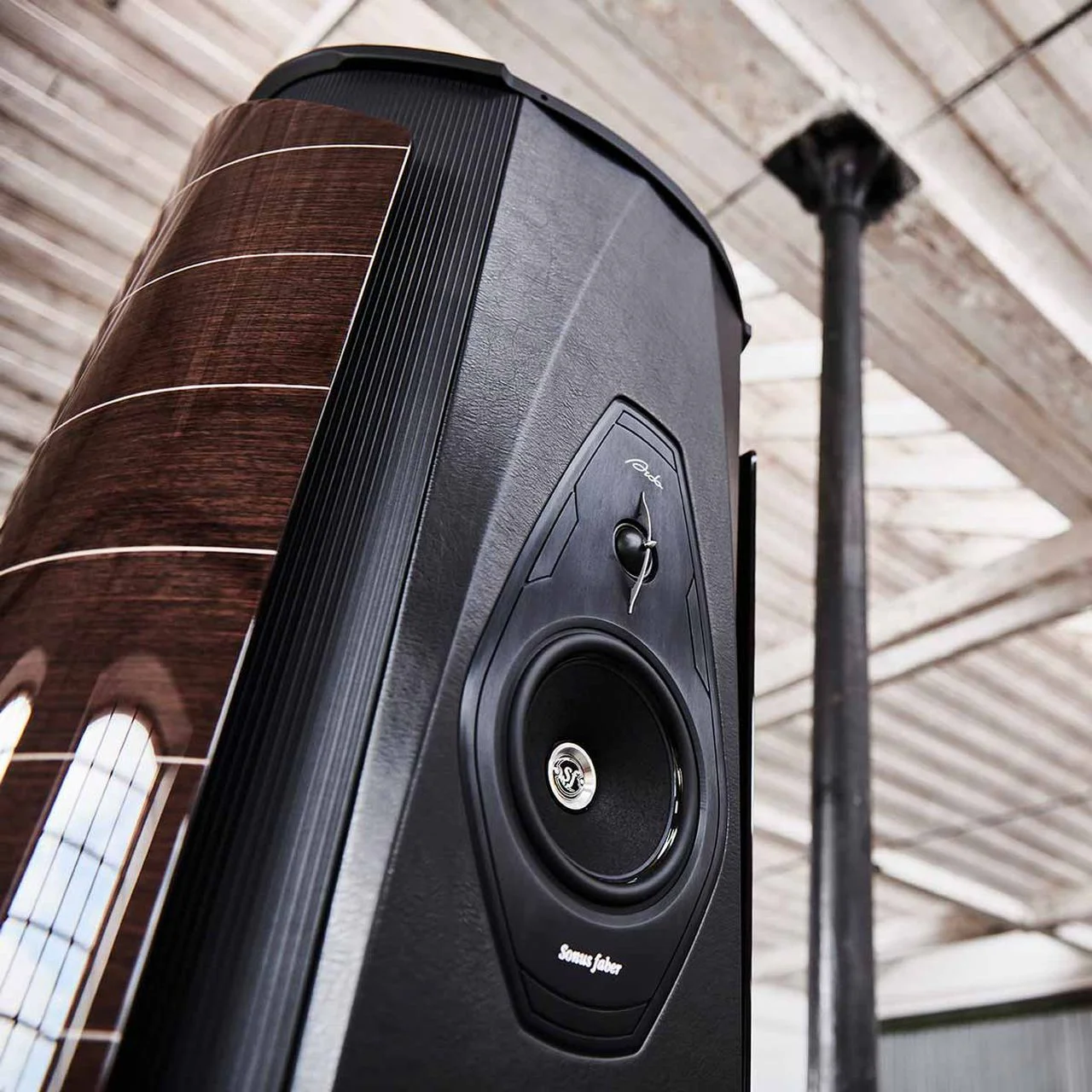

THE VOICE OF SONUS FABER
New combination of tweeter and midrange creates the “Voice of Sonus faber”, the iconic configuration of driver technology capable of maintaining the effortless, warm and involving timbre that has become our trademark thanks to the 28 mm tweeter with silk dome and “Arrow Point” DAD (Damped Apex Dome, the dampening system to avoid counter phase vibrations of the dome) and to the midrange with cellulose pulp cone and Neodymium motor system.
STEALTH ULTRAFLEX SYSTEM
Patented system that allows a big reduction of the THD (Total Harmonic Distortion) and a better bass extension while minimizing distortion and eliminating spurious vibration coming from the air passage inside the reflex duct. Aida Stealth Ultraflex system has a high ratio between width and height and allows reducing the dimensions of acoustic chambers.
TUNED MASS DAMPER

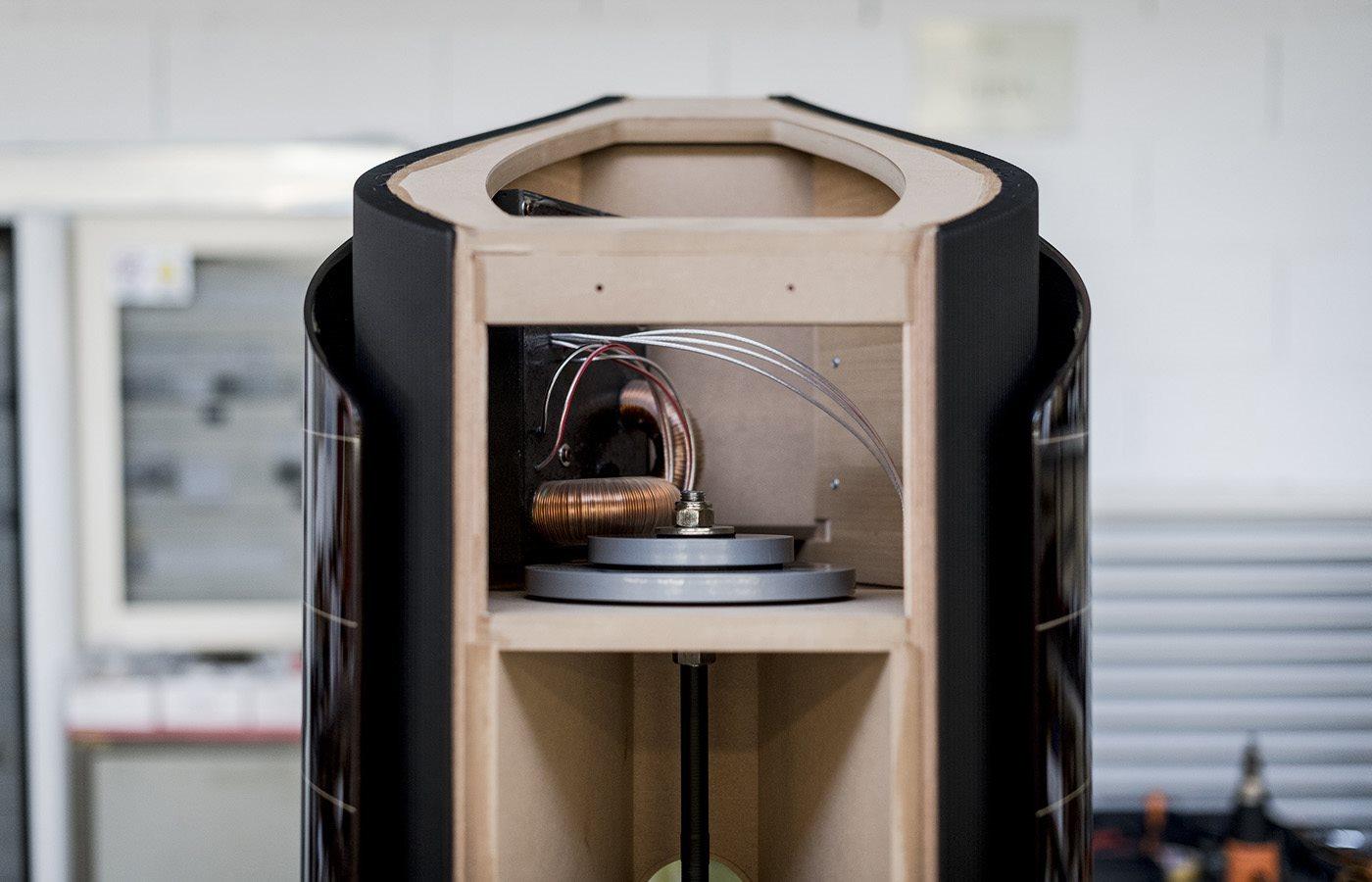

The TMD (Tuned Mass Damper) is a device normally used in the biggest world’s skyscrapers and consists in some suspended masses placed inside of the speakers; while vibrating in antiphase, the TMD erases main vibrations and allows a clearer bass reproduction and a better silence reproduction.
ZERO VIBRATION TRANSMISSION
The purpose of this technology is decoupling the loudspeaker system from the ground, avoiding spurious vibration to spread in the listening environment. Springs and elastomers are placed on the base; their decoupling compliance is carefully calculated in reason of the weight of the speaker and allows a more powerful performance of the down firing infrawoofer and a perfect tuning of the entire loudspeaker system.
” Given the magic the 160Ms and the Ref6 performed with the Aidas (speakers I haven’t always loved in the past), I’m clearly missing out on something exceptional. On every LP I played, from Chet Baker to Enescu, this was the best demo of the show—and not by a little bit. The Sonus/ARC/Clearaudio combo simply had more of the breath and bloom of life than any other exhibit. ” Jonathan Valin / The Absolute Sound RMAF 2018 Show Report
” Recommended Components 2020 Class A ” STEREOPHILE
” Recommended Components 2022 Award ” STEREOPHILE
Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.
SYSTEM
“3 and 2/3” way, “Sound field Shaper technology”, “Zero Vibration Transmission” technology, para-aperiodic vented box “Stealth Ultraflex” system and staggered low frequency floor standing loudspeaker system.
TWEETER

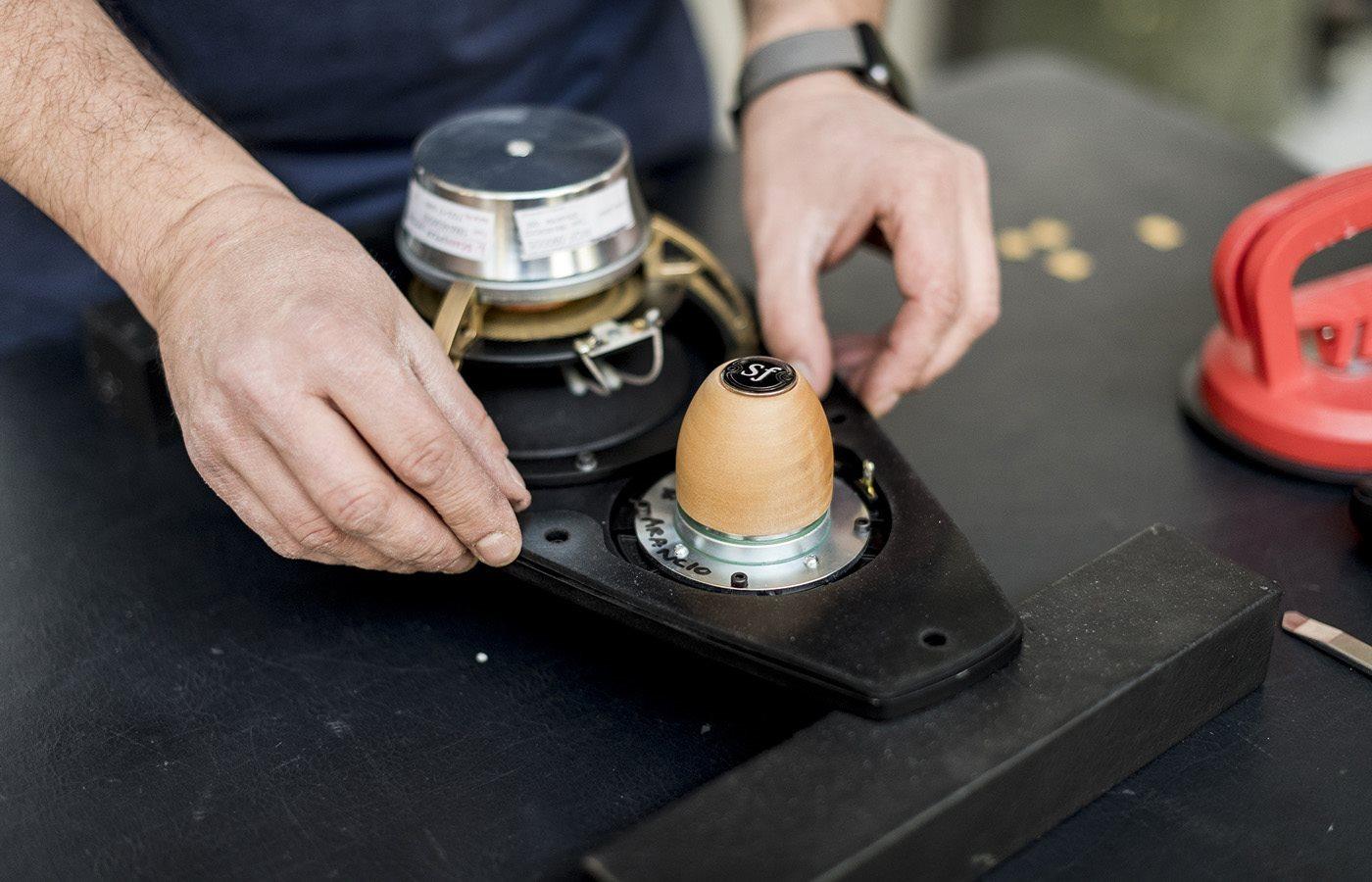

Sonus faber “Arrow Point” DAD (Damped Apex Dome, synthesis of the classic dome and ring transducer) H28 XTR-04. A Sonus faber designed 28 mm moving coil driver, with Sonus faber’s vibration optimized mechanical interface. The ultra-dynamic linearity is given by the Neodymium motor system. Implemented with a natural wood acoustic labyrinth rear chamber, a mechanical anti-resonator designed for this application.
MIDRANGE
Sonus faber M18 XTR-04. A Sonus faber designed 180 mm Neodymium magnet system ultra-dynamic linearity midrange. CCAW wire is used on a composite former “eddy current free” voice coil. The dynamically linear magnetic field motor incorporates triple Kellog/Goeller rings. A special custom diaphragm is made with a real-time air dried non-pressed blend of traditional cellulose pulp, Kapok, Kenaf and other natural fibers, developed according to the most natural sound. To further inhibit any residual cone coloration, we are using a transparent viscous surface damping coating. The basket is thoroughly optimized to eliminate any resonance, fully CNC machined from solid billets of Avional and Gunmetal. The combination of the two different metals allows eliminating any mutual resonance. The same way as the tweeter, the midrange is decoupled from the main baffle board and designed synergistically with its optimized “acoustic chamber”. A special coaxial anti-compressor is used, designed to remove cavity resonances and distortions.
WOOFERS
Sonus faber W22XTR-12. A pair of Sonus faber designed 220 mm Neodymium magnet system woofers, lightweight “sandwich” cone structure (high-tech syntactic foam core and two external surface skins of cellulose pulp) woofers. Each of them is integrated in its own acoustically amorphous “stealth reflex” chamber. Designed to blend perfectly with the special midrange and, at the same time, to have absolute definition in their range: the sandwich structure with outer paper pulp skins has the same sonic character of the midrange cone. A powerful long stroke motor system with a 2” controlled “eddy current” voice coil is implemented for high speed, performance and linearity.
INFRA WOOFER
Sonus faber SW32XTR-08. A Sonus faber designed 320 mm Neodymium magnet system infra woofer, sandwich cone structure with high-tech syntactic foam core and two external surface skins in Nano Carbon Fiber for maximum rigidity and light weight. An impressive 4” voice-coil, inside and outside winding design to take advantage of the magnet field strength and to control the Lorentz currents proportionally to the excursion obtaining this way the tightest available lows. To perfectly match the low-end performance to different listening rooms it is possible to adapt the SPL of the infra woofer.

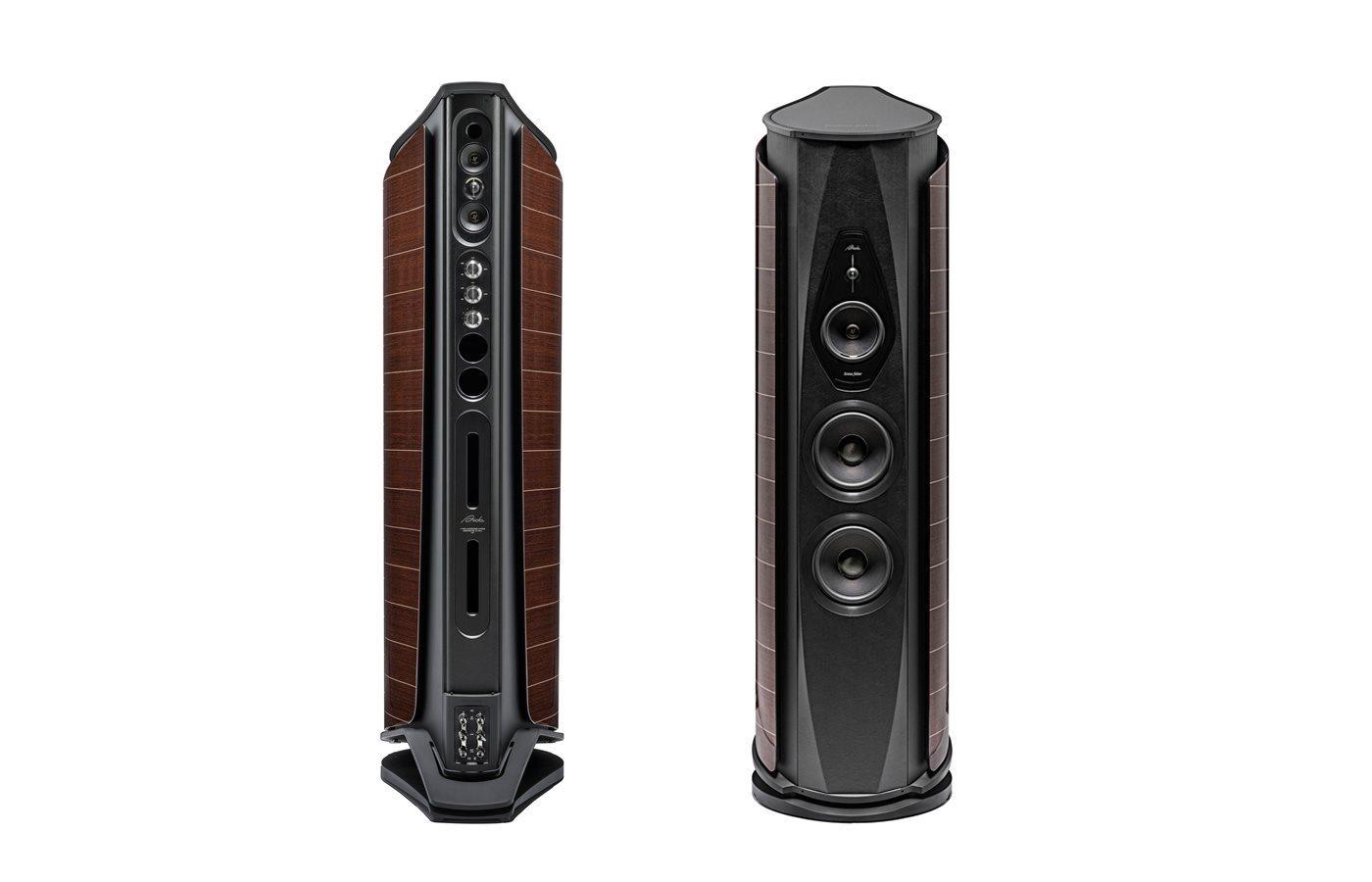

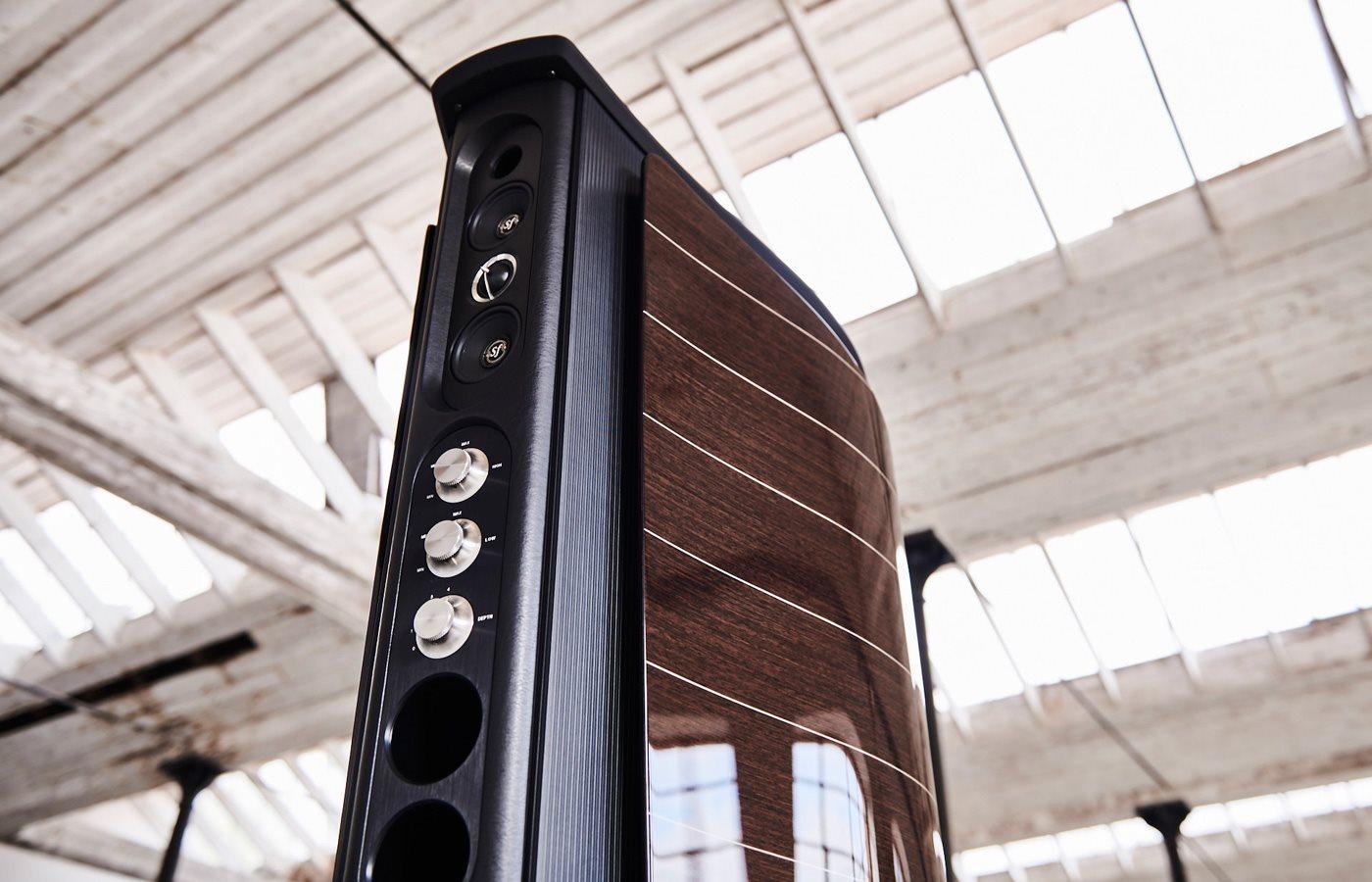

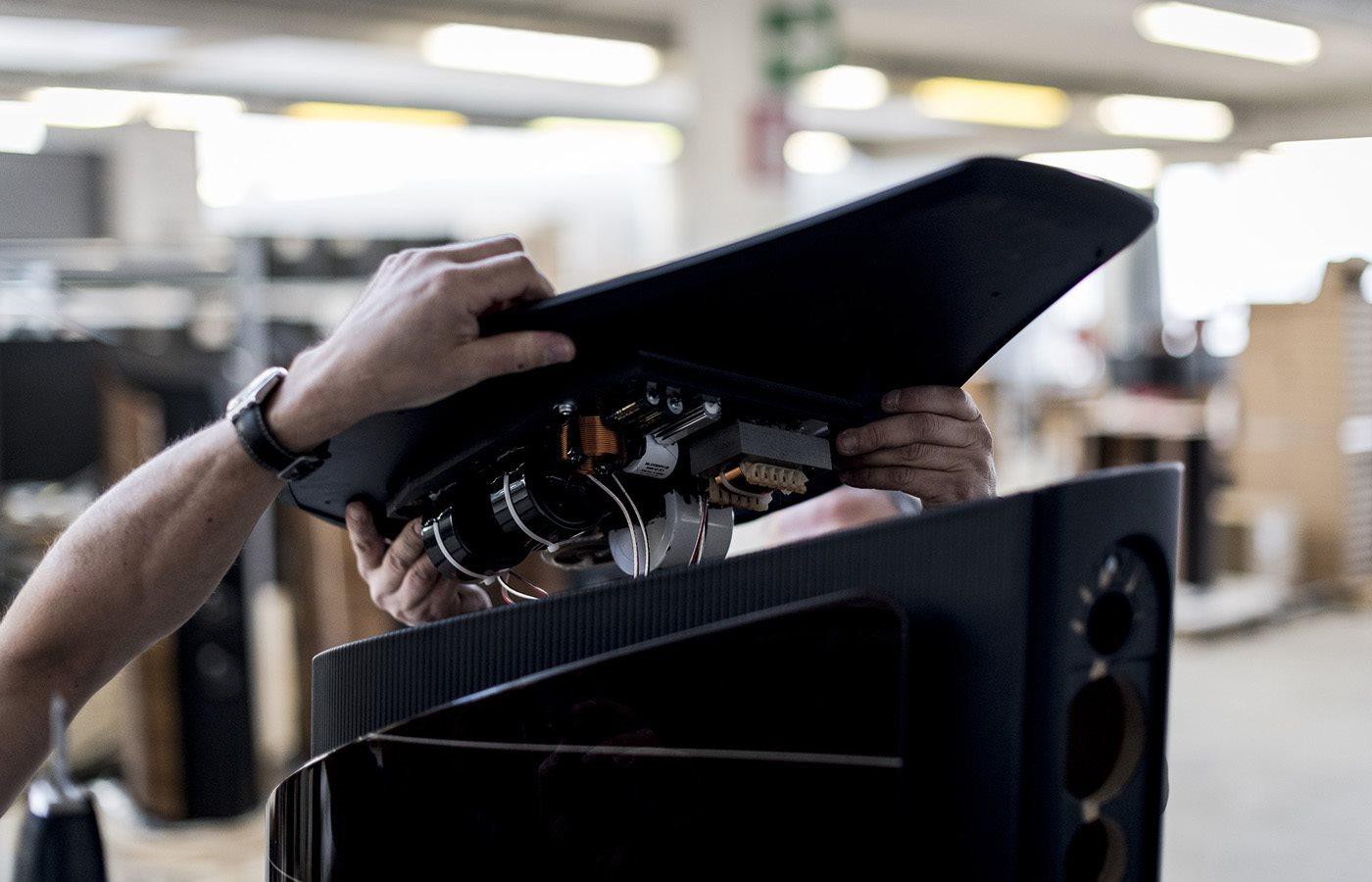

SOUND FIELD SHAPER
The patented “Sound field Shaper” technology, allows the control of the direct/reverberant radiation ratio of the Aida. The sound field shaping module can be SPL optimized.
SOUND FIELD SHAPER TWEETER
Sonus faber “Arrow Point” DAD 29XTR2. A Sonus faber designed 29 mm moving coil driver. The ultra-dynamic linearity is given by the new Neodymium motor system.
SOUND FIELD SHAPER MIDRANGE
Sonus faber M8XTR. A pair of Sonus faber designed 80 mm ultra-dynamic linearity midrange. CCAW wire is used on a controlled “eddy current free” voice coil. The dynamically linear magnetic field motor has focused field geometry. A special custom diaphragm is made with a blend of traditional cellulose pulp, Kapok, Kenaf and other natural fibers. A special coaxial anti-compressor is used, designed to remove cavity resonance and distortions.
CROSS-OVER
Non-resonant crossover, optimized amplitude/phase response for optimal space/time performance. “Paracross topology” for maximum transparency. The impedance at low frequencies is controlled for a clear and friendly amplifier performance. Double staggered transfer function low frequency/room interface optimized filter. Highest quality is used in terms of the components: last generation Mundorf Supreme Evo, Aluminium Oil and Silver/Gold/Oil capacitors, Mundorf Supreme resistors and Jantzen Cross-coils inductors. Cross-over frequencies: 55Hz – 150 Hz – 200Hz – 3000.
FREQUENCY RESPONSE
18 Hz – 35.000 Hz, Stealth Ultraflex included.
SENSITIVITY
92 db SPL (2.83V/1 m).
NOMINAL IMPEDANCE
4 ohm.
POWER HANDLING
100W – 1KW, without clipping.
DIMENSIONS
1725mm x 482mm x 780mm (HxWxD).
WEIGHT
330 Kg per pair – net weight
550 Kg per pair – est. shipping weight
