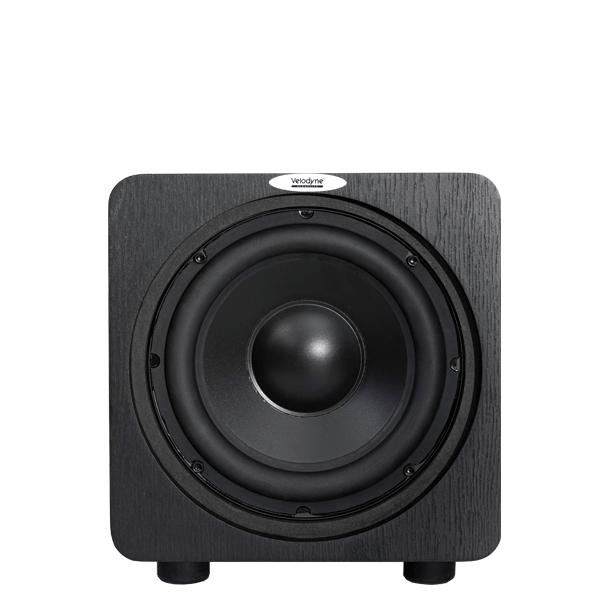

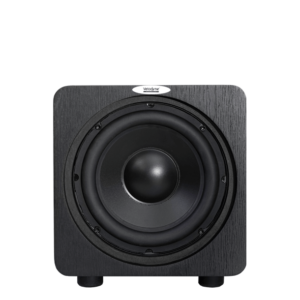

Velodyne Deep Blue DB-8

Hinta

899,00 (sis. alv)

Toimitusaika: 2-5 arkipäivää

Velodynen uuden Deep Blue-subbarisarjan kuopus. Suljettuun koteloon tehty tarkka ja nopea-ääninen, erittäin pienikokoinen murisija.

Pitkäiskuinen, uusi elementti. 350W RMS vahvistin. Tukeva kotelorakenne.Monipuoliset liitäntä- ja säätömahdollisuudet, mm. portaattomasti säädettävä vaihe.

Musta. Saatavissa myös koot  10″ 1099€ , 12″ 1349€ ja 15″ 1649€





Available in 8”, 10”, 12” and 15” these new DB subwoofer lineup is the predecessor of the successful SPL I series, a very small form factor closed box design.

The completely new rigidly braced MDF closed box design with a front firing woofer for impacting performance without any noise from the cabinet. Due to this small form factor it is easy to integrate into you listening set up. A high excursion driver with massive dual ferrite magnet and optimized internal motor technology, using a 4 layer voice coil for maximum output with extremely low distortion, following the Velodyne Acoustics design principles. Superior bass quality, for a deeper, more accurate bass performance. Line-level and speaker-level inputs let you connect this sub to just about any home audio system.

You can use the variable crossover and phase control to fine-tune the sub’s output, so the bass will blend in perfectly with the mids and highs coming from your main speakers, tailor the sub’s low-frequency response to the acoustics of your room.

Deep Blue DB-10

  • Woofer: 8-inch high excursion, double vented basket driver with PP inforced Membrane. Four Layer 2-inch / 52mm voicecoil
  • Frequency Response: 18 – 300 Hz (overall); 32 – 180 Hz (± 3dB)
  • Amplifier Class A/B: 800 watts dynamic, 300 watts RMS power
  • Low Pass Crossover: 50 Hz to 180 Hz (12 dB/Octave)
  • Input: Gold Plated Line in Stereo RCA, LFE in, Nickel Plated Highlevel
  • Output: Gold plated LFE /RCA
  • Dimensions WxHxD mm: 29,6 x 31,6 x 34,8 cm, Weight: 9 kg

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.

    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.

Technical Specification

DB-8 DB-10 DB-12 DB-15
Driver 8″ forward firing 10″ forward firing 12″ forward firing 15″ forward firing
Amplifier Class AB 800 watts dynamic
300 watts RMS power
850 watts dynamic
350 watts RMS power
1000 watts dynamic
450 watts RMS power
Frequency Response: Overall
Frequency Response: (± 3 dB)
18 – 300 Hz
32 – 180 Hz
16 – 280 Hz
28 – 180 Hz
15 – 250 Hz
26 – 140 Hz
13 – 200 Hz
23 – 120 Hz
Low Pass Crossover 50 Hz to 180 Hz (12 dB/Octave)
Phase 0 to 180 degrees
Cabinet Design MDF Closed Box with 52mm / 2” front Baffle
Magnet Structure Dual ferrite magnet motor
Woofer 8” high excursion double vented basket driver with PP inforced Membrane 10” high excursion double vented basket driver with PP inforced Membrane 12” high excursion double vented basket driver with PP inforced Membrane 15” high excursion double vented basket driver with PP inforced Membrane
Voice Coil Four Layer 2″ / 52mm Voicecoil Four Layer 2,5″ / 65mm Voicecoil Four Layer 3″ / 75mm Voicecoil
Input GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel
Output Gold plated LFE /RCA
Power Selector Off / Auto / On
Finishes Black
Dimensions (W/H/D) (includes feet and connectors) 29,6 x 31,6 x 34,8 cm 35 x 37 x 38,8 cm 42,5 x 44,5 x 48,8 cm
Weight (approx) 9 kg 11 kg 13 kg 23 kg
Shipping Weight (approx) 12,5 kg 14,8 kg 25,5 kg
