FEATURES

• MULTICHANNEL SURROUND
• DTS HD Master / DTS:X / DTS NEO:6: • / – / •
• Dolby TrueHD / Dolby Atmos / Dolby ProLogic II: • / – / •
• Multichannel Stereo: •
• Compressed audio enhancer: MDAX2: •
• Audyssey: MultEQ
• Audyssey Dynamic EQ / Dynamic Volume: • / •

NETWORK / SOURCES

• Network Audio Streaming: •
• HEOS Multiroom integrated: •
• Voice Control – Works with Amazon Alexa*: •
• Lossy formats MP3 / WMA / AAC: • / • / •
• Lossless formats FLAC / ALAC / WAV: • / • / •
• DSD streaming: • (2.8 MHz / 5.6 MHz)
• FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: • / • / •
• Gapless playback: • (FLAC, WAV, ALAC, DSD)
• AirPlay audio streaming: •
• Internet Radio (TuneIn): •
• Spotify Connect, Deezer, TIDAL, Napster, Soundcloud *: • / • / • / • / •
• Compatible with Remote APP for smartphones: Android/iOS
• Ethernet / Wi-Fi (2.4GHz / 5GHz): • / • (dual antenna / dual band)
• Network: (IP-control / update): • / •
• Front Inputs: HDMI / USB: • / •
• USB Audio: •
• FM / AM tuner: • / •
• Bluetooth: •

HDMI

• 4K 60Hz 4:4:4 resolution / HDCP 2.2: • / •
• Dolby Vision compatible / Hybrid Log Gamma (HLG): • / •
• HDMI pass-through on stand-by: •
• 3D video pass-through: •

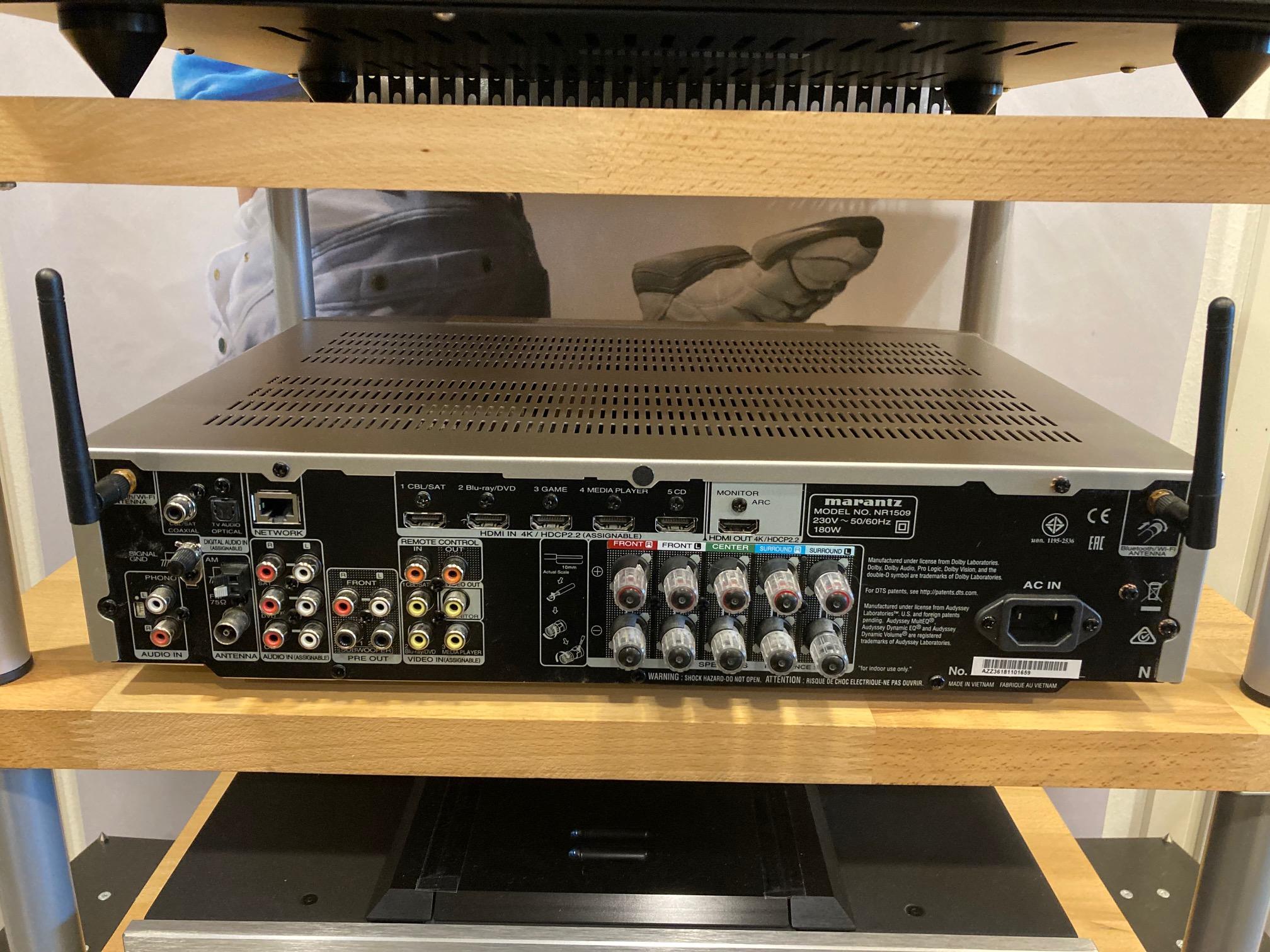

INPUTS/OUTPUTS

• VIDEO
  • Composite In / Out: 3 / 1
  • Component In / Out: 2 / 1
  • HDMI In / Out: 5+1 / 1
• AUDIO
  • Analog In / Out : 3 / 0
  • Phono Input: 1
  • Digital Optical In: 1
  • Digital Coaxial In: 1
  • Multichannel Pre-out: • (2.2)
  • Zone Audio Pre-out: –
  • Subwoofer out: 2

SPECIFICATIONS

• Number of Poweramps: 5
• Power output per Channel:
  • 6 ohm, 1kHz, 1%, 1ch Drive: 85 W
  • 6 ohm, 1kHz, 0.7%, 2ch Drive: 60 W
  • 8 ohm, 20 Hz – 20kHz, 0.08%, 2ch Drive: 50 W
• Audio Signal to Noise Ratio: 98 dB

GENERAL

• System remote control: RC033SR
• Web Interface for set-up: •
• Power consumption in W: 250
• Power consumption no-sound (ECO …on/off) in W: 25 / 35
• Standby consumption in W: 0.2 (with CEC 0.5)
• Dimensions (W x D x H): 440 x 376 x 105 mm
• Weight: 8.2kg
