Specifications

Wireless Speaker System

• Design Philosophy And Core Technology:
  • 5.8GHz Wireless Uncompressed Technology
  • DAC ESS Sabre 9018
  • Support Music And Movie Mode
  • Headphone Amplifier
  • Support USB Upgrade
  • Pre Delay Setting
  • Roon Tested
  • Touch Control

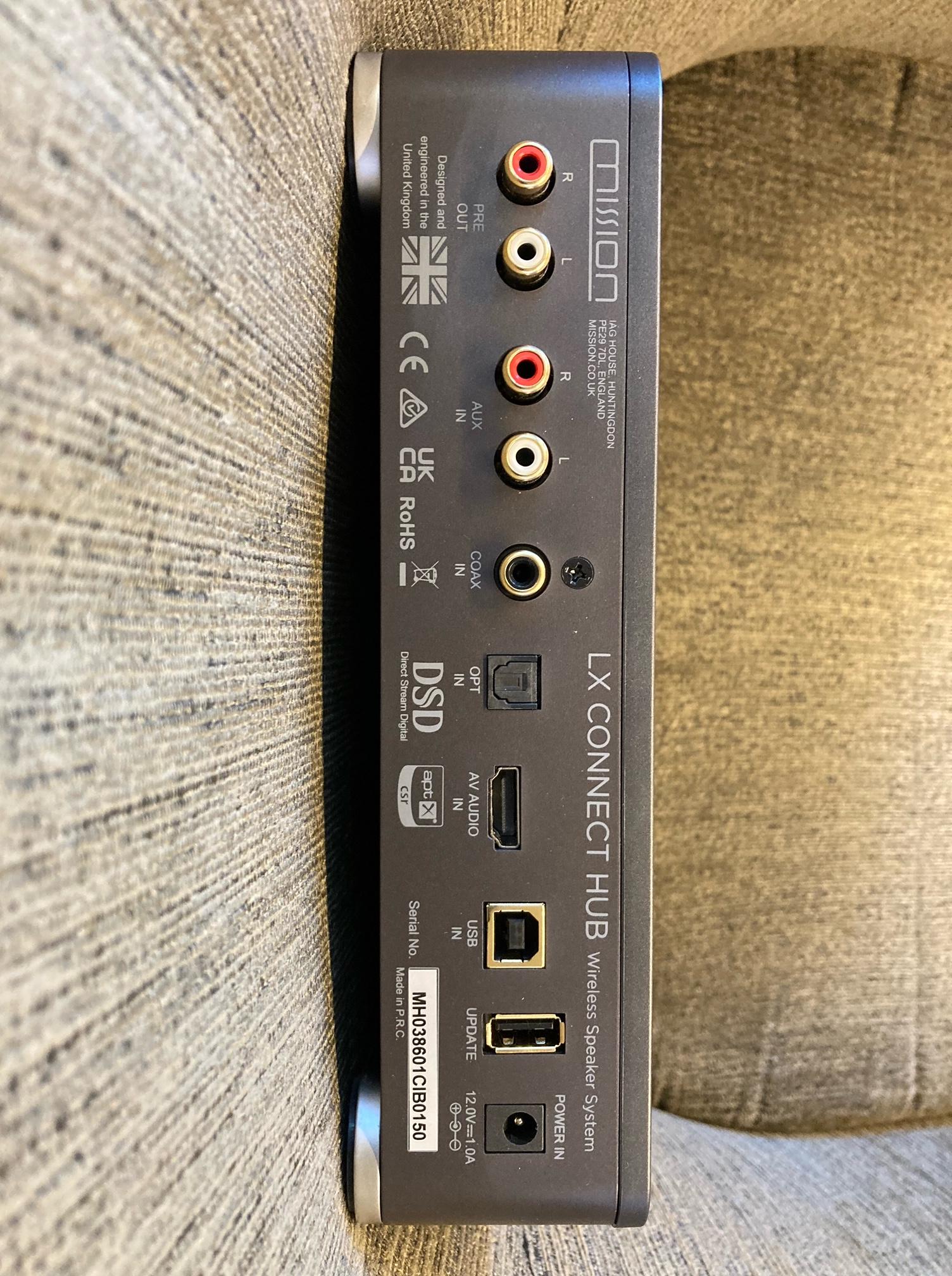

• Analogue Input: RCA (AUX)
• Digital Input: OPT, COAX, PC USB, Bluetooth, AV Audio
• Analogue Output: RCA Pre Out

Pre Amplifier (hub):

• HDMI-ARC
• Input Sensitivity: 300mV (AUX IN, volume = MAX)
• Input Impedance: 13K (AUX IN)
• Variable Output Voltage: 0 – 3.2V
• Output Impedance: 100 ohm
• Frequency Response: 20Hz-20kHz (+/-0.3dB)
• Signal-to-noise Ratio: > 100dB (AUX IN, A-weighted)
• (S/N): > 110dB (digital Inputs, A-weighted)
• Total Harmonic Distortion:
  • < 0.001% (digital sources)
  • < 0.005% (analogue sources)
• Sampling Rate:
  • 24bit – 192kHz (OPT, COAX)
  • 32bit – 384kHz (USB, PCM)
  • 2.8M for DSD64, 5.6M for DSD128
  • 11.2M for DSD256 (USB, DSD)
• Digital Filters: Fast Roll-off, Slow Roll-off, Minimum Phase

Active Speakers:

• Enclosure Type: Bass Reflex
• Transducer Complement: 2-way
• Drive Unit:
  • Bass Unit: 130mm Composite Fibre Cone
  • Treble Unit: 25mm Microfibre Dome
• AV Shielded: No
• Rated Power Output: 60W
• Peak Power Output: 100W
• Peak SPL: 99dB
• Frequency Response (+/-3dB): 58Hz – 20kHz
• Bass Extension (-6dB): 52Hz
• Crossover Frequency: 3.2kHz
• Wireless Reception Distance: 20m
• Cabinet Volume: 8.2L
• Dimensions:
• Speaker
  • Height (on feet): 305mm
  • Width: 200mm
  • Depth (with terminals): (250+15)mm
• Hub:
  • Height (on feet): 55mm
  • Width: 225mm
  • Depth (with terminals): 231mm
• System:
  • Carton Size: 545 x 440 x 400mm
• Net Weight:
  • 6.55kg x 2 (speakers)
  • 1.75kg (hub)
  • Gross Weight: 17.8kg
