MasterTracker on tehty V-Twin Dual Magnet-rakenteella. Toimintaperiaatteeltaan Moving Magnet isolla ulostulotasolla 3mV. Micro-Line neulahionta. Hyvin vaimennettu alumiinirunko.
MoFi cartridges are designed by looking at where a record starts: On a cutting lathe like the model used at Mobile Fidelity Sound Lab. MasterTracker features a V-Twin dual-magnet generator that mirrors the layout of the cutting head that originally makes a record’s grooves. Employing two low-mass, powerful magnets aligned in a V formation parallel with the record grooves, MasterTracker accurately extracts music from your LPs and features stellar tracking ability.

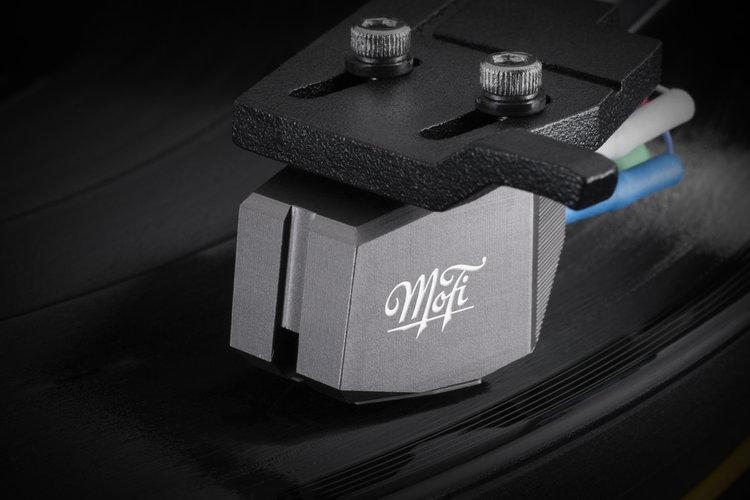

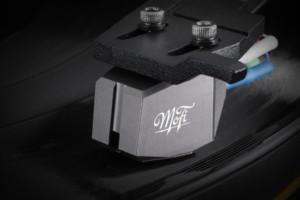

The well-damped billet aluminum body controls resonances for tight, accurate bass reproduction. MasterTracker has the lightest-weight magnets in the Tracker Series, delivering the kind of detailed, open performance normally attributed to high-end moving-coil cartridges.

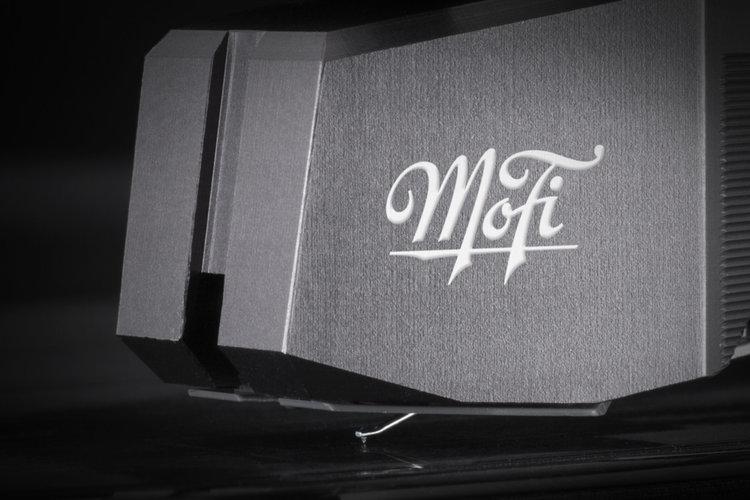

By using a Micro-Line diamond stylus shaped like the cutting head of a record lathe, MasterTracker traces vinyl groove walls with microscopic precision.
Tekniset tiedot
• V-Twin dual-magnet generator
• Micro-Line stylus with tapered cantilever
• Well-damped billet aluminum body
• Ohno continuous cast copper coils
• 3mV output
•Type Dual Magnet (MM) Stereo
•Stylus: Micro-Line
•Output Voltage: 3mV
•Frequency Response: 20–25,000Hz
•Weight: 9.7g
•Tracking Force: 1.8–2.2g
•Impedance: 47kOhm
•Capacitance: 100pF
Compliance
Static compliance : 40 x 10e-6/dyne
Dynamic compliance : 10 x 10e-6/dyne
