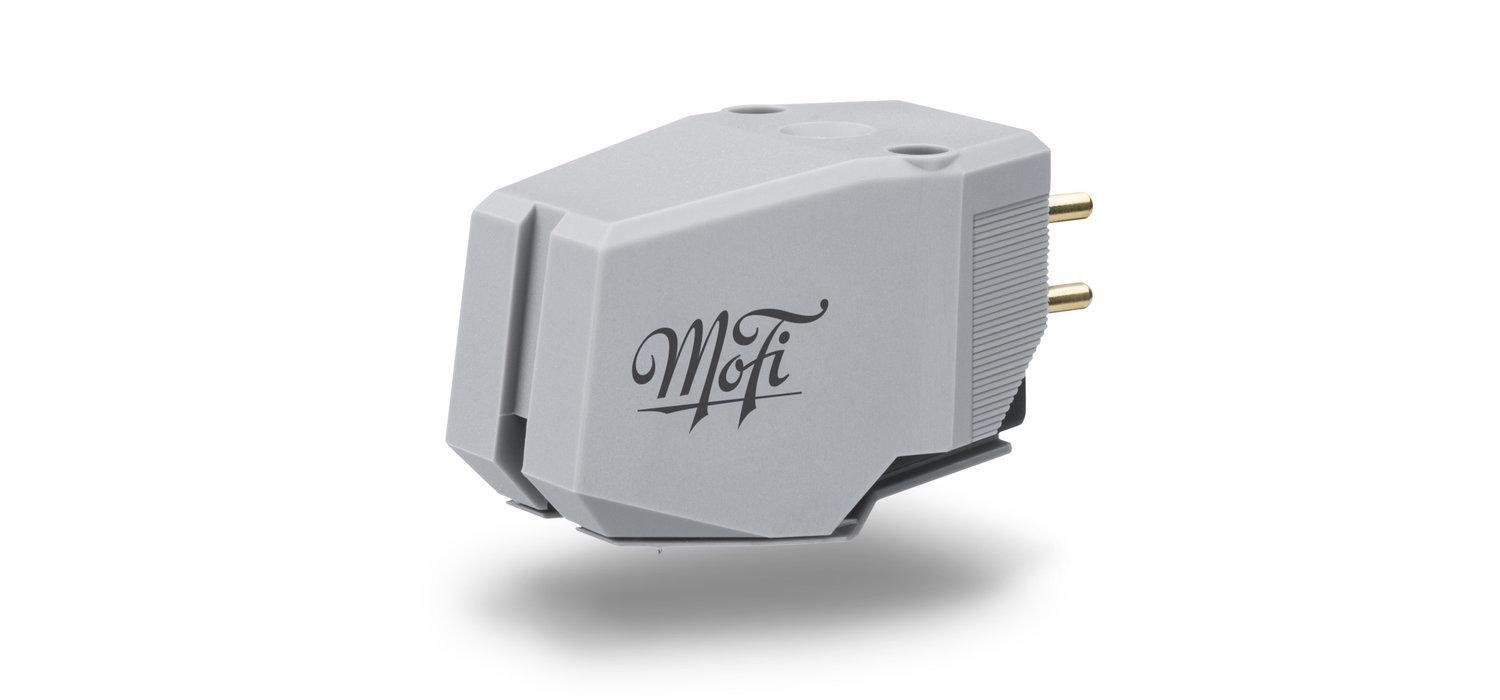

StudioTracker on tehty V-Twin Dual Magnet-rakenteella. Toimintaperiaatteeltaan Moving Magnet isolla ulostulotasolla 3,5mV. Elliptinen neulahionta.
MoFi cartridges are designed by looking back at where a record starts: On a lacquer cutting lathe like the model used at Mobile Fidelity Sound Lab. StudioTracker features a V-Twin dual-magnet generator that mirrors the layout of the cutting head that originally made a record’s grooves.
Employing two low-mass, powerful magnets aligned in a V formation parallel with the stereo record grooves, StudioTracker accurately extracts precious details from your LPs.
With a polymer body and elliptical stylus, StudioTracker offers surprising bang-for-your-buck value and a rich sound distinguished with a smooth, slightly forgiving top end.
Tekniset tiedot
•V-Twin dual-magnet generator
• Elliptical stylus
• Polymer body
• 3.5mV output
•Dual Magnet (MM) Stereo
•Stylus: Elliptical
•Output Voltage: 3.5mV
•Frequency Response: 20–20,000Hz
•Weight: 6.4g
•Tracking Force: 1.8–2.2g
•Impedance: 47kOhm
•Capacitance: 100pF
Compliance
•Static compliance : 35 x 10e-6/dyne
•Dynamic compliance : 8 x 10e-6/dyne
