MoFi UltraTracker on tehty V-Twin Dual Magnet-rakenteella. Toimintaperiaatteeltaan Moving Magnet isolla ulostulotasolla 3,5mV. Nude-elliptical neulahionta. Hyvin vaimennettu alumiinirunko.

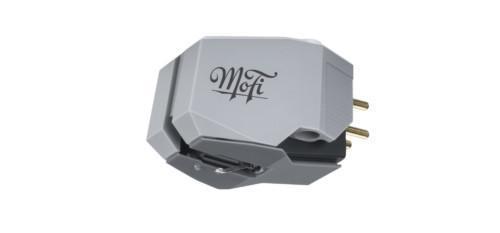

MoFi cartridges are designed by looking at where a record starts: On a cutting lathe like the model used at Mobile Fidelity Sound Lab. UltraTracker features a V-Twin dual-magnet generator that mirrors the layout of the cutting head that originally makes a record’s grooves. Employing two low-mass, powerful magnets aligned in a V formation parallel with the record grooves, UltraTracker features excellent tracking ability.
The well-damped billet aluminum body controls resonances for tight, accurate bass reproduction. UltraTracker delivers finely tuned wide-bandwidth audio, with extension at both frequency extremes and no smearing of detail.

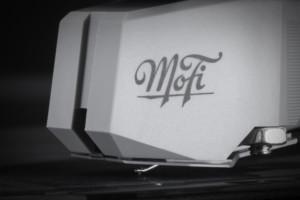

By using a nude-elliptical diamond stylus, UltraTracker easily tracks complex dynamic passages. You’ll hear superb detail and experience musical emotionalism that will send shivers down your spine.
Tekniset tiedot
• V-Twin dual-magnet generator
• Nude-elliptical stylus
• Well-damped billet aluminum body
• 3.5mV output
•Type Dual Magnet (MM) Stereo
•Stylus Nude-Elliptical
•Output Voltage: 3.5mV
•Frequency Response: 20–25,000Hz
•Weight: 9.7g
•Tracking Force: 1.8–2.2g
•Impedance: 47kOhm
•Capacitance: 100pF
Compliance
Static compliance : 35 x 10e-6/dyne
Dynamic compliance : 10 x 10e-6/dyne
