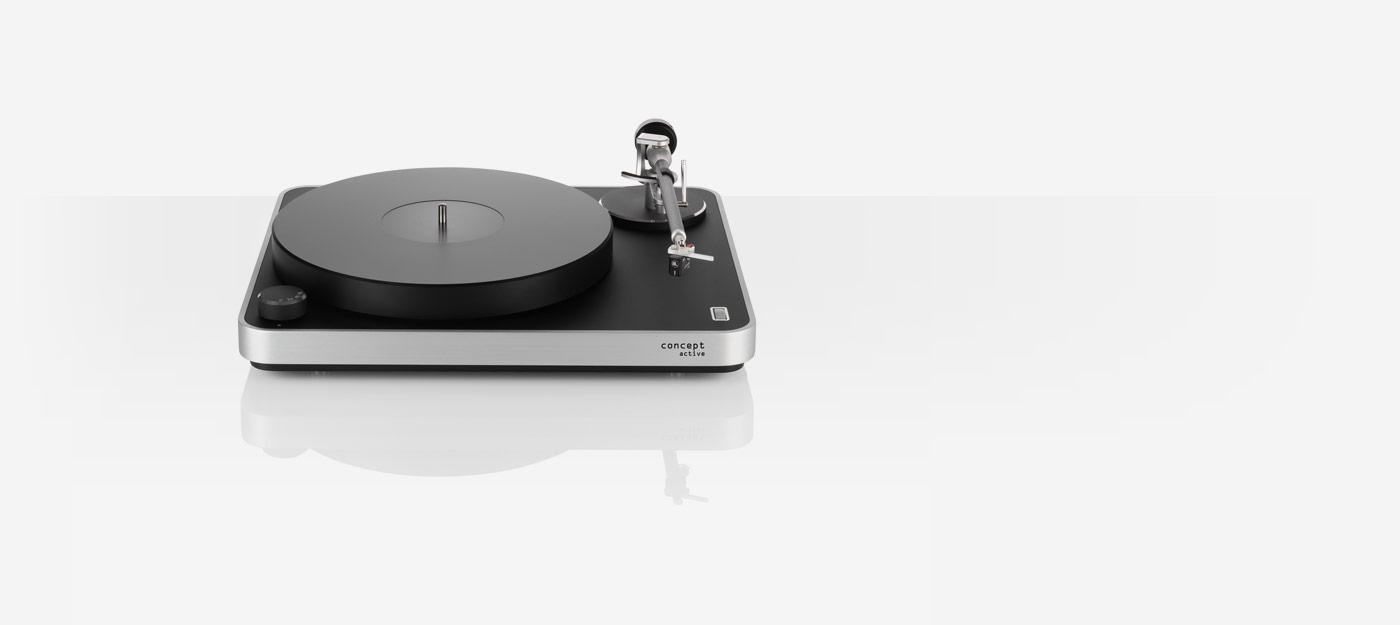

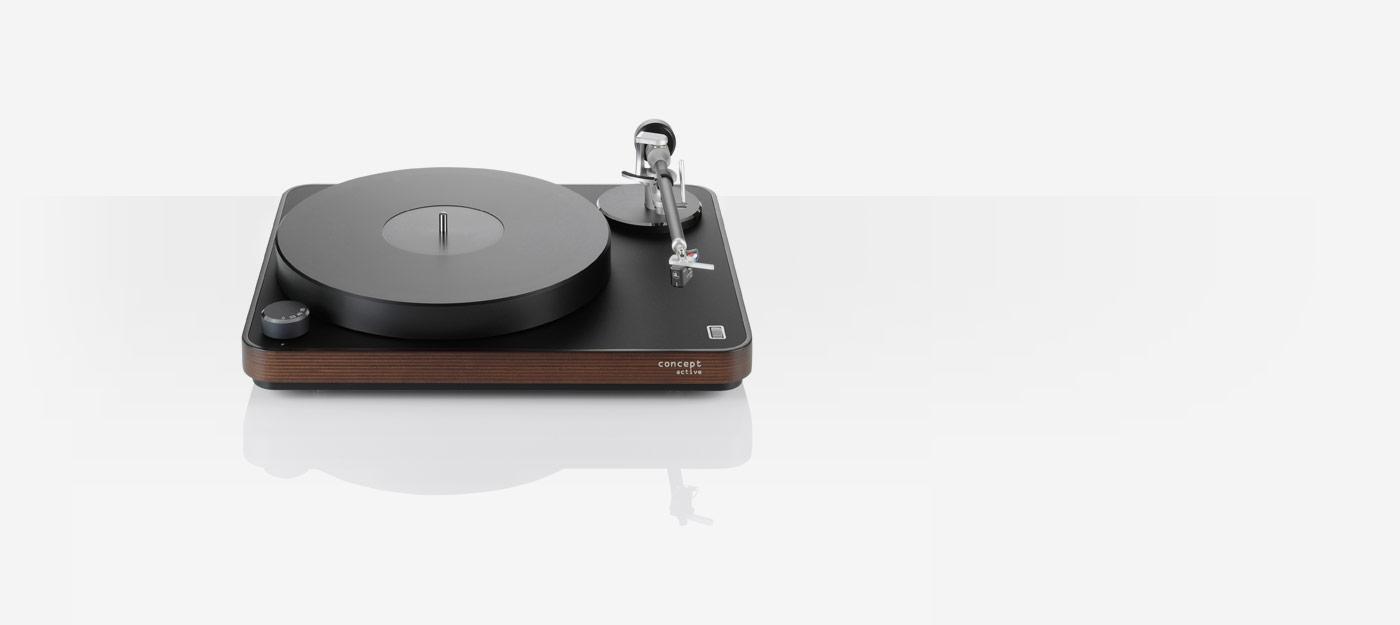

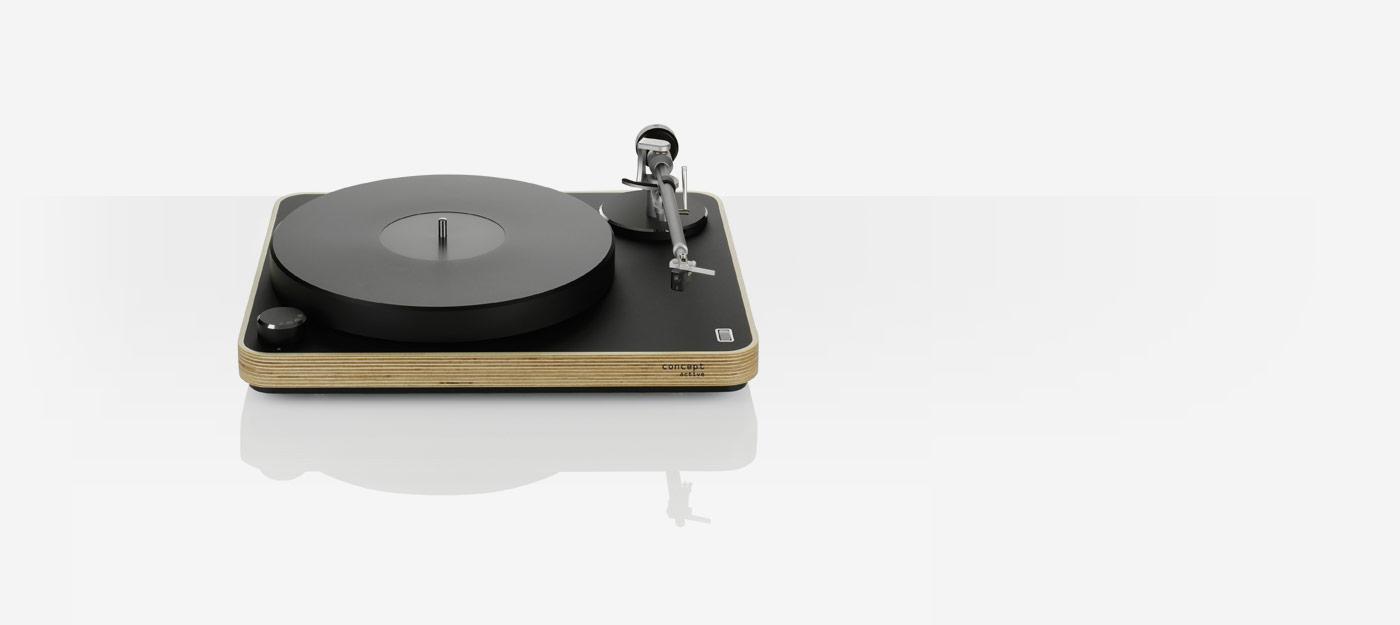

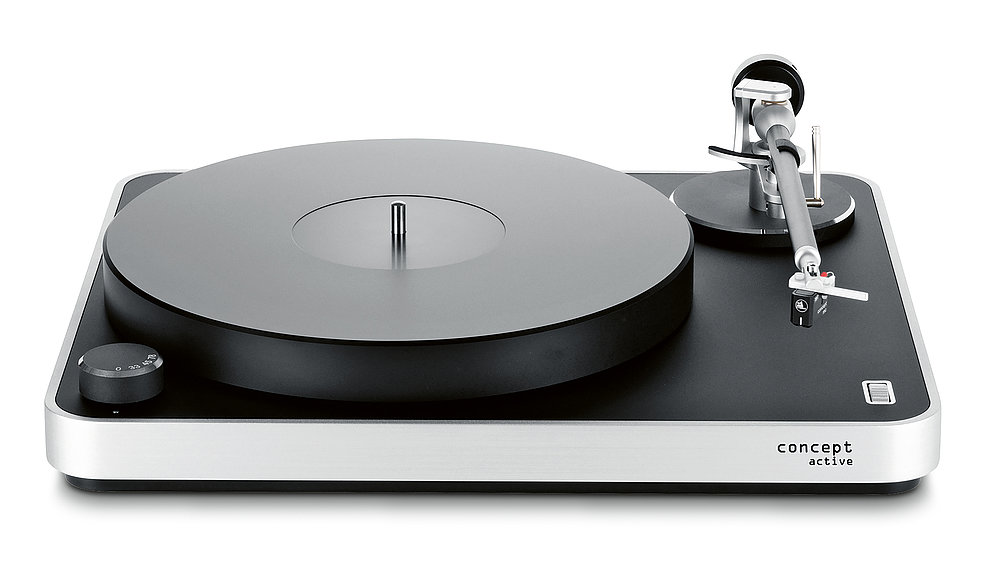

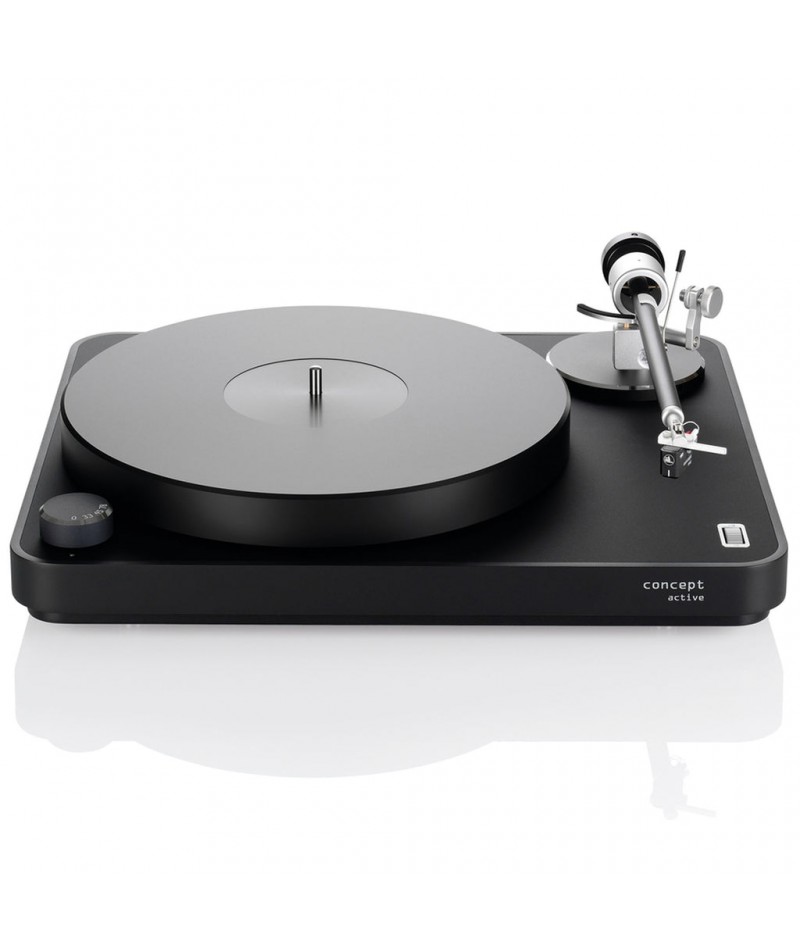

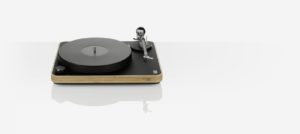

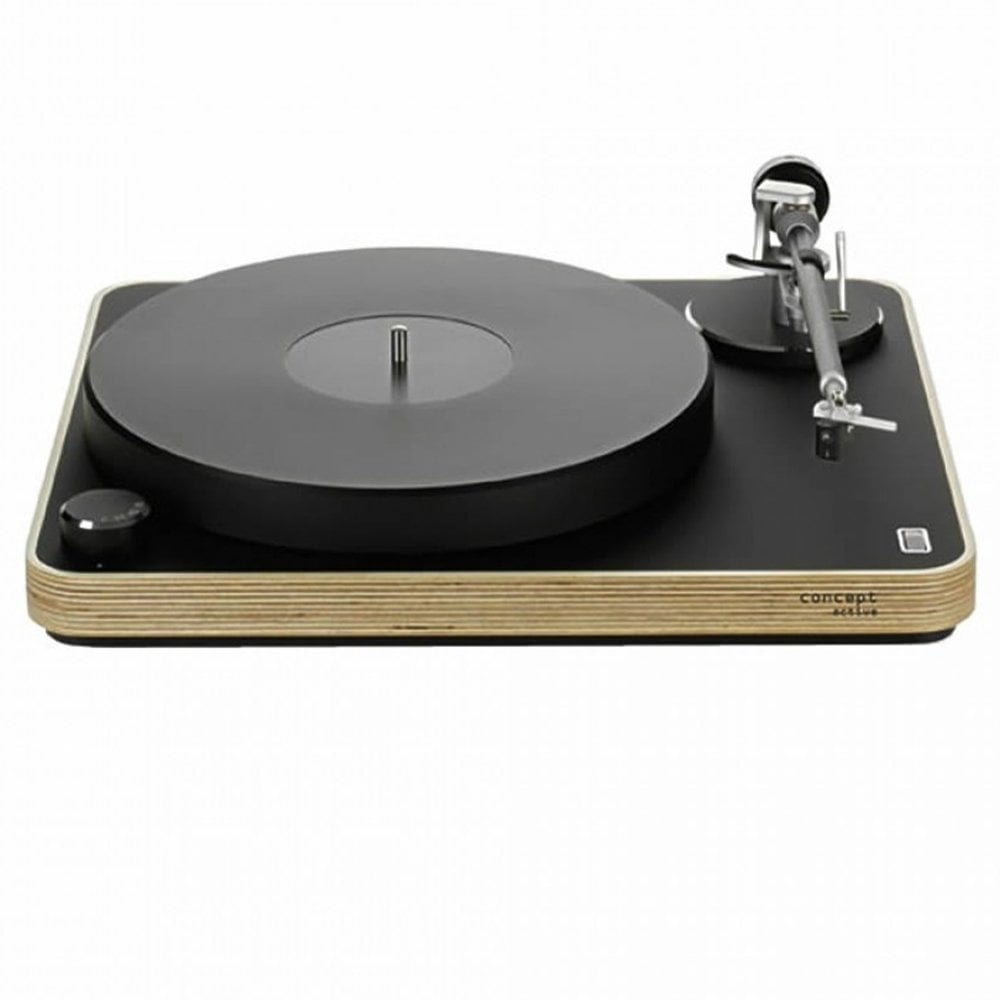

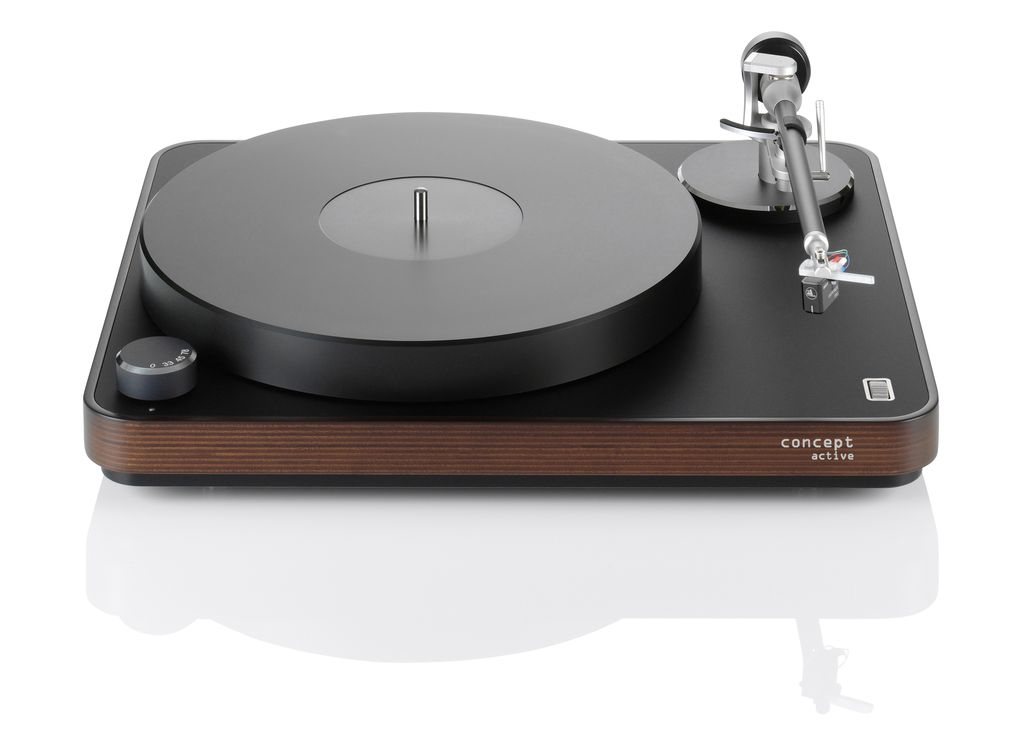

Clearaudio Concept Active

Concept Active on monipuolinen levysoitinkokonaisuus. Saksalaisen levysoitinspesialistin innovatiivinen uutuus.

Magneettilaakeroidun Concept-äänivarren ja Concept-soittimen peruskonseptin ympärille on rakennettu RIAA-vahvistin, laadukas kuulokevahvistin kuulokkeille ja kiinteä/säädettävä ulostulo, joka mahdollistaa kytkemisen integroidun vahvistimen lisäksi myös suoraan päätevahvistimeen tai aktiivikaiuttimiin.

Concept V2 MM-äänirasialla

Viimeistelyt musta hopeisella rungolla. Lisävarusteena pölysuoja 190€.

Soittamaton malli kpl specialhintaan 1790€

Smart Power 12V akkuvirtalähde 850€. Malli kpl Concept Active MM-ostajalle hintaan 500€

All critical parameters from cartridge tracking weight to anti-skating are preadjusted in our factory. With the concept active’s integrated Clearaudio phonostage, move between headphone listening and listening over amp through your speakers.

The excellent integrated headphone amplifier is suitable for all premium, dynamic headphones.

Total weight

Approx. 7.6 kg (black/silver)
Approx. 8 kg (wood)

Dimensions

Width: 420 mm
Depth: 350 mm
Height: 125 mm

Speed ranges

33 ⅓, 45 and 78 rpm

Material/color

Black with silver chassis

Package combination

Cartridge: Optional with Concept MM

Tonearm: Concept

Clearaudio Concept Active manual

” Sound 4 stars – Features 5 stars – Build 5 stars ” WHAT HI-FI (May 2021)

” Recommended Components 2022 Award ” STEREOPHILE

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.

Construction Details	Resonance-optimised body, highly compressed wood chassis, core of natural medium-density wood fibre within an aluminium surround and upper layer incorporating a high tech synthetic compound
Speed ranges	33 ⅓, 45 and 78 rpm
Drive unit	Decoupled and resonance damped DC motor, flat belt-drive and plug-in power supply unit designed for worldwide use with all networks and power frequencies
Bearing	Polished and tempered steel shaft in a sintered bronze bushing, runs on a mirror of Teflon
Platter	Synthetic material, CNC-precision milled surface, 30mm thickness / 1.18 inch. Aluminium subplatter.
Speed accuracy (measured)	± 0.05 %
Power consumption	Max. consumption: 5.5 Watt Off mode: 0.0 Watt
Of the integrated phonopreamp by 1kHz	+52 dB (MM mode) +72 dB (MC mode)
Amplification of the integrated phonopreamp by 1kHz	< 0,02 % (MM mode) < 0,03 % (MC mode)
THD of the integrated phonopreamp	-74 dB (MM mode) -64 dB (MC mode)
S/N of the integrated phonopreamp	± 0,5 dB
RIAA accuracy of the integrated phonopreamp	47 kOhm
Max. output voltage of the integrated phonopreamp	< 10V
Total weight	Approx. 7.6kg (incl. tonearm and cartridge) 8,0kg with wood finish
Dimensions (W/D/H in mm)	Approx. 420 x 350 x 125 (with tonearm)
