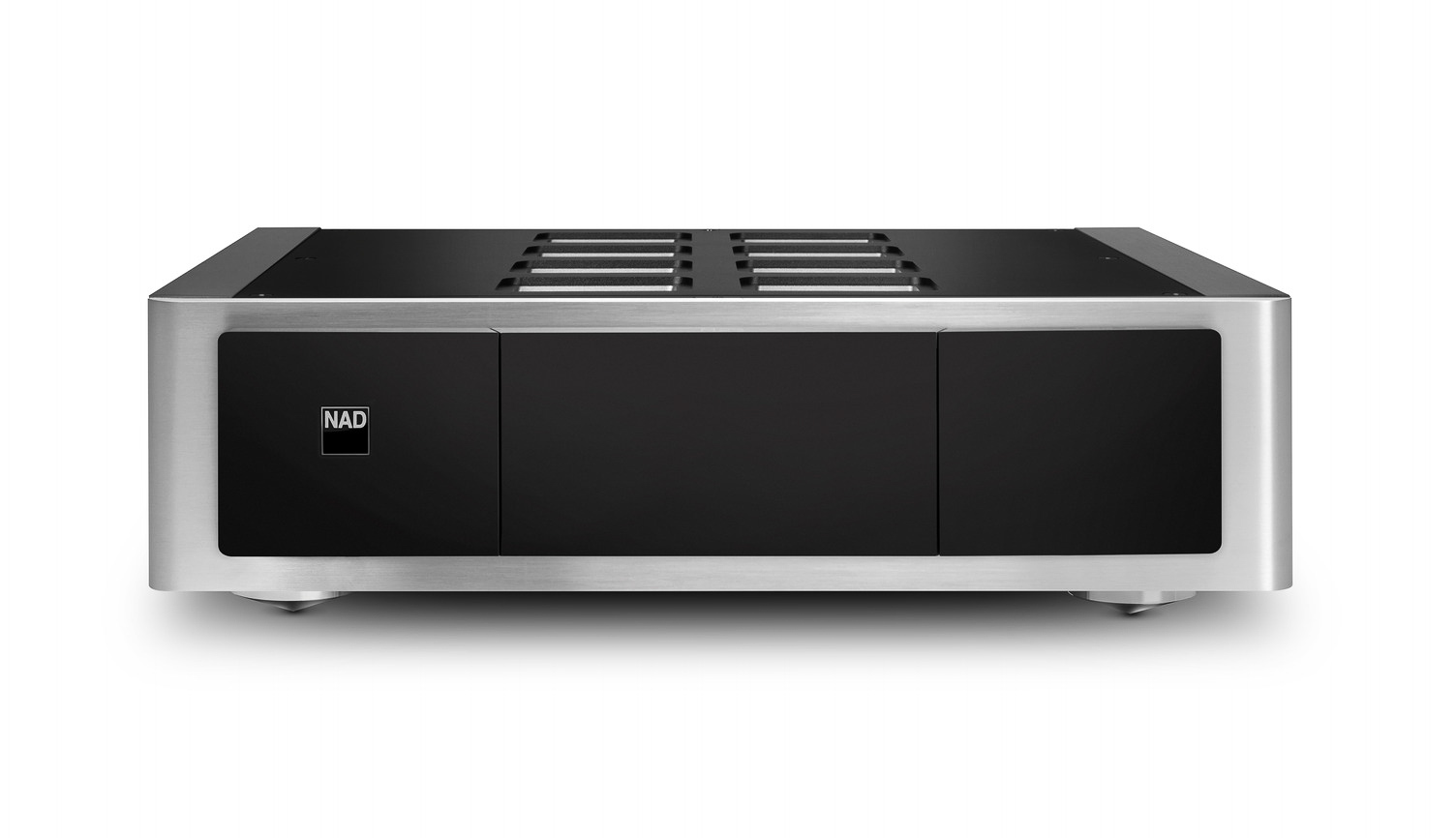

NAD M23

Hinta

3 999,00 (sis. alv)

Toimitusaika: 2-5 arkipäivää

NAD Masters-sarjan päätevahvistin. Eigentakt-toteutuksella tehty tehokas vahvistin tuottaa 2x200W 8ohm ja 2x380W 4ohm jatkuvan tehon. Monokytkettynä 700W 8ohm. RCA- ja XLR-tuloliitännät.



Building on NAD’s long tradition of identifying and developing cutting-edge amplification technology, the M23 HybridDigital Stereo Power Amplifier features Purifi Audio’s Eigentakt™ design, a once-in-a-decade innovation that virtually eliminates harmonic and intermodulation distortion. Noise is inaudible, for a completely black background and exquisite micro-detail. Conservatively rated at 2x200W continuous into 8 ohms and 2x380W into 4 ohms, the M23 can deliver live performance levels through any loudspeaker. With its unique combination of features, performance, and value, the M23 represents the new benchmark for the stereo power amplifier.

The M23 employs Eigentakt™ class-D amplifier modules manufactured by NAD under license from Denmark’s Purifi Audio. Purifi’s load-invariant design provides wide, flat frequency response, even into challenging loudspeaker loads. Noise, harmonic distortion, and IM distortion are virtually unmeasurable at all frequencies and output levels. Another benefit of the Eigentakt™ design is extremely low output impedance and correspondingly high damping factor, for iron-clad control of the loudspeaker output. NAD combines the Eigentakt™ design with our own sophisticated switched-mode power supply, which can provide additional reserves of current when needed. Amazingly powerful and transparent, the M23 can deliver 2x260W of peak power into 8 ohms and 2x520W into 4 ohms.

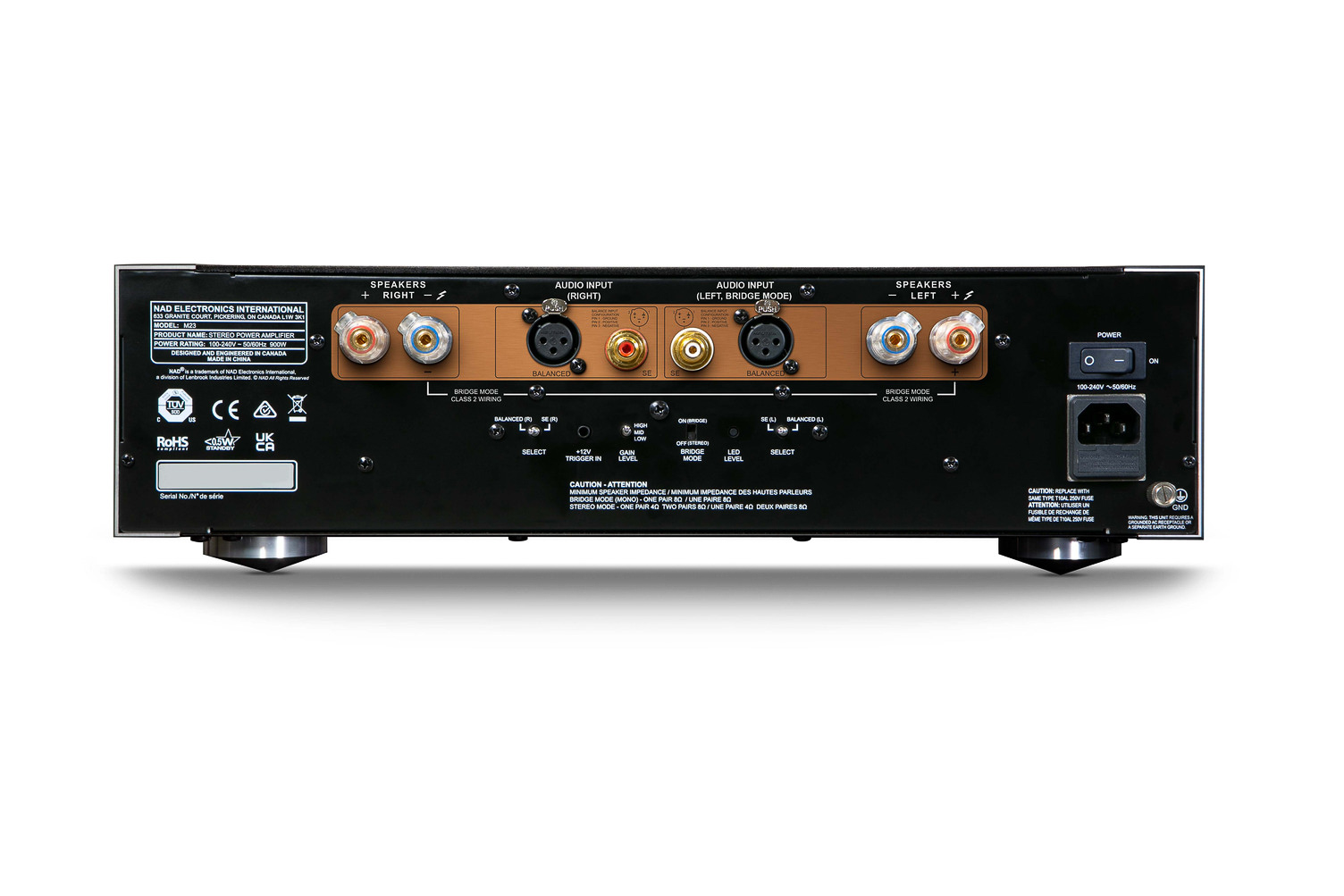

Equipped with single-ended RCA and balanced XLR auto-sensing inputs, three-position gain-control switch, and 12V trigger input, the NAD Masters M23 HybridDgital Stereo Power Amplifier can easily be integrated into a high-performance separates system. Two M23 amplifiers operating in bridged mode can be paired together, each delivering 700W of continuous power into 8 ohms. The M23 amplifier can also be paired with NAD’s award-winning Masters M33 BluOS Streaming Amplifier. With the two Eigentakt™ amplifiers operating in bridged mode, the M33/M23 combination will deliver a staggeringly powerful 700Wpc continuous output.

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.

    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.
  • Input impedance (R and C)
  • Single-ended: 56 kohms + 200 pF Balanced: 56 kohms +200 pF
  • Frequency response (1W into 8 Ohms)
  • ±0.06dB (20-20kHz)
  • Rated output power into 8 Ohms and 4 ohms(Stereo mode) 80 W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
  • >200W into 8 Ohm, >380W into 4 Ohm
  • Rated output power into 8 Ohms (Bridge mode, ref. 20 Hz-20 kHz at rated THD, both channels driven)
  • >700W into 8 Ohm
  • THD (20 Hz – 20 kHz)
  • <0.00069% (XLR), <0.0013% (RCA)
  • Signal-to-Noise Ratio
  • >101.7 dB (1W into 8 Ohm)
  • >127 dB (200W into 8 Ohm)
  • Clipping power (Stereo mode, at 1 kHz 0.1 % THD)
  • >210 W (0.1 % THD 1 kHz 8 ohms)
  • Clipping power (Bridge mode, at 1 kHz 0.1 % THD)
  • > 770W
  • IHF dynamic power (Stereo mode, at 1 kHz)
  • 8 ohms: 260 W
  • 4 ohms: 520 W
  • IHF dynamic power (Bridge mode, at 1 kHz)
  • 1017W
  • Peak output current
  • >25 A (in 1 ohm, 1 ms)
  • Damping factor
  • >800 (ref. 8 ohms, 20 Hz to 6.5 kHz)
  • Frequency response
  • ±0.06 dB (stereo), ±0.054 dB (bridged) 20 Hz -20 kHz -3 dB at 60 kHz
  • Channel separation
  • High gain RCA: >97dB, Low gain XLR: >115dB (1kHz)
  • High gain RCA: >75dB, Low gain XLR: >96dB (10kHz)
  • Stereo Mode input sensitivity (for 200 W in 8 ohms)
  • Low gain: 4.5V (low gain), 2.5V (Mid gain), 1.4V (High gain)
  • Stereo Mode Gain
  • 19dB (low), 23.9dB (mid), 29.2 (high)
  • Bridge Mode Gain
  • 25.1dB (low), 30dB (mid), 35.2 (high)
  • Standby Power
  • <0.5W

DIMENSIONS AND WEIGHT

  • Gross dimensions (W x H x D)
  • <0.5W
  • Net Weight
  • 9.7 kg
  • Shipping Weight
  • 17.5 kg
