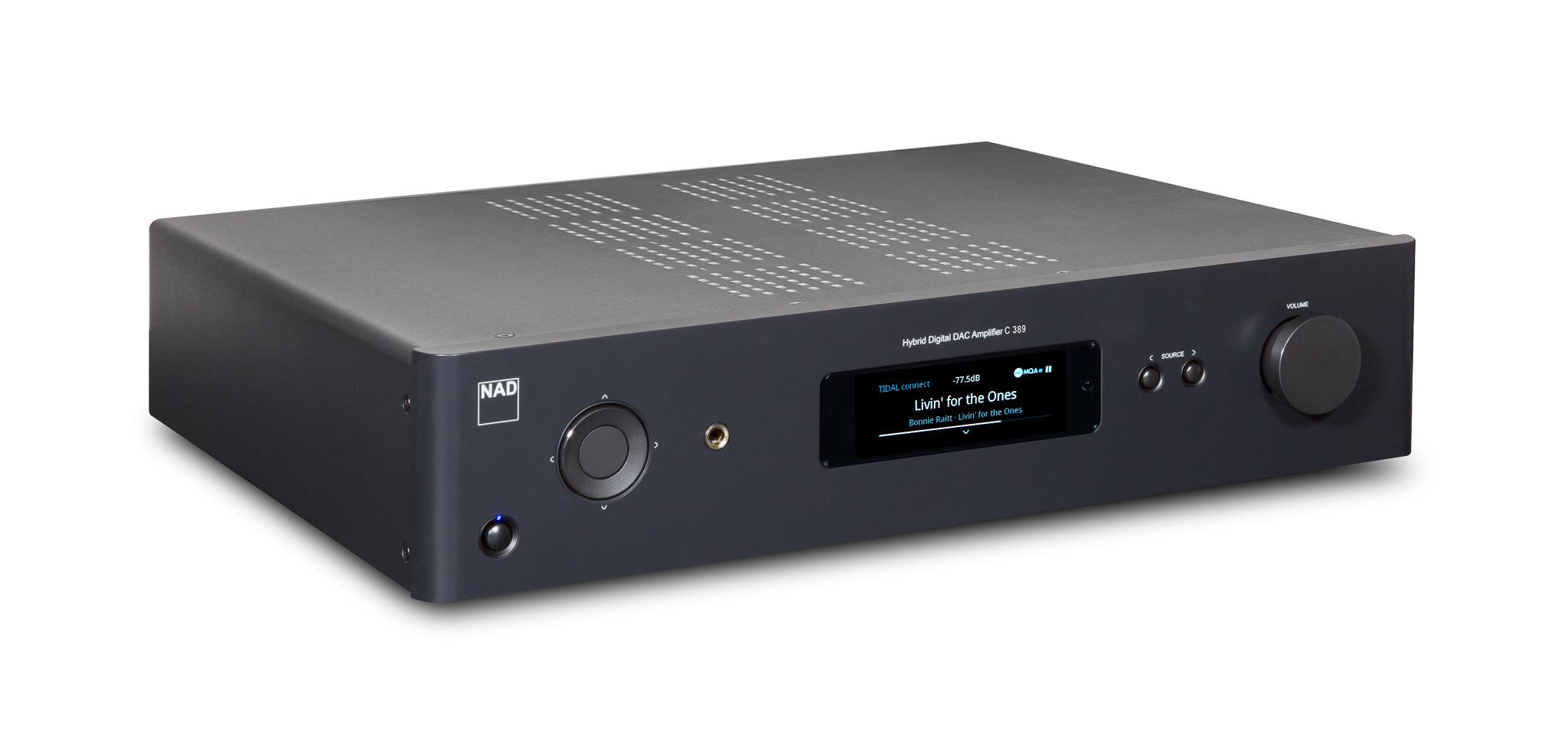

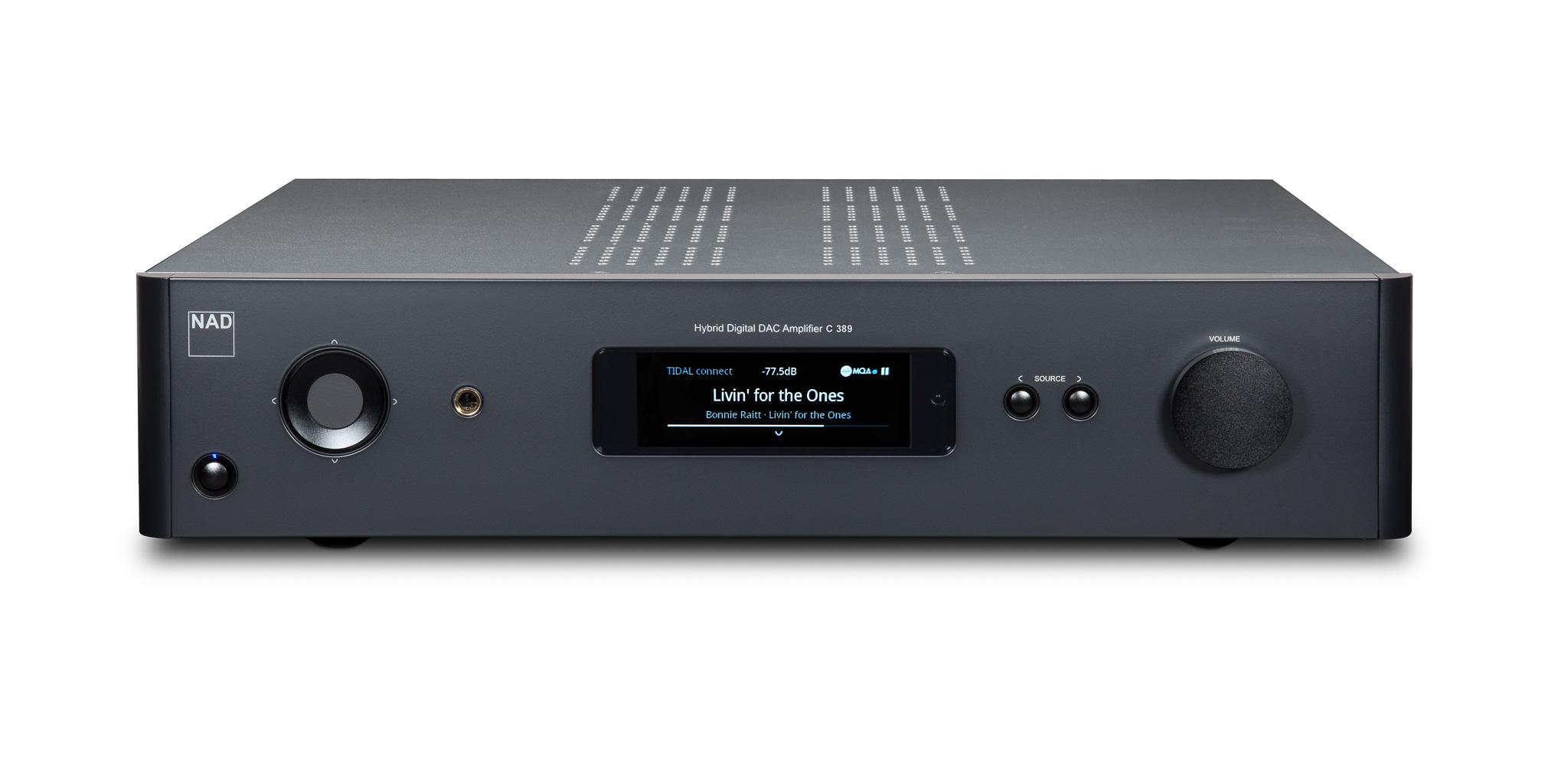

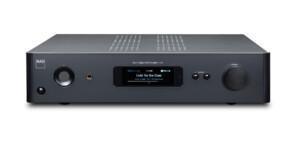

NAD-uutuusvahvistin, jossa mm.moduulipaikka MDC2 BluOS-D moduulille. Se pitää sisällään verkkosoittimen, Dirac-huonekorjauksen sekä monihuonemahdollisuudet. Teho 2x130W jatkuva ja 2x210W musiikki. ESS Sabren DA-muunnin. Monipuoliset liitännät – mm.HDMI eARC, pre out ja MM-levysoitintulo. Kauko-ohjain.
- Customized HybridDigital UcD amplifier in fully balanced bridged configuration
- Continuous Power: 130 Watts per channel into 8/4 ohms
- Instantaneous Power: 210 W into 8 ohms, 300 W into 4 ohms, 350 Watts per channel
- Vanishingly low harmonic and intermodulation distortion
- Nearly unmeasurable noise through the entire audioband
- Dual MDC2 ports for expanded functionality

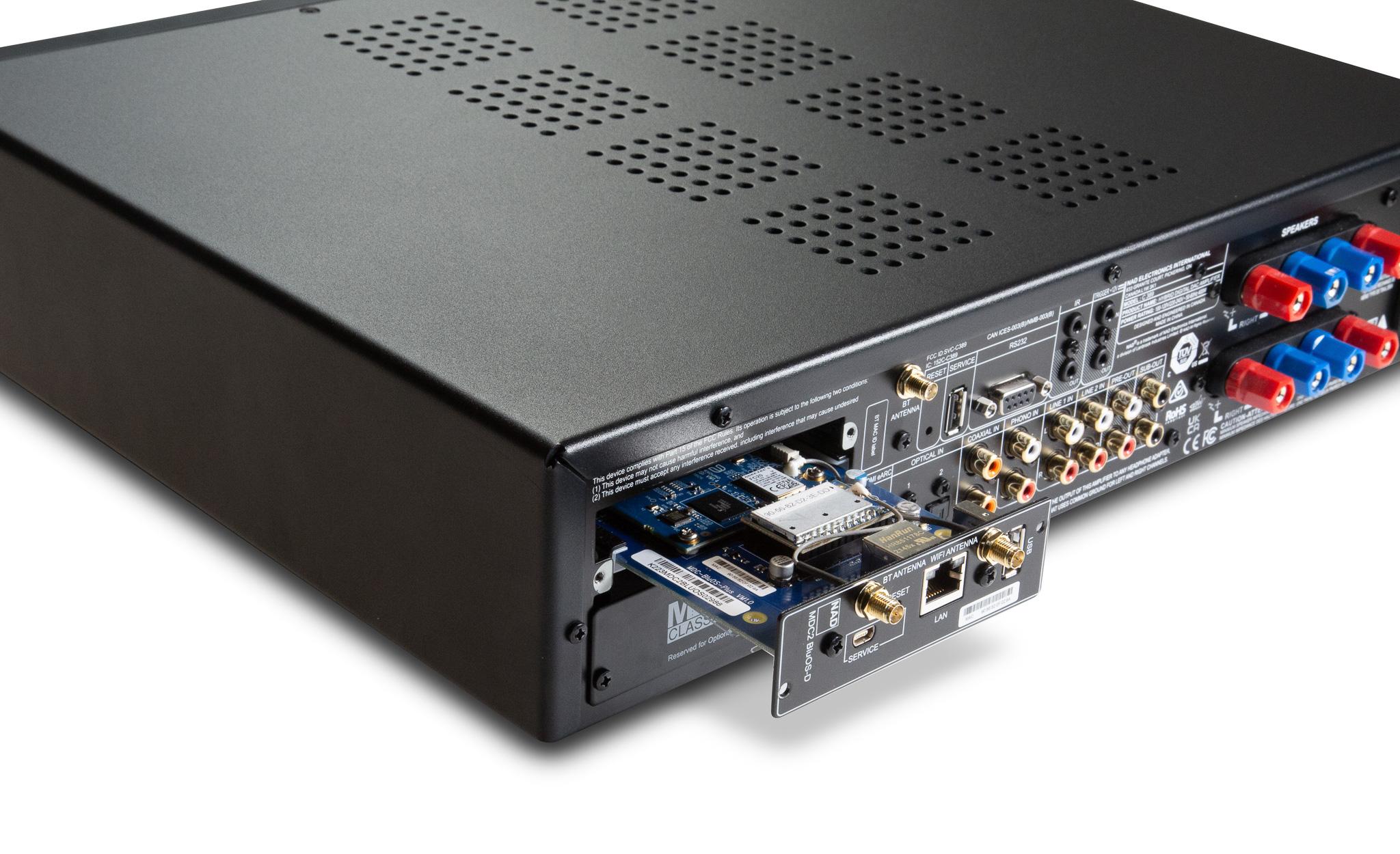

- Optional MDC2 BluOS-D module adds BluOS Hi-Res multi-room music streaming and Dirac Live room correction
- Jitter-free 32-bit/384kHz ESS Sabre 9028 DAC
- Ultra-low-noise MM phono stage with infrasonic filtering circuitry

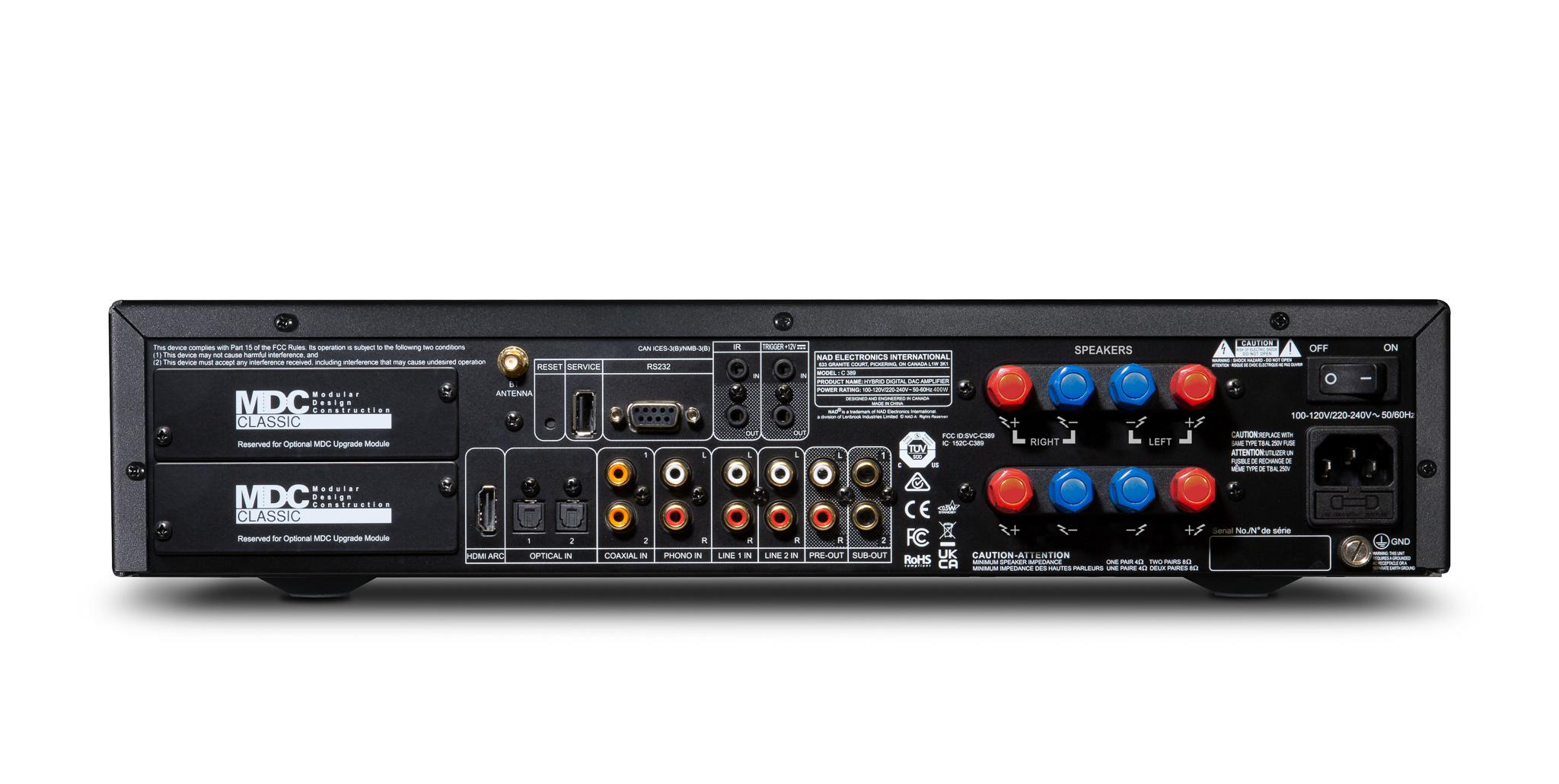

- Two optical, two coaxial digital inputs
- HDMI-eARC input
- Two pairs of line-level analogue inputs with ultra-low-noise buffer amplifiers
- Two sets of speaker outputs
- Two-way Qualcomm aptX HD Bluetooth
- Dual subwoofer outputs
- Dedicated headphone amplifier
- CI-Friendly – IR remote, 12V Trigger in/out, IR in/out, RS-232 Serial port
- Seamless integrations with smarthome control systems such as Control4, Crestron, RTI, URC, Lutron, and Elan
LINE INPUT, PRE-OUT (ANALOG BYPASS ON)
- THD (20Hz – 20kHz)
- <0.002 % at 2 V out
- Signal-to-Noise Ratio
- >106dB (IHF; A-weighted, ref. 500 mV out, unity gain)
- Channel separation
- >100dB (1 kHz); >90 dB (10 kHz)
- Input Impedance (R and C)
- 56 kohms + 100 pF
- Maximum input signal
- >4.6 Vrms (ref. 0.1 % THD)
- Output impedance
- Source Z + 320 ohms
- Input sensitivity
- 65mV (ref. 500 mV out, Volume maximum)
- Frequency response
- ±0.3 dB (20 Hz – 20 kHz)
- Maximum voltage output -IHF load
- >>5 V (ref. 0.1 % THD)
PHONO INPUT, PRE-OUT (ANALOG BYPASS ON)
- THD (20Hz – 20kHz)
- <0.01% at 2 V out
- Signal-to-Noise Ratio
- >84dB (200 ohms source; A-weighted, ref. 500 mV out)
- Input sensitivity
- 46 kohms/100 pF
- Frequency response
- ±0.3 dB (20 Hz – 20 kHz)
- Maximum input signal at 1kHz
- >80 mVrms (ref. 0.1 % THD)
LINE INPUT, HEADPHONE OUT (ANALOG BYPASS ON)
- THD (20Hz – 20kHz)
- <0.005% at 1V out
- Signal-to-Noise Ratio
- >107 dB (32 ohms loads; A-WTD, ref. 1V out, unity gain
- Frequency response
- ±0.3 dB (20 Hz – 20 kHz)
- Channel separation
- >62 dB at 1kHz
- Output impedance
- 2.2 Ohms
LINE IN, SPEAKER OUT (ANALOG BYPASS ON)
- Continuous output power into 8 ohms and 4 ohms
- 2 x 130W
- THD (20 Hz – 20 kHz)
- <0.02% (250 mW to 130 W, 8 ohms and 4 ohms)
- Signal-to-Noise Ratio
- >95 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
- Clipping power
- 150W
- IHF dynamic power
- 210W into 8 ohms
- 300W into 4 ohms
- 350W into 2 ohms
- Peak output current
- >26A (in 1 ohm, 1ms)
- Damping factor
- >150 (ref. 8 ohms, 20Hz to 6.5kHz)
- Frequency response
- >±0.3 dB (20 Hz – 20 kHz)
- Channel separation
- >90dB (1 kHz)
- >75dB (10 kHz)
- Input sensitivity (for 130 W in 8 ohms)
- Line In: 201 mV, Digital In: 10.25% FS
GENERAL SPECIFICATIONS
- Supports bit rate/sample rate
- up to 32 bit/384 kHz
- Frequency band
- 2.402GHz- 2.480GHz
- Maximum transmit power (dBm)
- 7 dBm ± 2 dBm
DIMENSIONS AND WEIGHT
- Gross dimensions (W x H x D)
- 435 x 100 x 390mm (17.1 x 3.9 x 15.4“)
- Net Weight
- 8.7kg (19.1lb)
- Shipping weight
- ~11kg (24.2lb)
