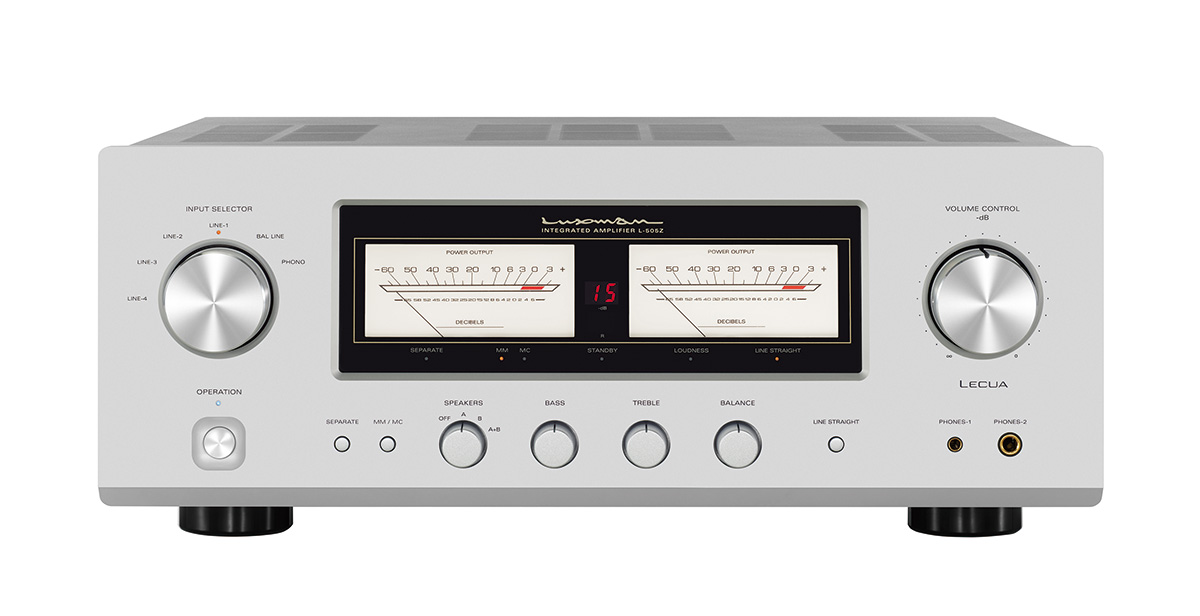

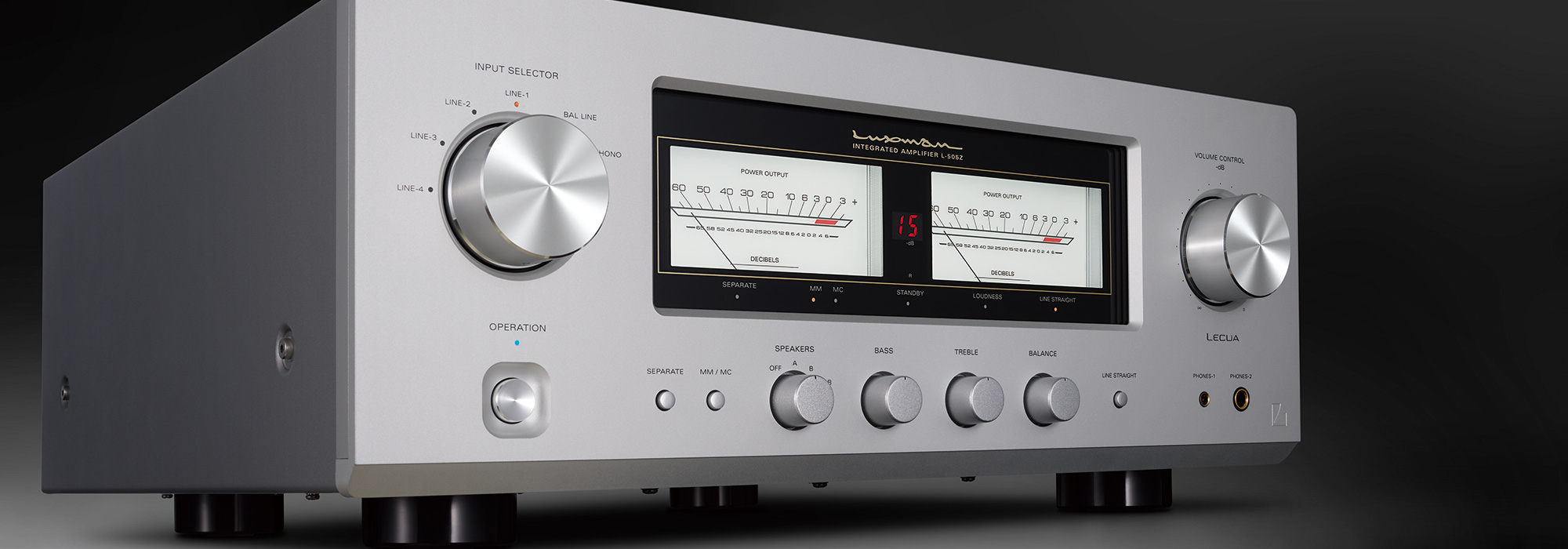

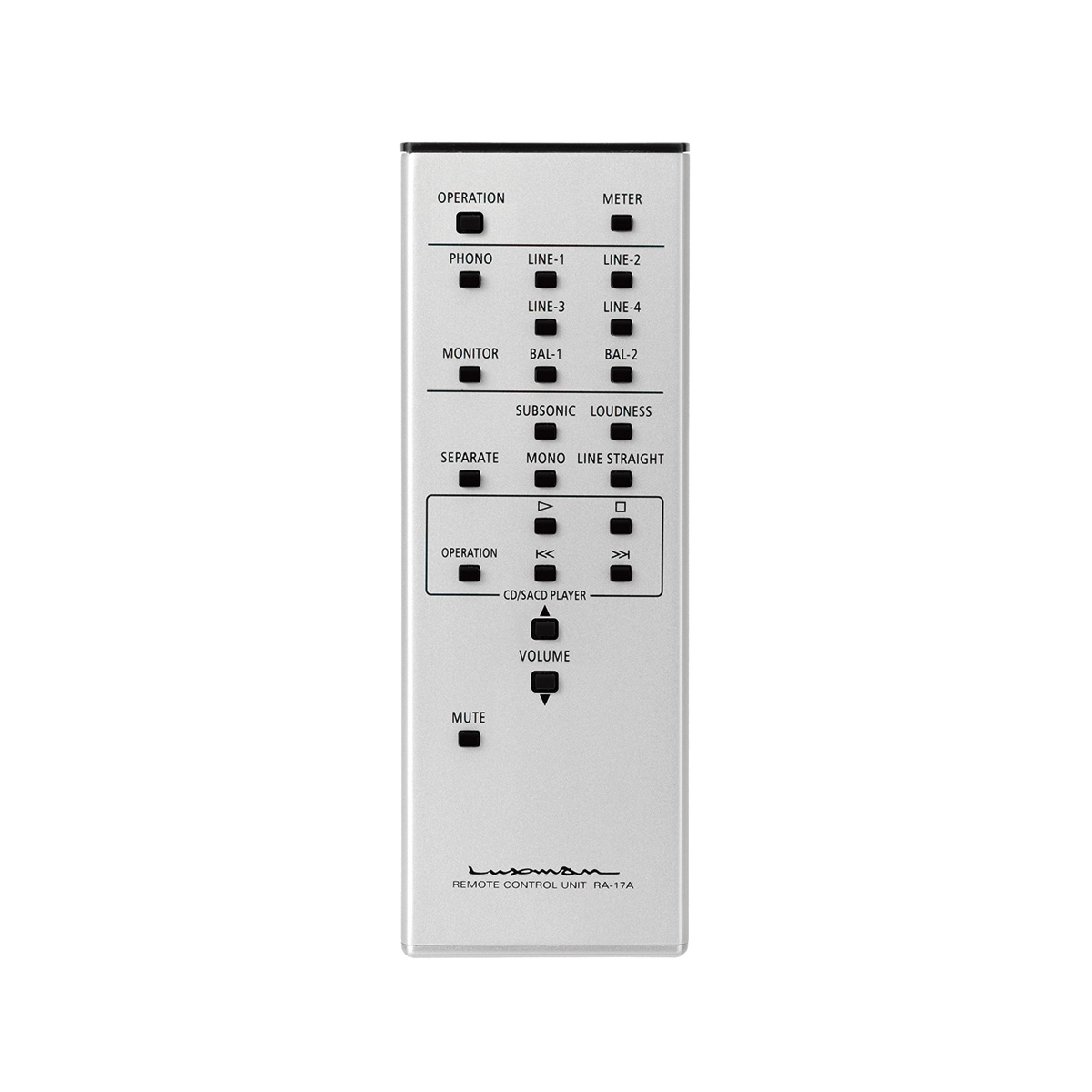

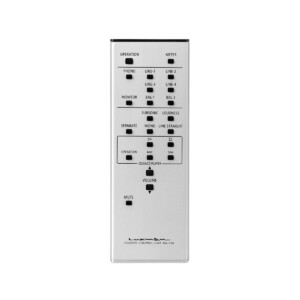

L-505Z on odotettu versio suositusta ja maineikkaasta L-505-vahvistimesta, joka on ollut Luxmanin vahvistinsuunnittelun eturintamassa vuodesta 2011 lähtien. L-505Z sisältää patentoituja teknologioita, kuten LIFES-takaisinkytkentäpiirit sekä erittäin laadukkaan äänenvoimakkuussäätötoteutuksen eli LECUA (Luxman Electronically Controlled Ultimate Attenuator). Viimeistely aitoa Luxman-tasoa. Laadukas MM- ja MC-levysoitinaste. Kuulokevahvistin, balansoitu 4,4mm ja 6,3mm liitäntä etupaneelissa. Kauko-ohjain. Paino 22,5kg. Hopea. Made in Japan

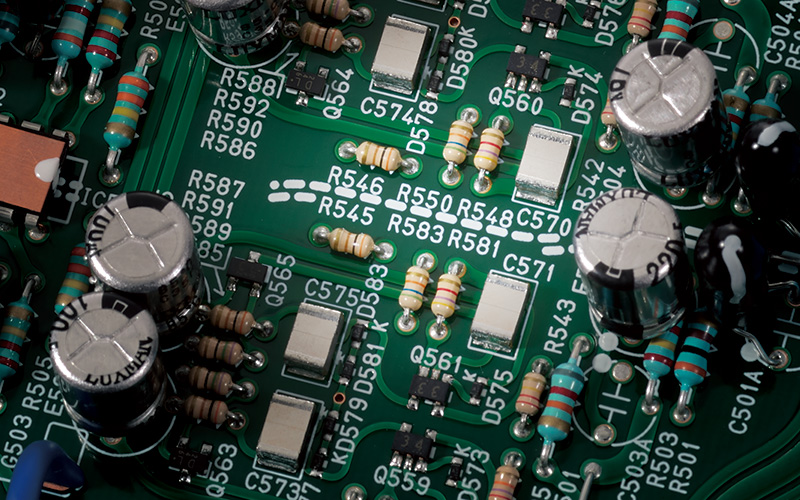

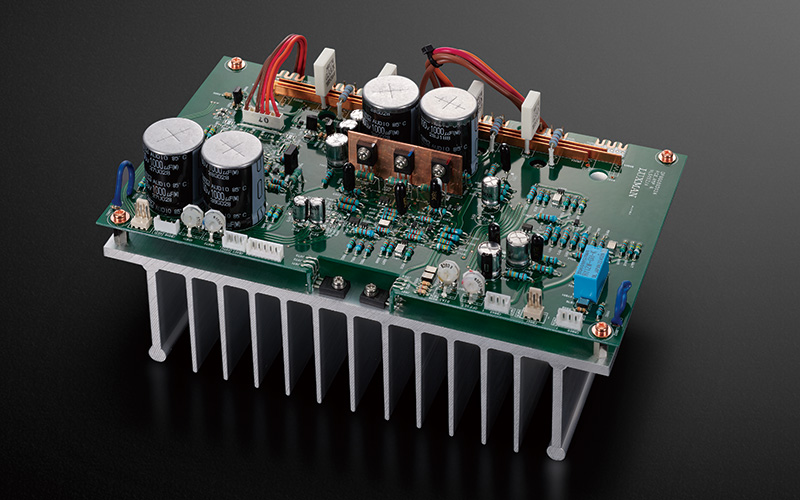

The L-505Z, like the L-509Z and L-507Z, is equipped with our “LIFES” high quality amplification feedback engine, a feature integral to our next generation of amplifier designs. LIFES is based on the technical concept of our revolutionary ODNF feedback circuitry, which achieved excellent static characteristics without feeding back any of the musical input signal to the main amplifier, yielding a natural sound quality more akin to a non-feedback system. The circuit has been redesigned from scratch through multiple simulations. By combining carefully selected components and through repeated listening tests, we have achieved the ultimate performance and sound quality, truly worthy of being adopted for LUXMAN’s next-generation components. In LIFES Version 1.0, the entire circuit has been reconstructed and simplified, improving performance, whilst also successfully reducing the number of parallel elements, reducing distortion during amplification to less than half. The output stage uses a parallel push-pull configuration with bipolar transistor elements, achieving ample Class AB power of 100W+100W (8Ω) and 150W+150W (4Ω).
The volume control section is crucial to both the functionality and performance of an integrated amplifier and requires dedicated signal processing. The L-505Z is equipped with LUXMAN’s original, high-clarity LECUA* electronically controlled attenuator, which has been significantly downsized by adopting a solid-state (IC) circuit configuration. LECUA is an ideal level control system that minimizes variations in audio quality and enables smooth and detailed volume adjustment over 88 steps. The LR balance adjustment control also relies on LECUA’s volume shift function. Despite multitasking, LECUA succeeds in minimizing deterioration of sound quality across the full range of the volume control. Intuitive operability is maintained while linked with operations from the remote control. A traditional rotary volume knob achieves that weighty, tactile response and operational feel enthusiasts will enjoy, combining convenience with pleasing operability.
The concept of a “power amp driver” is fundamental to the design of a preamp section, outputting an energy-rich signal is its ideal state of operation. The L-505Z is equipped with discrete buffer circuitry and high current supply capability at the output of the preamplifier stage, maintaining the fidelity of delicate musical signals whilst significantly enhancing the driving energy and performance of the power amplifier stage. The input selector switch controls a switching IC with excellent separation and low crosstalk. Proudly joining our latest Generation Z series, the L-505Z has achieved a dramatic development in musicality that far surpasses its class. In addition, responding to the reestablishment of vinyl record playback as an important contemporary source, a high-quality MM/MC compatible phono EQ amp circuit with a parallelized first stage is provided to realize supreme analog playback similar to our other high-end components.

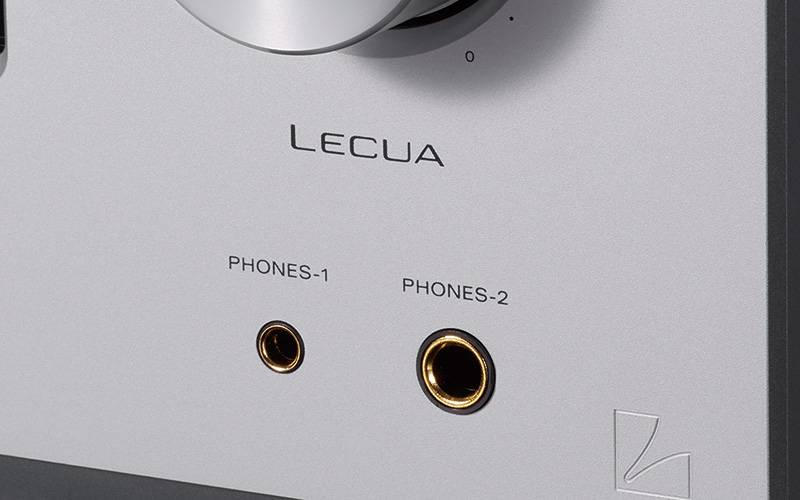

The L-505Z’s high-quality headphone playback functions support the most intimate of listening environments. In addition to a standard φ6.3mm terminal, the L-505Z has a new φ4.4mm terminal with independent left and right ground wiring and separate unbalanced amplifiers, vastly improving left-to-right separation. By connecting compatible headphones and cables, the listener can enjoy further enhanced, three-dimensional, high-quality playback.
